Application

Suitable for drainage of bathrooms and showers, balconies, commercial, courtyard or patio, hospitality and wet areas.

Description

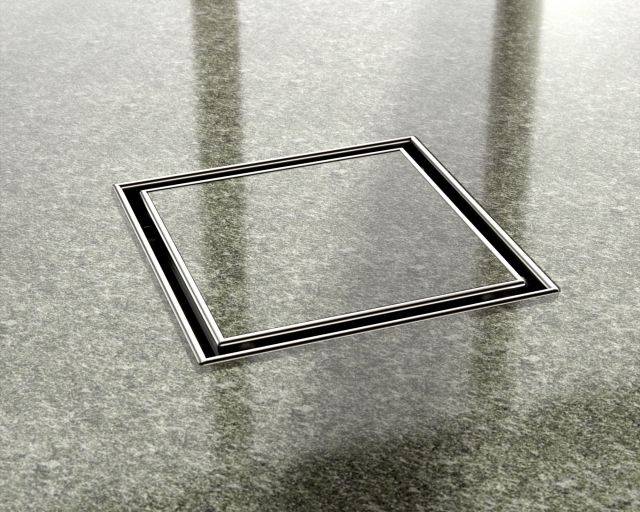

100SQ is a floor gully manufactured from 316 marine grade stainless steel. It allows the integration of a standard floor waste with Stormtech linear drainage. Some of its features include:

  • Available in a range of sizes.
  • Tile Inserts suitable for tiles up to 25 mm thick.

General information

Material

Steel.

Shape

Square

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

NATSPEC National Classification System

0811a Sanitary Fixtures – Floor Drains

0802 Hydraulic Design and Install

0822 Wastewater

SpeedSpec

15150 Floor Drains

SpecPack

15150 Floor Drains

Specification data - Floor gullies

Body

-

Material

316 marine grade stainless steel.

Cover or grating

-

Material

316 marine grade stainless steel.

Finish

Brass electroplated finish.

Bronze electroplated finish.

Copper electroplated finish.

Matte black powder coated finish.

Polished stainless steel electropolished finish.

Satin black powder coated finish.

Stainless steel satin finish.

Manufacturer guidance

Electroplate finishes are subject to natural variation with time and local environment. Factors such as pools or surf beaches may require such. Contact local manufacturer for suitability.

Outlet

38 mm.

44 mm.

76 mm.

Load class (minimum)

DN40.

DN50.

DN80.

Size and profile

103 x 103 mm (Grey designs).

130 x 130 mm (Tile Insert designs).

Channel depth

22 mm.

23 mm.

31 mm.

Grate type

Premium Architectural Grate.

Marc Newson Design Grate.

Punched Angle Grate.

Punched Perpendicular Grate.

Punched Slot Grate.

Show more

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia
