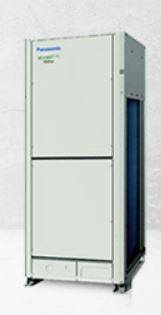

2-Pipe FSVEX - 22.4 kW Outdoor Unit U - 8ME2R8 - Heat pump
Verified by manufacturer over a year ago
Energy-saving 2-Pipe FSVEX Outdoor Heat pump.
Application
Design coupled with all inverter compressors. FSVEX can provide cooling even when outdoor temperature reach 52°C and heating when temperature is as low as -25°C.
System design applications for locations such as:
- Airports.
- Train stations.
- Schools.
- Hospitals.
- Plant rooms.
Suitable application that suits wide array of Panasonic VRF Indoor units.
Description
2-Pipe FSVEX - 22.4 kW Unit U - 8ME2R8 is Panasonic’s outdoor FSV system is designed for energy savings, high durability, and even operation at extreme ambient temperature.
A system design with 1000m length piping provision, 200% diverse connection and with a high external static pressure of 80 Mpa.
Product Features:
- With unique heat exchanger design coupled with all inverter compressors.
- Full load EER and COP.
- 100% Full capacity operation when outside temperature reaches 43°C.
- Reliable operation in Australia's harsh climate.
- Anti-corrosion Blue Fin technology feature.
Model Type:
- High-efficiency combination model.
- Space Saving Combination model.
General information
Color | White |
Size | Manufacturer guidance22.4 kW |
Length | 1000 mm |
Width | 770 mm Guidance for specification option: Depth at 1000 mm. |
Height | 1842 mm |
Warranty description | Five year Guidance for specification option: Full 5 years parts and labour warranty for residential and commercial use. |
Uniclass | |
NATSPEC National Classification System | 0722 Room Air Conditioners 0721 Packaged Air Conditioning 0702 Mechanical Design and Install |
SpecPack | 15782 Air Conditioning - Packaged Units |
SpeedSpec | 15738 Domestic Air-Conditioning |
Specification data - Variable refrigerant flow units
Output cooling | 22.5 kW.Guidance for specification option: 76,500 BTU/h. |
Output heating | 25.0 kW.Guidance for specification option: 85,300 BTU/h. |
System performance | 22.4 kW. |
Height | 1842 mm. |
Width | 770 mm. |
Depth | 1000 mm. |
AirFlowRate | 3,733 L/s. Guidance for specification option: Air volume. |
Control system | Manufacturer guidanceAvailable in flexible control options. To check with the manufacturer for advice on control solution that suits your system requirements. |
Pipes | Manufacturer guidanceAll piping length and sizes are base on allowable distribution range. To check with the manufacturer for details. |
Energy rating | 4.7 W/W. |
Power input | 400 V - 3 Phase. |
Power supply | AC. |
Acoustic performance | 40.0 Silent mode. |
RefrigerantClass | R 32. |
PipeConnection | 6.35 - 19.05 mm. |
Operating temperature range | -10°C - 52°C. |
PowerSource | 400 V - 3 Phase. |
Sustainability data
Country of material origin | Malaysia |
Country of product manufacture | Malaysia |
