Verified by manufacturer over a year ago
Linear drainage for landscaping applications.
Suitable for drainage of balconies, commercial, courtyard or patio, driveways, spa areas, paved areas, areas with special needs and suspended slabs. Ideally suited to wet-edge and infinity pool applications.

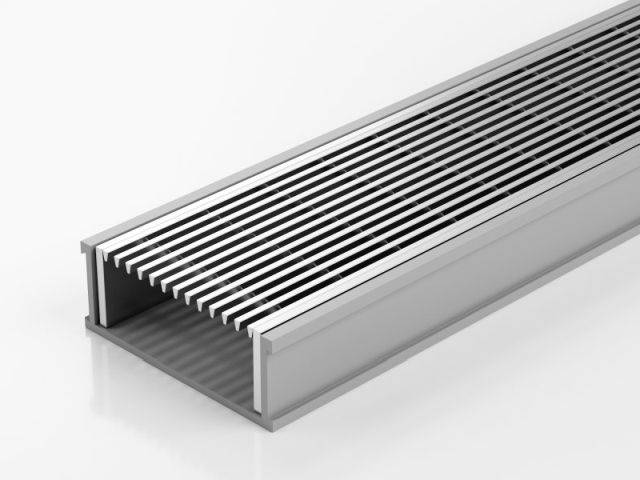

65G100 is a high performance, outdoor drainage with a 100 mm drain pipe assembly connected every 200 mm to an unplasticized polyvinyl chloride (PVC-U) channel. Some of its features include:
Color | Manufacturer guidanceAvailable in a range of powdercoat colours and electroplate finishes. |
Finish | Manufacturer guidanceAvailable in a range of powdercoat colours and electroplate finishes. For added protection against salt and chlorine in marine or pool environments, electropolishing is recommended. |
Material | Plastic with steel grate. |
Shape | Rectangle |
Size | 100 mm drain pipe diameter. Manufacturer guidanceDrain pipe is connected every 200 mm to a 65 mm PVC-U channel. |
Uniclass | |
NATSPEC National Classification System | 0811a Sanitary Fixtures – Floor Drains 0802 Hydraulic Design and Install 0822 Wastewater 0821 Stormwater - Buildings |
SpeedSpec | 02630 Storm Drainage 15150 Floor Drains |
SpecPack | 02630 Storm Drainage 15150 Floor Drains |
Channel | Unplasticized Polyvinylchloride (PVC-U). |
Channel size | 74 mm (width) x 42 mm (depth). Manufacturer guidanceRefers to nominal channel dimensions. Channel is connected to drain pipe via downpipes at 200 mm intervals. |
Length | 3000 mm. |
Upstand height | Manufacturer guidanceUpstand height is adjustable. |
Channel grates | Stainless steel. |
Drainage capacity | 4 L/s/m grate intake rate with 2.5 L/s/m flow rate to pipe. Stormwater flow rate is 10 L/s (4 m) at 1% fall. |
Integral accessories | 65AR40 Architectural Grate. 65PS40 Punched Slot Grate. 65TR40 Standard Grate. |
Colour and finish | Manufacturer guidanceAvailable in a range of powdercoat colours and electroplate finishes. For added protection against salt and chlorine in marine or pool environments, electropolishing is recommended. |
Country of material origin | Australia |
Country of product manufacture | Australia |
