Modular stainless steel drainage kit.
Suitable for drainage of bathrooms and showers, aged or health care, balcony, commercial, courtyard or patio, driveway, pool and spa areas, hospitality, paved areas, multi-residential and areas with special needs.

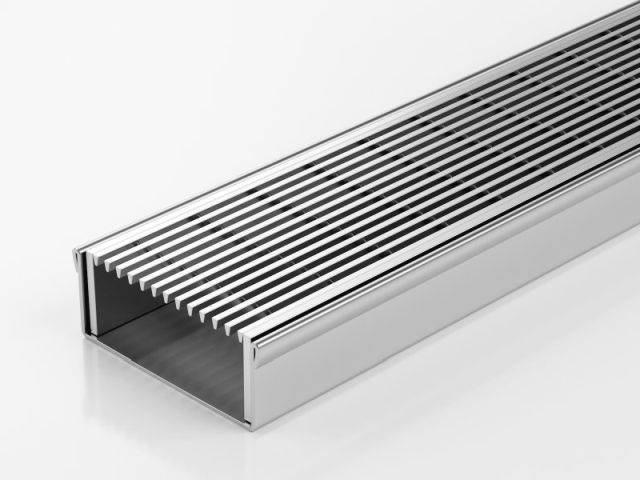

The 65iKit is a modular drainage kit made of 316 marine grade stainless steel grate(s), stainless steel drainage channel and fittings. This kit is to be assembled at the time of installation. Some features of this include:
Material | Steel. |
Shape | Rectangle |
Uniclass | |
NATSPEC National Classification System | 0811a Sanitary Fixtures – Floor Drains 0802 Hydraulic Design and Install 0822 Wastewater 0821 Stormwater - Buildings |
SpeedSpec | 02630 Storm Drainage 15150 Floor Drains |
SpecPack | 02630 Storm Drainage 15150 Floor Drains |
Body | |
Material | 316 marine grade stainless steel. |
Sizes | 72 mm (width) x 27 mm (depth).72 mm (width) x 42 mm (depth). |
Length | 750 mm.900 mm.1000 mm.1200 mm.1500 mm.1800 mm.1900 mm.2000 mm. |
Cover or grating | |
Material | 316 marine grade stainless steel. |
Finish | Brass electroplated finish.Bronze electroplated finish.Copper electroplated finish.Matte black powder coated finish.Polished stainless steel electropolished finish.Satin black powder coated finish.Stainless steel satin finish.Manufacturer guidanceElectroplate finishes are subject to natural variation with time and local environment. Factors such as pools or surf beaches may require such. Contact local manufacturer for suitability. |
Load class (minimum) | DN50. |
Grate type | Architectural Grate. Standard Grate. Tile Insert. Marc Newson Design. Punched Slot. |
Country of material origin | Australia |
Country of product manufacture | Australia |
