AGS 900 series sliding door

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

900 High Performance Sliding and Stacking Door The cutting edge Artisan Architectural 900 Series Sliding Door represents the latest generation of commercial door development.

Jump to:
+61 7 3816 7500 Website

Application

Suitable for residential, commercial and multi-storey apartments.

Description

The cutting edge Artisan Architectural 900 Series Sliding Door represents the latest generation of commercial door development. Specifically designed to deliver unrivalled performance and design flexibility, the Artisan Architectural 900 Series Sliding Door is capable of panel sizes up to 3000mm in height, and 2500mm in width. Multi-stack configurations are available and this product has been tested to meet cyclonic requirements. Incorporating high quality hardware including heavy duty double wheel rollers and various locking options, the Artisan Architectural 900 Series Sliding Door is proving extremely popular on many landmark commercial and residential development projects. For enhanced thermal comfort and performance, both thick and double glazing is possible incorporating insulated glass unit up to 26mm in thickness.

General information

Finish

Anodised or Powder coated.

Material

Aluminium.

Shape

Rectangle

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

NATSPEC National Classification System

0453 Doors and Access Panels

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Sliding door and partition sets

Operation

Manual.

Configurations

Slider.

Stacker.

Biparting.

Cavity.

Corner.

Door panels

Door Height: 3.0m / Door Width: 1.75m Std Rail / 2.5m HD Rail / Weight up to 300kgs.

Frame dimensions

50mm Wide Interlock / 100 & 150 x 44 Sill.

50mm Wide Interlock / 100 & 150 x 50 Sill.

50mm Wide Interlock /100 & 150 x 80 HP Sill.

Manufacturer guidance

For detailed interlock information please contact Capral Spec Team.

Glazing

Single.

Double.

Performance:

Max SLS: 6000pa / ULS: 10500pa / WATER: 700pa.

Standard:

AS2047.

Acoustics

Max Rw 39 (-1C;-3Ctr).

Cyclonic impact testing

Yes

Bushfire attack level (BAL)

BAL 40.

Hardware

Coastal Rollers 300kg panel capacity quad rollers.

Caprio Handle.

Caprice Handle.

D-Lock Handle.

DDA Compliant Handle.

Integral Accessories:

• Aquago SubSill Drain
• Stepped Threshold
• Zeroline Threshold
• Retractable Flyscreens

Accessories:

Trickle Vents.

Security Screen.

Flyscreen.

Bushfire Screen.

Debris impact screen.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Capral Aluminium Door Systems Capral Fabricator Network

Literature

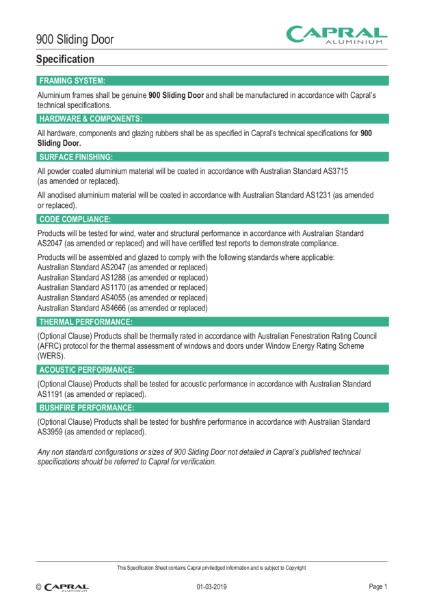

Specification 900 sliding door 1903

Specification 900 sliding door 1903

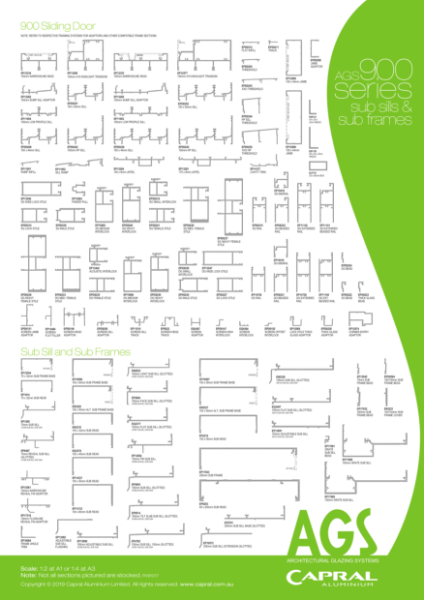

Extrusion Wall Chart AGS 900 Sliding Door

Extrusion Wall Chart AGS 900 Sliding Door

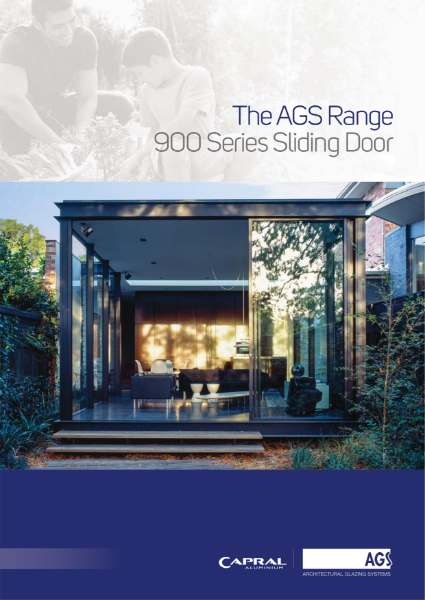

Capral-AGS-900-Sliding-Door Brochure

Capral-AGS-900-Sliding-Door Brochure

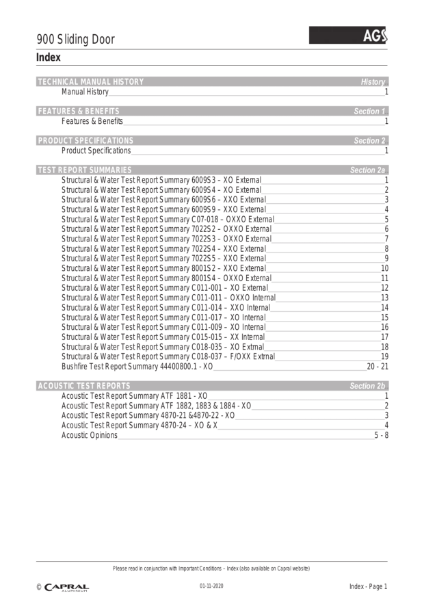

Technical Manual AGS 900 HP sliding Door Capral

Technical Manual AGS 900 HP sliding Door Capral
