ARDEX DS 40
Verified by manufacturer over a year ago
Impact sound reducing acoustic mat.
Application
Suitable for internal applications, such as:
- Renovation and new construction of domestic and commercial areas with loads up to 2 kN/m².
- Decoupling and sound reduction system for the installation of tiles, slabs, natural stone and concrete pavers.
- Domestic bathrooms and wet areas with ARDEX Waterproofing Systems. Not suitable for permanently wet areas, such as public showers.
Contact manufacturer for details on external applications.
Description

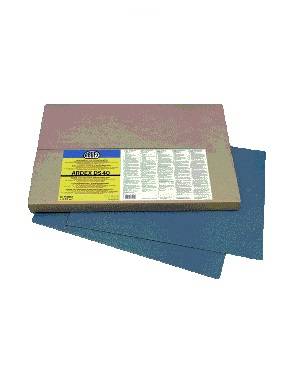

ARDEX DS 40 is an acoustic mat designed to effectively reduce impact sound. Some of its features include:
- Pre-cut mats with simple installation.
- Mat thickness of 4.5 mm to minimise build height.
- Crack bridging function – allows safe installation onto critical substrates.
- Reduction of impact and air-borne sound transmission up to 14 dB.
General information
Color | Green |
Warranty description | Ten years. Manufacturer guidanceSubject to terms and conditions. Contact manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0632b Stone Tiling 0275 Paving - Mortar and Adhesive Bed 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling 0276 Paving – Sand Bed |
SpecPack | 02780 Unit Pavers 09400 Terrazzo 09630 Stone Flooring and Wall Panels 09300 Ceramic Tiling |
SpeedSpec | 02780 Unit Pavers 09630 Stone Flooring and Wall Panels 09300 Ceramic Tiling |
Specification data - Stabilizing underlays
Material | Mineral fillers and PU binders. |
Thickness | 4.5 mm. |
Panel size | 750 x 500 mm. Manufacturer guidanceAvailable in cartons of ten and pallets of 300 mats. |
Colour | Green. |
Impact sound reduction (to BS EN 140-8) | 14 dB. Manufacturer guidanceUp to 18 dB when used with ARDEX X56 adhesive. |
FireRating | B2 if mat only, B1 with tile. |
ThermalConductivity | 0.11 W/mK. |
Substrates | Concrete and cement render and screeds. Heated screeds. Wooden floors and wooden particle board. Existing tiles and slabs. Compressed fibre-cement sheets. |
Volatile organic compounds (VOC) content | 10 g/L. |
Sustainability data
Contains Red List materials | Yes |
Country of product manufacture | Australia |
Literature
ARDEX DS 40
