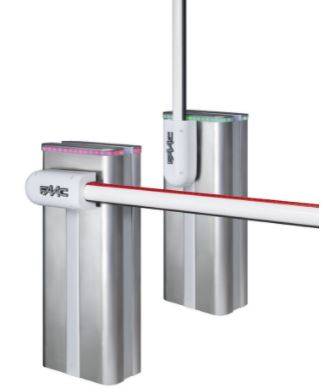

B680H Automatic Hybrid Barrier
Verified by manufacturer over a year ago
Automatic 24V Hybrid Barrier.
Application
- Designed for continuous and frequent use.
- For residential, condominium, industrial automation solutions, pedestrian and vehicle access control.
Description
- 2,000,000 cycles thanks to the Brushless + Hydraulic motor and “unlimited” springs.
- Removable cabinet available in 4 colours or stainless steel.
- High logistic optimization: a single barrier model suitable for all lengths.
- The automated system consists of a white aluminium beam with reflectors, optional signaling lights, a covering compartment and steel upright profile.
General information
Color | Manufacturer guidanceCabinet compartment available in the following colours:
|
Finish | 100 micron protective primer + polyester painting or stainless steel cabinet. |
Material | Steel. |
Length | 469 mm |
Width | 279 mm |
Height | 1100 mm |
Uniclass | |
NATSPEC National Classification System | 0261b Landscape – Parking and Traffic Control 0191 Sundry Items 0242 Landscape - Fences and Barriers 0261 Landscape – Furniture and Fixtures 0552 Metalwork - Fabricated |
SpecPack | 05500 Metalwork |
Specification data - Rising arm vehicular barriers
Accessories | Pocket for round pivoting beams.Connecting kit for round S-profile beam (maximum of 2 m).Integrated flashing traffic light.Skirt kit, length 2 or 3 m for round S/L profile beams.End foot for round S/L profile beams.XBAT 24 emergency battery kit.Anti-vandalism valve for the B680H.Anti-panic group.Beam break-out sensor for pivoting beams. |
Power supply | Switching: 100 ÷ 240V~ 50/60 Hz. |
Beams | Pocket and balancing spring S. Guidance for specification option: Up to 5 m passage width. Pocket and balancing spring L. Guidance for specification option: From 5 m up to 8 m passage width. Manufacturer guidanceRound beams: whole and modular. |
Motor | Brushless 36V electric motor. |
Power | Maximum 240 W. |
Weight | 85 Kg (65 Kg pillar + 20 Kg cabinet). |
Cabinets | Flame-red RAL 3020. Steel blue RAL 5011. Pure white RAL 9010. Aluminum Grey RAL 9006. Stainless steel cabinet. Manufacturer guidance100 micron protective primer + polyester painting (red, blue, white & grey). |
Dimensions | 469 l x 279 w x 1100 h (mm). Manufacturer guidanceCabinet dimensions |
Type | Pivoting round beam. |
Beam length | 2000-8000 mm. |
Equipment | Electronic equipment: E680. |
Sustainability data
Country of material origin | Italy |
Country of product manufacture | Italy |
