Baby Change Station Stainless Steel Clad Vertical

Name: Baby Change Station Stainless Steel Clad Vertical
Brand: ASI JD MacDonald Pty Ltd
SKU: gAGzMdQwe2DkzH6sx7XzFw

Verified by manufacturer over a year ago

Recessed

ASI JD MacDonald Pty Ltd

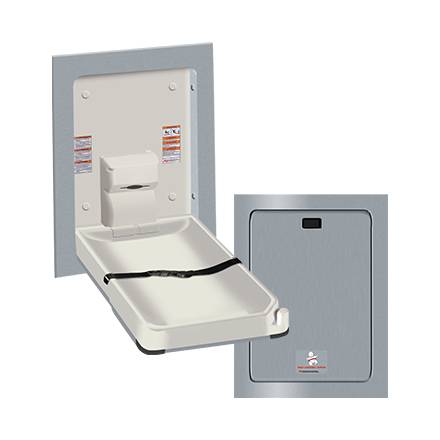

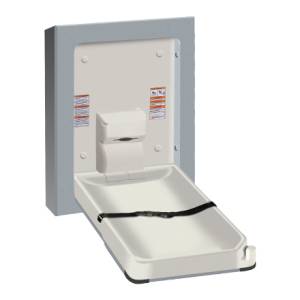

Vertical, stainless steel clad baby change station.

Jump to:

1800 023 441 Website

Application

Suitable for washrooms that require recess or surface mount baby change stations.

Description

Baby Change Station Stainless Steel Clad Vertical is a vertical, recess or surface mount baby change station made with high-density polyethylene (PE-HD) and stainless steel. It is designed to support a static load up to 136.1 kg. Some of its features include:

Concealed damped gas spring mechanism.
Completely sealed components (no penetration zones to harbor microbes).
Hygienic protection safety strap and cam-buckle, adjustable with one hand.
Built in bed-liner, convertible into a paper towel dispenser and bag hook.
Recyclable at end of usable life.

General information

Shape	Rectangle
Warranty description	Five years. Guidance for specification option: From date of purchase. Manufacturer guidance Subject to being installed and maintained in accordance with the Installation and Operating Instructions supplied with the unit.

Uniclass	Pr_40_20_76_06 Baby changing unitsPrimary
SpeedSpec	05580 Architectural Metalwork and Whitegoods
NATSPEC National Classification System	0811 Sanitary Fixtures 0572 Miscellaneous Furniture
SpecPack	05500 Metalwork

Specification data - Baby changing units

Form	Vertical wall-mounted; fold down.
Material	High-density polyethylene (PE-HD) body with stainless steel door facing and trim.
Finish and colour	Satin.
Size (nominal)	718 mm (width) x 994 mm (height) x 99 mm (depth). Guidance for specification option: Installed, closed position: 718 mm (width) x 994 mm (height) x 10 mm (depth). Manufacturer guidance Refers to product overall dimensions.
Integral accessories	Box of 500 liners. Guidance for specification option: Part number: LCR. Replacement strap. Guidance for specification option: Part number: 10-9014-14159.

Projection	747 mm. Manufacturer guidance Distance from wall surface in open position.
Load (maximum)	136.1 kg (static load).
Installation	Recessed.
Opening	622 mm (width) x 902 mm (height) x 102 mm (depth). Manufacturer guidance Refers to minimum Rough Wall Opening (RWO).
Model	10-9017.
