CBR2-SG bike rack
Verified by manufacturer over a year ago
QA Certificate
Certificate type
Ground-mounted bike rack.
Application
Bicycle rack.
Description

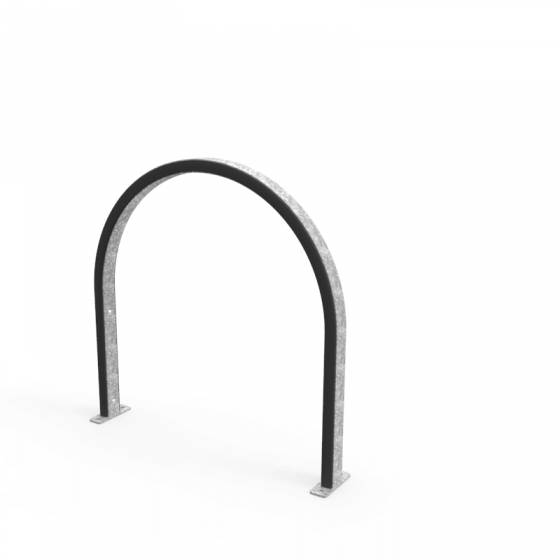

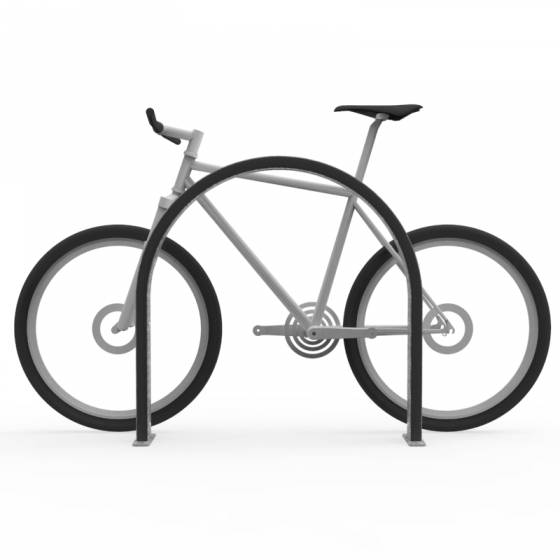

CBR2-SG is a premium bike rail design with an integrated protective bumper. Designed to support the entire bike frame, each unit can accommodate up to two bikes, with one bike on each side.
General information
Color | Manufacturer guidanceAvailable in galvanized, stainless steel and any standard Cora colour (powder-coated finish). |
Finish | Powder-coated, Galvanized or Stainless steel with brush finish. |
Material | Heavy duty high quality steel or 304 Stainless steel. |
Size | Manufacturer guidance850 x 850 x 850 mm. |
Warranty description | Five years. Manufacturer guidanceMaterial and workmanship warranty. |
Uniclass | |
NATSPEC National Classification System | 0261a Landscape – External Urban Items 0261 Landscape – Furniture and Fixtures |
SpecPack | 02870 Unit Pavers |
Specification data - Ground-mounted cycle stands
Standard | To AS 2890.3:2015.Manufacturer guidanceRemove this item if AS 2890.3 compliance is not required. |
Material | Carbon steel.Stainless steel, grade 304.Durable polymer bumper insert.Manufacturer guidanceGalvanized steel is standard. 304 stainless and powder coat carbon steel are available as options. |
Form | Surface-mounted arch. |
Dimensions | |
Width | 850 mm. |
Length | 850 mm. |
Above-ground height | 850 mm. |
Finish | |
Coating | Galvanized.Powder-coated.Manufacturer guidanceWhere Stainless steel is specified, remove this item. |
Colour | Yellow.Blue.Red.Green.Black.Grey.Manufacturer guidanceApplicable for powder-coated finish only. Select from standard colour range. |
Fixings | 4 x M10 x 80 mm stainless steel anchor bolts with tamper-resistant fasteners, 150 mm x 6 mm round base plate. |
Supply | Fully welded and assembled. |
Green Certification | Green Star, Eco-specifier global verified. |
Third party certifications
Literature
CBR2 SG
CBR2 Brochure
CBR SG
