Ceiling Mounted Ventilation Fan with Sensor - Ventilation fan.
Verified by manufacturer over a year ago
Smart, lightweight and compact ceiling mounted ventilation fan with motion sensor.
Application
- Suitable application for tight ceiling spaces.
- Automatically maintains constant air volume within fan operating limits to suit varying external static pressure.
- Ideal for Bathrooms, Laundries and other wet areas.
Description
A slim profile, lightweight, compact extraction fans with sensor. Some of its significant features include:
- Easy to install.
- Intelligent motion sensor.
- Built-in / Run on timer.
- Constant Airflow volume.
- 24-hour ventilation setting to avoid mould and damp issues.
- Quiet operation and low noise.
- Energy-saving DC Motor.
- Super quiet with noise level at only 36.5 dB(A) at 1m on high speed.
- NCC Compliant
General information
Color | White |
Finish | Smooth |
Size | Manufacturer guidance9.3 W. |
Length | 230 mm |
Width | 230 mm |
Height | 100 mm |
Warranty description | Three year |
Uniclass | |
SpecPack | 10150 Toilet Compartments 15810 Air Distribution Ductwork |
SpeedSpec | 10150 Toilet and Similar Compartments |
NATSPEC National Classification System | 0731 Fans 0702 Mechanical Design and Install |
Specification data - Domestic fan units
Mounting | Ceiling. |
Integral accessories | Power cord.Built-in motion sensor. |
Product code | FV-24JR3. |

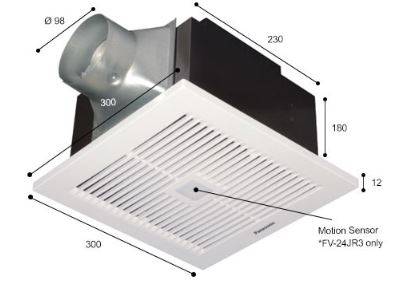

Dimensions | 230 x 230 mm. |
Net weight | 3.0 kg. |
Cover depth | 12 mm. Guidance for specification option: Body depth at 180 mm. |
Airflow ventilation | 44 L/s. Guidance for specification option: Air volume. |
Sensors | With sensor. |
System performance | 44 L/s. |
Energy rating | 9.3 W. |
Power input | 240 V. |
Power supply | DC (Single Phase / 50 Hz). |
Acoustic performance | 36.5 dBA. |
Controller | Wall controller. |
PowerSource | 240 V. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
