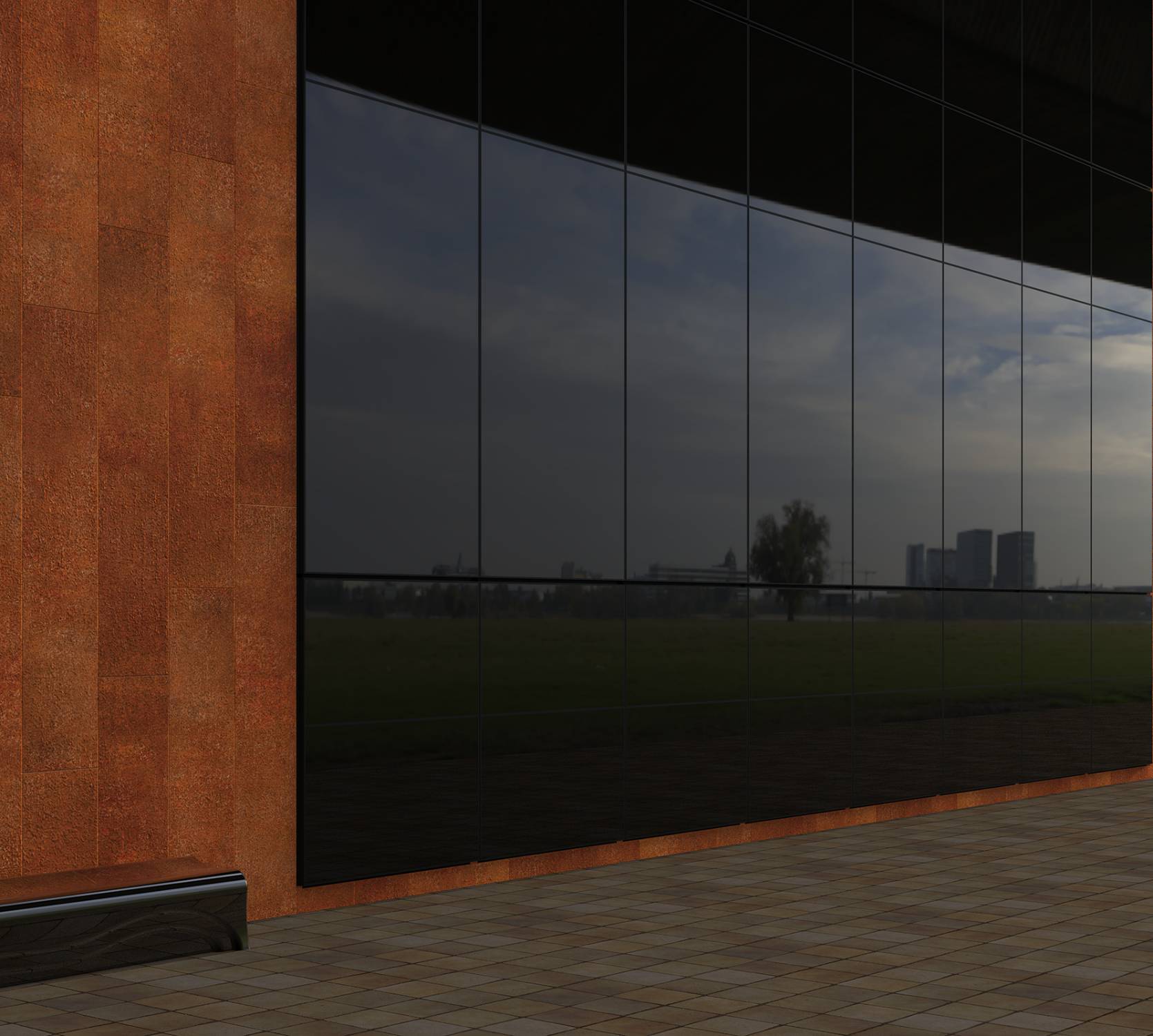

CW116 Curtain wall

Verified by manufacturer 5 months ago

Capral Aluminium

The Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system that is suitable for small to mid-sized projects.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial building curtain walls.

Description

Tested to the requirements of AS4284, this system is ideally positioned in the market for use in small to mid-sized projects. Reaching up to 10 stories high in standard applications, it may be capable of even greater heights depending on project design and wind load pressures.

A key feature of the CW116 Curtain Wall is the inclusion of tested building and mullion brackets, allowing the CW116 to be installed as a fully tested system without having to independently engineer brackets for each project.

Another key feature is the ability to integrate sun-shading directly into the frame without sacrificing structural or water performance. Coupled with both double and single glazed capabilities this curtain wall is the ideal aluminum glazing system for your next project.

General information

Color

-

Manufacturer guidance

Can be selected from the standard ranges of finished from Interpon and Dulux.

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

2300 mm

Height

4200 mm

Warranty description

-

Manufacturer guidance

Supplied by the window fabricator.

Uniclass

Ss_25_10_20_90 Unitized curtain walling systemsPrimary

NATSPEC National Classification System

0432 Curtain Walls

SpecPack

08900 Glazed Curtain Walls

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Unitized curtain walling systems

System performance

System tested to AS4284: 2008

Framing

-

Framing members

Aluminium curtain wall frame sections

Manufacturer guidance

The maximum allowable stack joint movement in the vertical orientation has been designed at 25mm (+10mm), and the maximum allowable Split Mullion movement in the horizontal direction has been designed at 10mm (+5mm) it is the responsibility of the building designer to ensure that this movement allowance is not exceeded.

Fasteners

-

Manufacturer guidance

Fixing of the Building Bracket to the building will need to be designed, assessed and verified by a suitably qualified engineer.

Cladding units

-

Glass units

Single glazed

Double glazed

Manufacturer guidance

See product literature for full details

Panels and facings

-

Thermal insulation

-

Manufacturer guidance

U value range: 2.7 - 3.8 W/m2K dependent on design build up.

System accessories

-

Manufacturer guidance

Independently engineered fins/louvres/shading devices to be attached to an optional 6mm 5083 Aluminium Bracket Plate 450 x 400mm (length as required).

Frame dimensions

116mm x 65mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a Panel Height of 4.2m, Panel Width of 2.3m and weight of 190kgs.

Performance:

Max SLS: 1600pa / ULS: 4500pa / WATER: 600pa Static & 1200pa Cyclic.

Cyclonic impact testing

No

Integral accessories

Mullion brackets for external shading.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Self declared

Recyclability

100 recyclable.

Manufacturer guidance

Aluminium is fully recyclable.

Literature

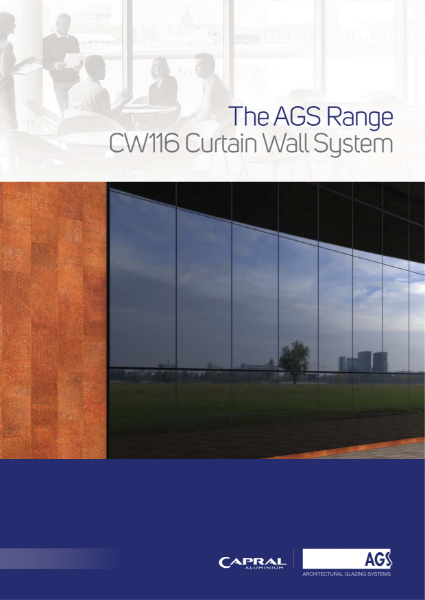

Capral-CW116 Brochure_May2020

Capral-CW116 Brochure_May2020

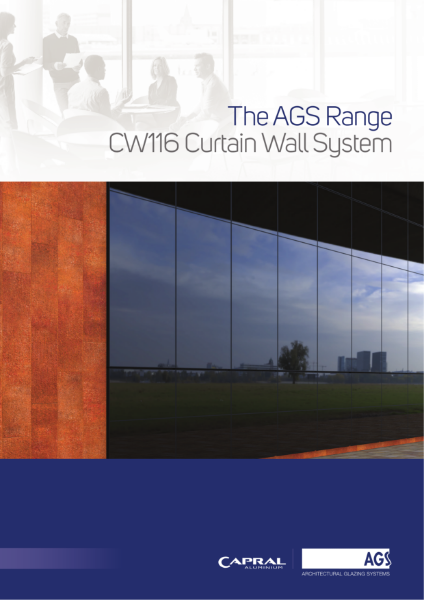

AGS CW116 Technical Data Manual 2107

AGS CW116 Technical Data Manual 2107
