EasyMech CR
Verified by manufacturer over a year ago

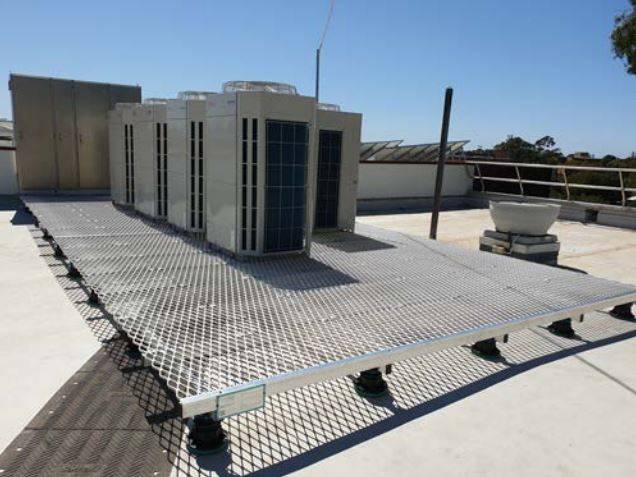

HVAC plant platforms for concrete roofs.
Application
Perfect for a range of industrial applications:
- Large condensers.
- Packaged air-conditioning units.
- Other mechanical plant equipment.
Description
The EasyMechCR HVAC plant platforms are modular, lightweight & simple in design. Unique design distributes your load evenly, reducing the structural requirements of the roof.
Features and benefits include:
- Protects your roof membrane from damage.
- Reduces noise transmission into your building by reducing machine vibration.
- Eliminates the need for costly fixed concrete form-work, allowing greater roof-top positioning flexibility.
- Provides clean lines and a smooth low profile finish.
- Unique design distributes your load evenly — reducing the structural requirements of the roof.
- Reduce your ductwork by placing air-conditioning units directly above internal units.
- Easy assembly.
- The system remains flexible during and after project design.
- Architectural and acoustic screens can be mounted directly to the platform.
Roof Connection

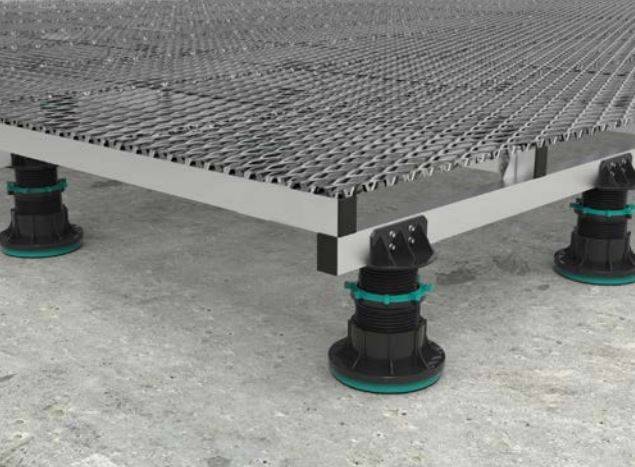

Platform connected by EasyFoot CR:
- Engineer Certified.
- 100mm height adjustable to accommodate for roof drainage, slopes & pitch).
- Each foot is rated to 1000kgs.
- Made from High-Density Polyethylene (HDPE), compound.
- Each foot weighs 706g.
- Can be secured to roof if required.
General information
Color | Silver |
Finish | Mill |
Material | Aluminium |
Shape | Rectangle Square Other |
Size | Manufacturer guidanceAlso available in increment sizes to suit your needs. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: All components are backed by a 25-year warranty. |
Uniclass | |
NATSPEC National Classification System | 0552 Metalwork - Fabricated 0191 Sundry Items |
SpecPack | 15782 Air Conditioning - Packaged Units 05500 Metalwork |
Specification data - Light steel-framed floor systems
System performance | Structural performance. |
Subfloor | |
Fixings | 35 mm Tekscrew + hold down disc.20 mm Tekscrews.16 mm Tekscrews. |
Bracing | Tension or compression bracing products.Guidance for specification option: Full, Half, and Quarter Star brace. |
Connections | |
Connectors | EasyFoot CR.Guidance for specification option: 100mm height adjustable (to accommodate for roof drainage, slopes and pitch). |
Standard | To AS 1170.1, AS 1170.2, AS 1657 and AS 1664.1. Guidance for specification option: The following review has been carried out in accordance with the following SAI Codes of Practice:
|
Size | 600 mm. |
Live load rating | 2.5 kPa. 5 kPa. Manufacturer guidanceAlso available in greater live loads. Check manufacturers for options. |
Wind loads | V500 = 45m/s. Guidance for specification option: Region A - Tc 2.5. V500 = 57m/s. Guidance for specification option: Region B - Tc 2.5. Manufacturer guidanceCon-form products have been certified for wind regions A, B, and C. |
Spacing | 1200 mm. 900 mm. Manufacturer guidanceTypical wedge spacings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100 |
