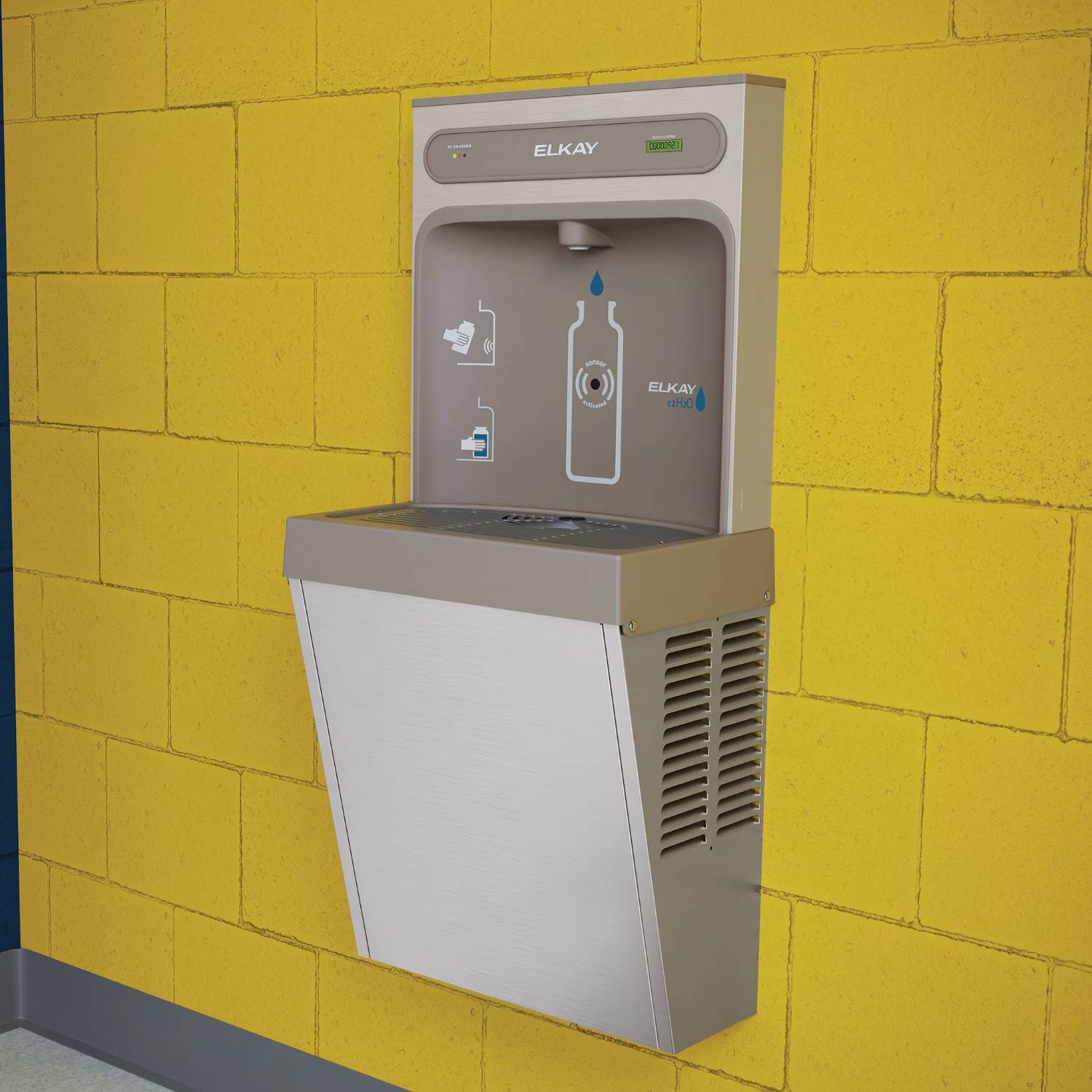

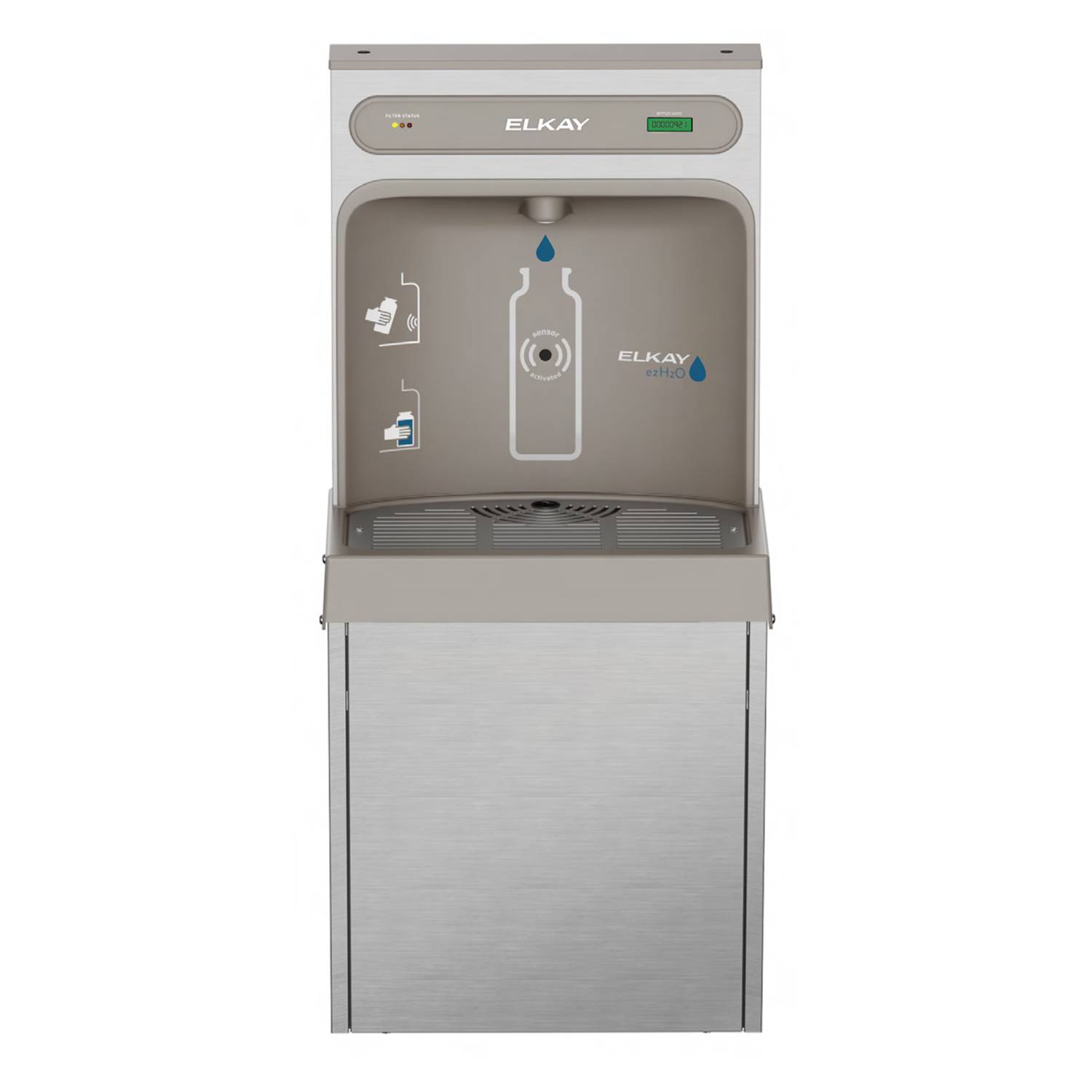

Elkay® EZH2O® Surface Mount Bottle Filling Station (Refrigerated)
Verified by manufacturer over a year ago
Surface mount, sensor-activated bottle filling station.
Application
Suitable for indoor public environments.
Description
Elkay® EZH2O® Surface Mount Bottle Filling Station is a compact, surface mount stainless steel water station with a hands-free, auto-sensor operation. Some of its features include:
- Refrigerated filtered water.
- Touchless, sensor activation.
- Quick fill rate.
- Disability-friendly design.
- WaterSentry Plus filtration with visual LED filter replacement monitor.
- Green Ticker that counts the number of bottles saved from waste.
- Compatible with Aquafil Remote Chiller Unit.
- WaterMark™ certified.
General information
Material | Stainless steel. |
Size | 454.2 x 307.8 x 1047.8 mm. |
Warranty description | Five years. Manufacturer guidanceRefer to Elkay® Product Warranty for full terms and conditions. |
Uniclass | |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
SpecPack | 10340 External Urban Items |
NATSPEC National Classification System | 0815 Drinking Water Dispensers |
Specification data - Water coolers
Standards | To AS/NZS 4020. |
Certification | WaterMark™. |
Dimensions | 454.2 x 307.8 x 1047.8 mm. |
Material and finish | Stainless steel. |
Activation | Automatic. Guidance for specification option: With 20-second shut off. |
Water supply | Refrigerated. |
Flow rate (maximum) | 25 L/h. Manufacturer guidanceRefers to chilled fill rate. |
Filter | Filtered. Guidance for specification option: As standard. Manufacturer guidanceA suitable filter shall be recommended based on installation location. Contact manufacturer for details. |
Power | 220 V a.c., 50 Hz. |
Installation | Surface-mounted (on wall). |
Accessible design | To AS 1428.2. |
Sustainability data
Country of product manufacture | United States |
Literature

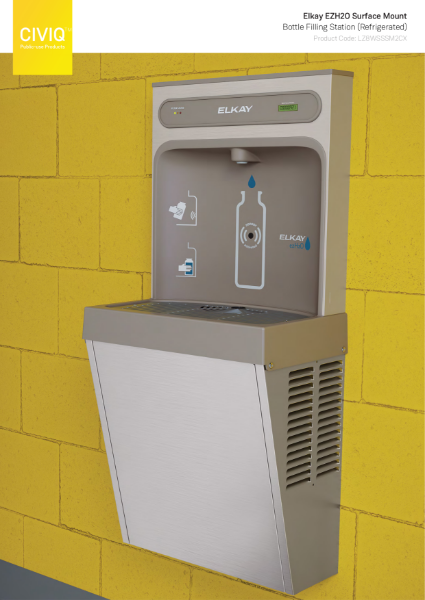

Elkay® EZH2O® Surface Mount Bottle Filling Station
Civiq Filters
Elkay® Product Warranty
Aquafil Remote Chiller Unit Specification
Civiq Aquafil Remote Chiller Housing
