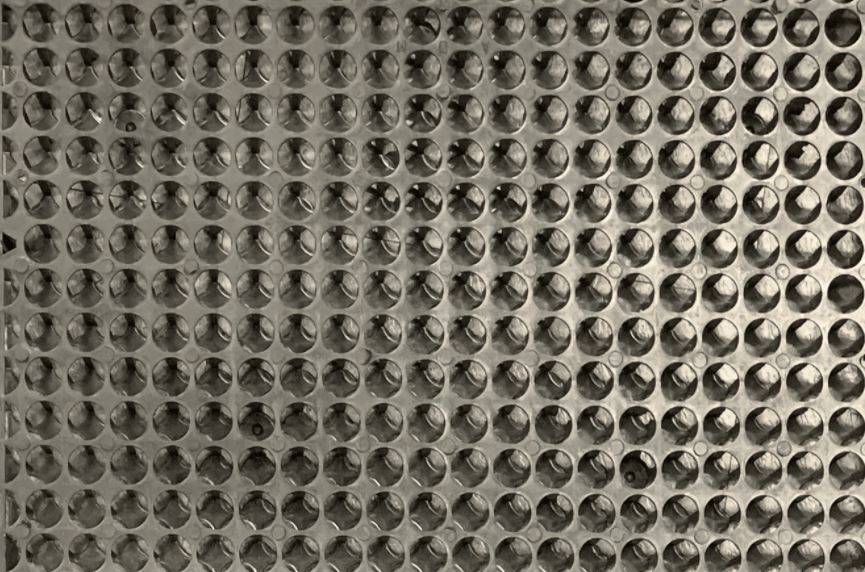

Extra Duty 30 mm Hexcell Drainage Cell
Verified by manufacturer over a year ago
Creates a permanent, non-clogging void between the concrete slab and the soil profile that will not collapse or distort.
Application
Suitable for use in areas such as:
- Planter boxes.
- Roof gardens.
- Podiums.
- Landscape projects.
- Retaining walls.
- Civil works.
- Sports fields.
- Under slab drainage.
Description
Ausdrain Drainage Cell's 30 mm void enables a direct flow of water to designated outlets avoiding the risk of water build-up and penetration. The large surface and capacity void space enables superior drainage efficiency compared to the small voids created by using a gravel system. Some of its features and benefits include:
- Has anti-slip design and unique dovetail clipping system.
- High compressive strength and easy to handle and quick to install.
- Open structure, durable, lightweight, supplied in large panels.
- Multi-directional installation and reduces movement.
- Trafficable and high flow rate.
- Has a long life expectancy and environment-friendly.
- Chemical and bacteria resistant.
General information
Uniclass | |
NATSPEC National Classification System | 0411 Waterproofing – External and Tanking |
SpeedSpec | 07130 Waterproofing and Tanking |
SpecPack | 07130 Waterproofing and Tanking |
Specification data - Polypropylene geocell boards
Material | Polypropylene. |
Recycled content (minimum) | 100%. |
Flow rate | >14,400 L/H/m2. |
Compressive strength | 80 t/m2 . |
Height | 30 mm. |
Length | 600 mm. |
Width | 600 mm. |
CompressiveStrength | 80 t/m². |
Sustainability data
Country of product manufacture | Australia |
Literature
30mm HexCell Drainage Cell Product Brochure
30mm HexCell Drainage Cell Technical Data Sheet
