Fire-Rated Multi-Service Block®

Verified by manufacturer over a year ago

TBA Firefly

Fire-stopping a huge range of multiple service penetrations.

Jump to:
+61754114209 Website

Application

Suitable for a wide range of 60 minute fire rating wall substrates.

Description

TBA Firefly™ FR Multi-Service Block® may be fitted to various panels including Speedpanel, Fire Grade Plasterboard lined the wall, INEX Wallboard lined the wall, TBA Firefly™ Intubatt® Penetration Seal, solid and hollow masonry, Brickworks Prontopanel, Hebel Prontopanel, Hebel Powerpanel, Binderholz CLT wall, XLAM CLT wall, Stonewall Platinum FR60 Wall System.

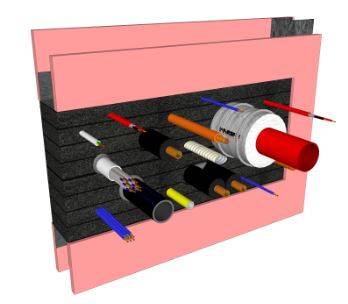

  • The TBA Firefly™ FR Multi-Service Block® will accept various cables, plastic and metal pipes.
  • Refer to the referenced assessment report for a full description of the assessed construction and performance claims.
  • Tested in Accordance with AS 1530.4-2014 and Assessed in Accordance with AS4072.1-2005.

General information

Warranty description

25 year

Uniclass

Pr_65_52_61_86 Surface-mounted intumescent pipe collarsPrimary

NATSPEC National Classification System

0182 Fire-Stopping

SpeedSpec

07810 Fireproofing

SpecPack

07810 Fireproofing

Specification data - Surface-mounted intumescent pipe collars

Sizes

500 w x 200 h (mm).

1000 w x 100 h (mm).

Manufacturer guidance

Horizontal, vertical and diagonal spacing between the services must be a minimum of 40 mm service exclusion zone. Consult manufacturer for details.

Fire resistance level

-

Standard

To AS 1530.4 and AS 4072.1.

Value

-/60/60.

Certification

CSIRO RIR FCO-3228.

Execution

Speedpanel FR.

Hebel powerpanel FR.

Brickworks pronto panel FR.

Substrates

Speedpanel.

Guidance for specification option:

51 mm width.

Fire Grade Plasterboard lined wall.

Guidance for specification option:

90 mm width.

INEX Wallboard.

Guidance for specification option:

162 mm width.

TBA Intubatt Penetration Seal.

Guidance for specification option:

50 mm width.

TBA Firefly Intubatt 2 Layers of 50mm.

Guidance for specification option:

100 mm width.

Show more

Integral services

Electrical.

Mechanical.

Hydraulic.

Wet fire.

Security.
