Futureline Hinged Door

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

Thermally broken hinged door

Jump to:
+61 7 3816 7500 Website

Application

Residential and commercial applications.

Description

The Futureline Hinged Door system integrates seamlessly into the Futureline framing system to provide a high quality, thermally broken hinged door option. The 46mm door panel has been designed with clean, flat faces and a choice of standard or tall door rail options for added design flexibility. Midrails are also available to create a segmented look or to align with adjacent transoms. High quality hardware is featured throughout including thermally isolated hinges, heavy duty corner spigots and optional multi-point locks. The door panel profiles incorporate a pair of wide thermal spacers to minimise heat transfer while a selection of glazing bead options accommodate double glazing up to a width of 32mm.

The environmental credentials of the Futureline range extend beyond its excellent thermal design performance – the actual metal itself being formed from Ecometal™ incorporating up to 25% recycled metal content and sourced from smelters using hydro-electric energy sources.

General information

Finish

Powder coated or anodised.

Material

Aluminium.

Shape

-

Manufacturer guidance

Various profiles available.

Size

Various sizes available. Max. Recommended Sizes Panel Height 2700mm Panel Width 1000mm.

Uniclass

Pr_30_59_24_52 Metal doorsetsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Metal doorsets

Standard

To AS 2047.

Configuration

Various dimensions and configurations - see product literature

Performance

-

Acoustic performance

-

Standard

To AS/NZS ISO 717.1.

Door leaf

-

Glazing

-

Type

Double.

Operation:

Manual.

Configurations

Hinged.

Door panels

Door Height 2.7m / Door Width 1.0m / Weight up to 115kgs.

Frame dimensions

Stile: 46mm x 85mm / Rail: 46mm x 89mm / Rail: 46mm x 120mm.

Performance:

Max SLS: 1500pa / ULS: 2500pa / WATER: 600pa.

Standard

AS2047.

Acoustics

Max Rw 36 (-2C;-2Ctr)

Cyclonic impact testing

No

Bushfire attack level (BAL)

BAL 29 DTS.

Hardware

Door Closer / DDA Compliant Handle.

Integral Accessories:

Stepped Threshold.

Accessories:

Security Screen.

Flyscreen.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

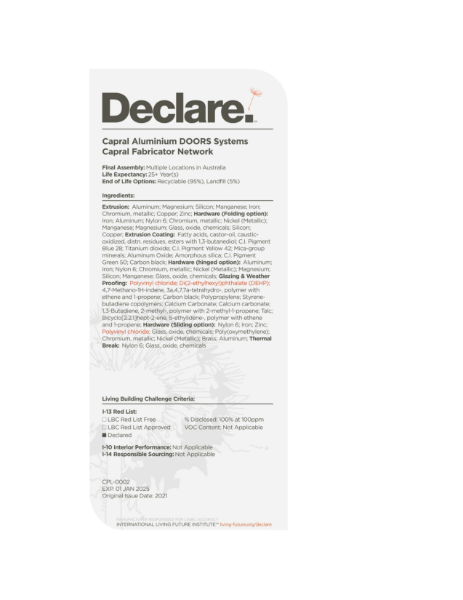

Declare

Declare

Capral Aluminium Door Systems Capral Fabricator Network

Literature

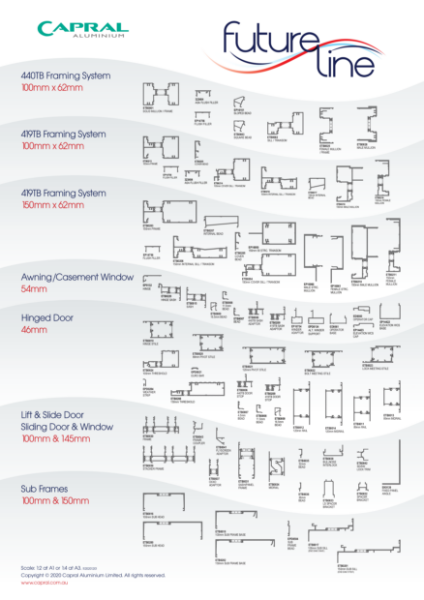

Extrusion Wall Chart Futureline Capral 2012

Extrusion Wall Chart Futureline Capral 2012

Futureline Brochure

Futureline Brochure

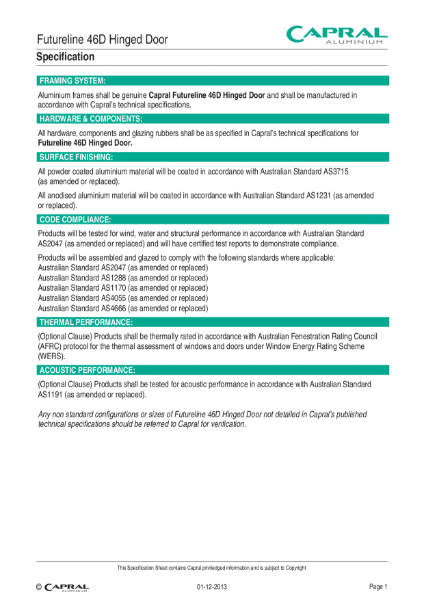

Specification Futureline Hinged Door

Specification Futureline Hinged Door

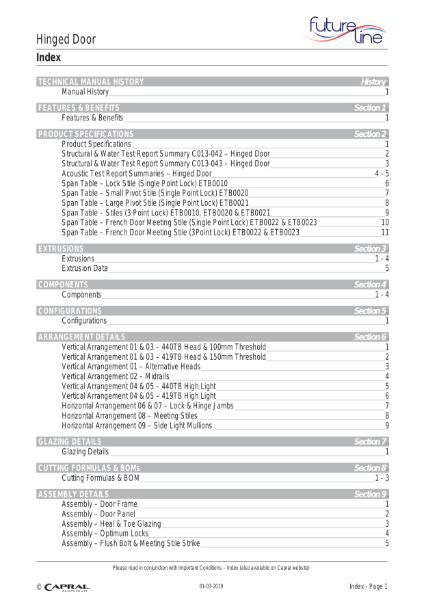

Technical Manual futureline Hinged Door Capral

Technical Manual futureline Hinged Door Capral
