Application

Suitable for residential and commercial applications, as well as luxury homes, high end constructions and fit-outs.

Description

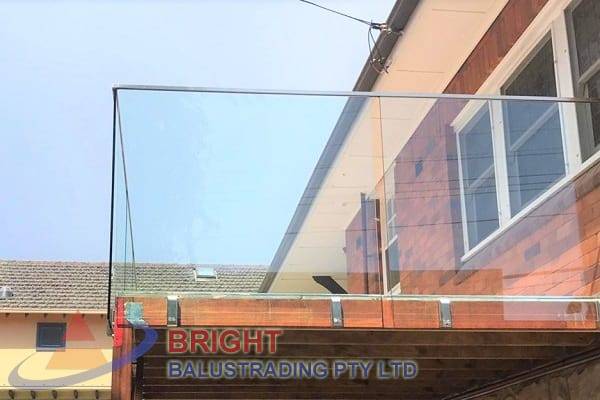

GLS-5 is a side-fixed frameless glass balustrade system or balcony barrier supported by side-fixed spigot posts and slotted top rails. Available in various glass types, top rail profiles and finishes.

General information

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

NATSPEC National Classification System

0554a Handrails, Guardrails, Balustrades and Other Barriers – Glass Balustrades

0554 Handrails, Guardrails, Balustrades and Other Barriers

0467 Glass Components

SpeedSpec

05525 Glass Balustrades

SpecPack

05525 Glass Balustrades

Specification data - Balustrade and guarding systems

Infills

Toughened glass.

Toughened heat-soaked glass.

Superclear or low iron glass.

Acid-etched or sandblasted privacy glass.

Tinted glass.

Printed design.

Toughened laminated glass.

Rails

-

Handrails

38 mm, round slotted stainless steel handrails (top-fixed).

50 mm, round slotted stainless steel handrails (top-fixed).

25 x 21 mm, square slotted stainless steel handrails.

Manufacturer guidance

Refers to profile configuration of top rail or glass capping.

System accessories

LED strip lights.

LED puck or spot lights.

Glass brackets

38 mm, round stainless steel spigots.

50 mm, round stainless steel spigots.

Finish

Satin or brushed.

Mirror or polished.

Powder-coated.

Metal-plated, brass.

Metal-plated, bronze.

Show more

Manufacturer guidance

Refers to finish of spigots and top rail.

Colour

Natural.

Manufacturer guidance

Indicate desired colour for powder-coated finish. Contact manufacturer for colour availability.

Thickness

12 mm.

15 mm.

17 mm.

19 mm.

21 mm.

Show more

Manufacturer guidance

Refers to thickness of glass panels.


Other thicknesses available depending on glass type. Consult manufacturer for details.

Loading capability

C1 or C2.

Guidance for specification option:

Includes areas with fixed seating adjacent to a balustrade, restaurants, bars, etc.

C3.

Guidance for specification option:

Includes stairs, landings, external balconies, edges of roofs, etc.

C5.

Guidance for specification option:

Includes theatres, cinemas, grandstands, discotheques, bars, auditoria, shopping malls, assembly areas, studios and retail areas including public areas of banks or building societies.

Manufacturer guidance

Refers to crowd loading performance. Confirm with certifier or surveyor.

Accessible design

To comply with AS 1428.1:2021.

Non-compliant.

Height

-

Manufacturer guidance

Indicate desired height.

Mounting position

Side (wall mount).

Surface material

Concrete.

Timber-framed.

Steel frame or beam.

Manufacturer guidance

Refers to substructure or surface to be fixed on.

Sustainability data

Country of product manufacture

Australia
