GreenLAG
Verified by manufacturer 8 months ago
A revolution in pipe lagging, GreenLAG is the superior solution for waste water acoustic insulation.
Application
- Waste water and storm water pipes
- Hydraulic pipes
- Air-conditioning ducts
- Swimming pool/Spa pump lagging and enclosures
- Valves
- Fan housings
- Compressor and generator enclosures
Description

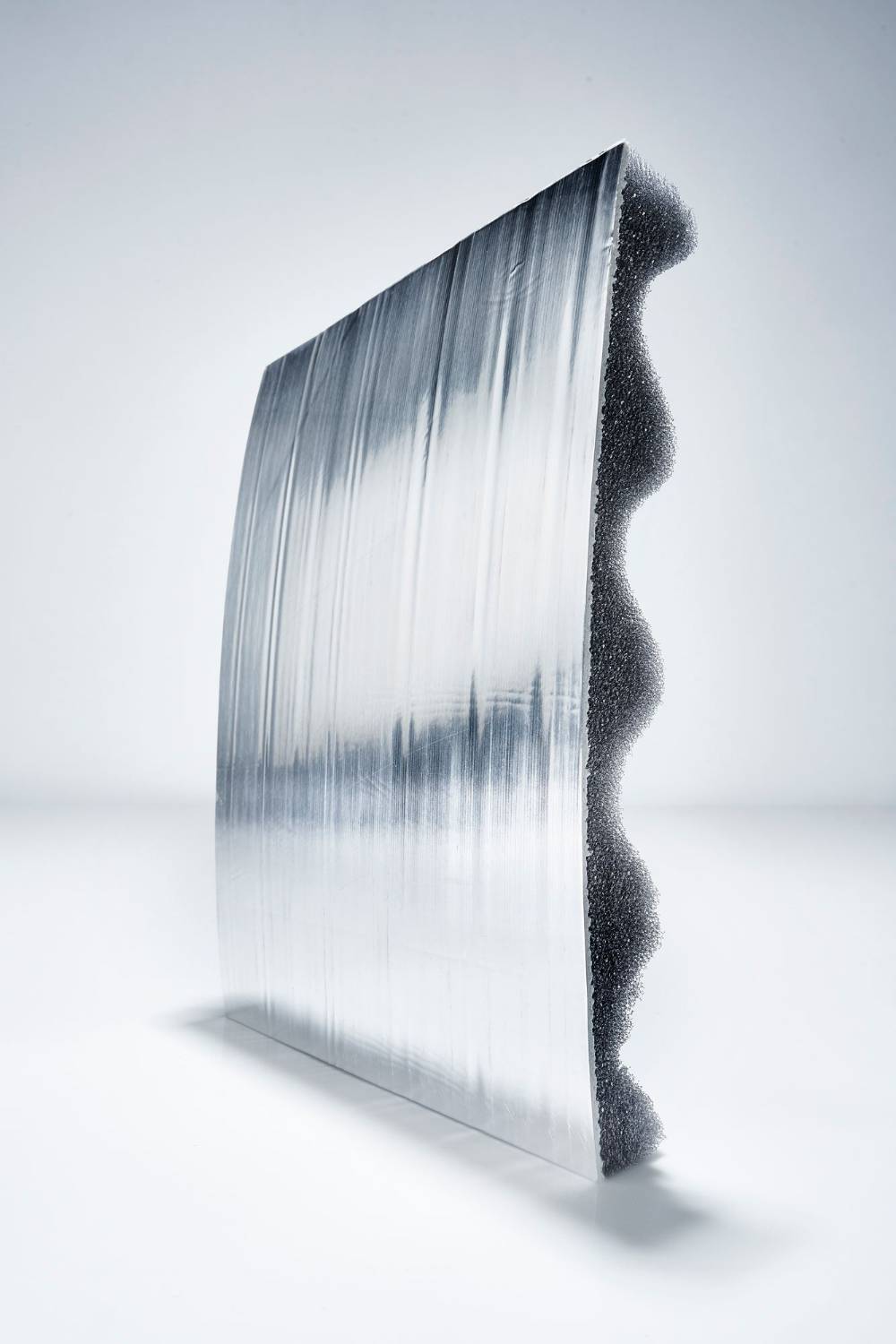

Combining a patented visco-elastic QuietWave® noise barrier with micro-cellular acoustic foam, GreenLAG® increases vibration damping through its soft microcellular material for exceptional sound transmission loss. Wrap it around waste water pipes or use it to minimise the noise break out of duct work, fan housings and valves in residential buildings, commercial and industrial properties.
The thinnest and lightest NCC-compliant acoustic pipe lagging available, GreenLAG® is environmentally-friendly. It’s quick and easy to fit and can be supplied in rolls, bends, strips and junctions.
General information
Color | Silver |
Finish | Foil |
Material | Composite |
Shape | Other |
Size | Manufacturer guidanceAvailable as standard roll, convoluted foam roll or export roll. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
NATSPEC National Classification System | 0802 Hydraulic Design and Install 0472 Acoustic Insulation |
SpecPack | 07200 Thermal and Acoustic Insulation |
SpeedSpec | 07200 Thermal and Acoustic Insulation |
Specification data - Phenolic foam insulation
Standard | To AS2282 |
Form | FlatConvoluted |
Fire hazard properties | |
Standard | AS/NZS 1530.3-1999 |
Flammability index | 0 |
Smoke developed index | 0-1 |
Spread of flame index | 0 |
Finish | Aluminium foil-faced. |
Insulation thickness (minimum) | 25mm |
Integral accessories | Aluminium Tape |
Marking | Acoustica branded tape |
Delivery and storage | Store out of direct sunlight and precipitation |
Fire performance | Group 1 fire rating. |
VOC content | Less than 0.5 mg. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Australia |
Country of product manufacture | Australia |
