Harlequin Activity - Engineered Hardwood Top

Verified by manufacturer over a year ago

Harlequin (Australia)

A permanently installed sprung floor system.

Jump to:
+61 2 9620 7770 Website

Application

Performing arts, studios, dance halls and rehearsal studios.

Description

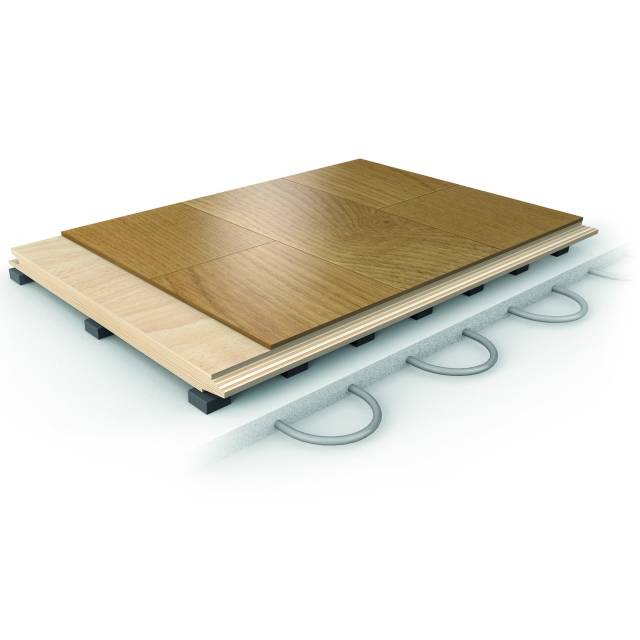

A permanently installed sprung floor system, based on the well established ‘triple sandwich’ construction originated by Harlequin over 35 years ago. It is a fully-floating system with no fixings to the sub-floor and can be laid on any reasonably smooth and flat surface without prior preparation.


Harlequin Activity is shock-damped to avoid a ‘trampoline’ effect and provides area and point elasticity to offer identical characteristics across the whole floor. It is an ‘industry standard’ choice with many hundreds of installations worldwide, effectively reducing injuries to both teachers and performers.


Harlequin Activity is installed by our own highly-skilled technical team and all work is fully guaranteed. Different surface options include:

  • Solid hardwood - in beech, oak or maple.
  • Engineered board with a hardwood wear layer - in beech, oak or maple.


If solid hardwood or engineered board is chosen, the skirting will be ‘optional’.

General information

Finish

Lacquered.

Material

Beech

Oak

Maple

Warranty description

Five year.

Uniclass

Ss_30_20_95_95 Wood floating floor systemsPrimary

NATSPEC National Classification System

0654 Multilayered Board Flooring

SpeedSpec

09646 Floating Flooring

SpecPack

09620 Sports Flooring

09646 Floating Flooring

Specification data - Wood floating floor systems

Vapour control layer

Polyethylene damp-proof membrane.

Underlay

Cellular polyurethane with a single layer semi-flexible suspension panel.

Flooring

-

Board type

2-ply engineered board with a hardwood wear layer.

Jointing

Modified elastic single component silane adhesive and secretly secured through the tongues using lost-head nails.

Perimeter flanking seal

Closed cell polyethylene foam, Wood Skirting or Scotia.

Trims and skirtings

Wood skirtings.

FloorCoveringThickness

Minimum floor thickness before inclusion of chosen finish - 46mm.

Weight

Minimum floor weight before inclusion of chosen finish - 14.1kg/m.²

Load (maximum)

Maximum point load - 549kg.

Design load

Rolling load >1500N.

Board thickness

14mm.

Board materials

Beech

Maple

Oak

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Literature

Harlequin - Activity

Harlequin - Activity

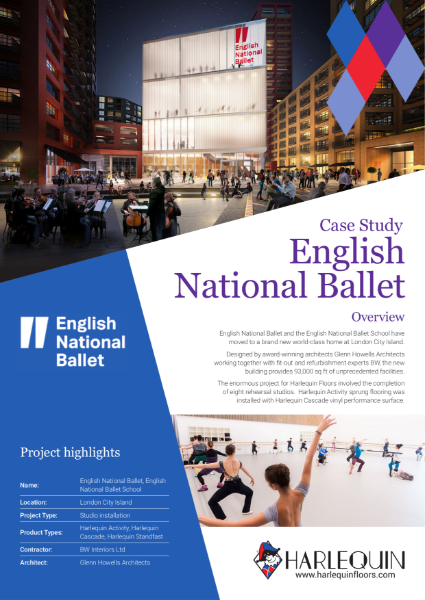

Case Study - English National Ballet

Case Study - English National Ballet
