Harlequin Liberty sprung floor
Verified by manufacturer over a year ago
A modular panel-based sprung-floor system.
Application
Ballet, contemporary, modern and theatrical use, aerobics, zumba, hip-hop, jazz, street, salsa, percussive including flamenco, Irish and tap, multi-purpose use, concerts and for operatic performances.
Description
Harlequin Liberty is a sprung floor panel system, designed for permanent or portable installation. Panels are laid in a brickwork fashion onto the sub-floor, so that cross joins do not coincide. The panels join together by a rounded tongue and groove, which is secured in place using our ‘one turn of the key’ latch and lock mechanism.
Harlequin Liberty is finished by choosing an appropriate Harlequin vinyl performance floor from our range. For permanent and semi-permanent use, installation can be carried out either by the customer themselves or by our highly-skilled technical team.
Harlequin Liberty sprung floor panels and the accompanying portable Harlequin vinyl performance floor can also be stored in carts, providing an easy and safe way for stage crew to move them on tour or around a venue.
General information
Color | Manufacturer guidanceAvailable in:
|
Finish | Depends on Vinyl top surface chosen |
Material | Wood. |
Size | Floor panel sizes 1m x 1m & 2m x 1m. |
Warranty description | Five year. |
Uniclass | |
NATSPEC National Classification System | 0654 Multilayered Board Flooring |
SpeedSpec | 09646 Floating Flooring |
SpecPack | 09620 Sports Flooring 09646 Floating Flooring |
Specification data - Resilient sheet floor covering systems
Rigid underlay | |
Type | Dual density shock dampening elastomer blocks, clear layered birch plywood with a rounded tongue and groove, plus a latch and lock system. |
Fasteners | Metal latches and receivers. |
Resilient underlayer | |
Type | Dual density shock dampening elastomer blocks, clear layered birch plywood with a rounded tongue and groove, plus a latch and lock system. |
Fixing | Metal latches and receivers. |
Sheet | |
Type | Vinyl. |
Fixing | Acrylic polymer emulsion adhesive. |
Seams | Welded. |
Substrate preparation | Can be laid on any hard, smooth sub-floor. |
Temperature conditions for use | Room temperature 18c-27c, Humidity 40-6-%. |
FloorCoveringThickness | Minimum floor thickness (before inclusion of chosen finish) 37mm. |
Weight | Minimum floor weight (before inclusion of chosen finish) 12.5kg/m.² |
Load (maximum) | Maximum point load - 1126kg. |
Design load | Rolling load >1500N. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature

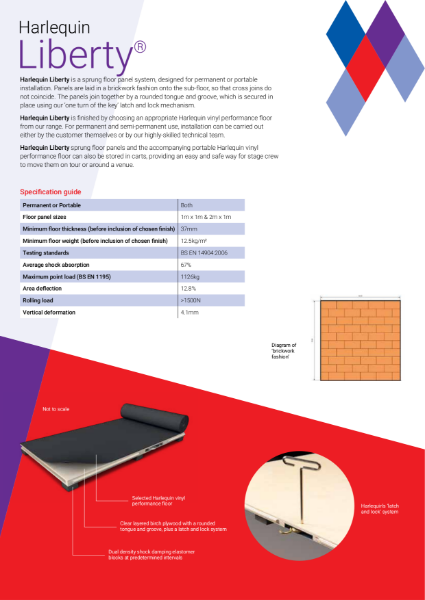

Harlequin - Liberty
