Hi-Deck 650®

Name: Hi-Deck 650®
Brand: Metroll
SKU: kgUn5hKtmNhKNsmzuzNs7W

Verified by manufacturer over a year ago

Metroll

Large span, continuous roof cladding profile. Only available in WA.

Jump to:

+61 8 9365 5444 Website

Application

Suitable for renovations and new construction of commercial and industrial buildings.

Description

Hi-Deck 650® is a large span, continuous roof cladding manufactured from COLORBOND® and ZINCALUME® steels. Some of its features are:

Lightweight roofing.
Offered in custom and long lengths.
Comes in a wide range of COLORBOND® steel colours.

General information

Shape	Rectangle.
Material	Steel.
Size	Sizes are cut to order, dependent on load limit regulations set by local transport authorities.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
NATSPEC National Classification System	0421 Roofing - Combined 0423 Roofing – Profiled Sheet Metal
SpeedSpec	07610 Roofing and Roof Plumbing

Specification data - Steel profiled sheet

Classification data
Grade	G550.
Coating class	AZ150.
Base Metal thickness (BMT)	0.42 mm. Guidance for specification option: Maximum spans: 2500 mm for end span. 2750 mm for internal span. 0.48 mm. Guidance for specification option: Maximum spans: 3400 mm for end span. 3800 mm for internal span. Manufacturer guidance Minimum pitch of 1° (1 in 50) is required.
Profile	-

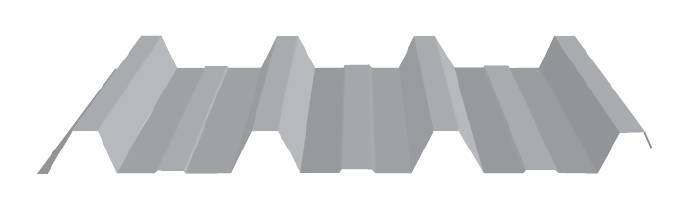

Form	Trapezoidal.
Height	50 mm.
Cover width	650 mm. Manufacturer guidance Sheet width of 725 mm.
Colour	- Manufacturer guidance Available in a range of COLORBOND® steel colours. Comes in standard aluminium colour for ZINCALUME® steel.
Material	COLORBOND® steel. ZINCALUME® steel.
Mass	5.01 kg/m² (0.42 mm COLORBOND® steel). 5.69 kg/m² (0.48 mm COLORBOND® steel). 4.96 kg/m² (0.42 mm ZINCALUME® steel). 5.64 kg/m² (0.48 mm ZINCALUME® steel).
Length	- Manufacturer guidance Sizes are cut to order. Recommended maximum runs are 17 m for dark-coloured sheeting and 24 m for light-coloured sheeting. Allow for a manufacturing tolerance of ±0 to 15 mm.
Span	600 mm. 900 mm. 1200 mm. 1500 mm. 1800 mm. 2100 mm. 2400 mm. 2700 mm. 3000 mm. 3300 mm. 3600 mm. 3900 mm. 4200 mm. 4500 mm. Manufacturer guidance Use in conjunction with Design Notes. Dependent on fastener frequency, span type and support thickness.
Frame or support	Timber supports. Guidance for specification option: Use 14 - 10 x 90 mm Hex Head Type 17 with seal as fasteners. 1.2 mm to 3.0 mm BMT steel supports. Guidance for specification option: Use 12 - 14 x 80 mm Hex Tek® Type 17 with seal as fasteners.
Weather conditions	- Manufacturer guidance Contact local manufacturer if to be used within 1 km of industrial, chemical, marine or corrosive environments.
Compatibility	- Manufacturer guidance Hi-Deck 650® is not compatible with lead, copper, bare metal and some chemically treated timbers.

Sustainability data

Country of product manufacture	Australia

Literature

Hi-Deck 650 Design Guide

COLORBOND® Colour Range
