HiKlip® 630 Non-Cyclonic

Verified by manufacturer over a year ago

COLORBOND® Steel

Fielders Variant:

High rainwater-carrying roofing with concealed-fixed installation. Available in WA only.

Jump to:
+61 8 8292 3611 Website

Application

Suitable for major commercial, industrial and domestic projects. Can also be used as walling profile. Available in Western Australia only.


AUSTRALIAN STANDARDS



Published load capacity data is derived from testing in accordance with:

  •       AS 4040.0:1992.
  •       AS 4040.1:1992.
  •       AS 4040.2:1992.
  •       AS 4040.3:2018.



Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

  •       AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
  •       AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
  •       AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
  •       AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.



Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.



Fielders steel products comply with:

  •       AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
  •       AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
  •       AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

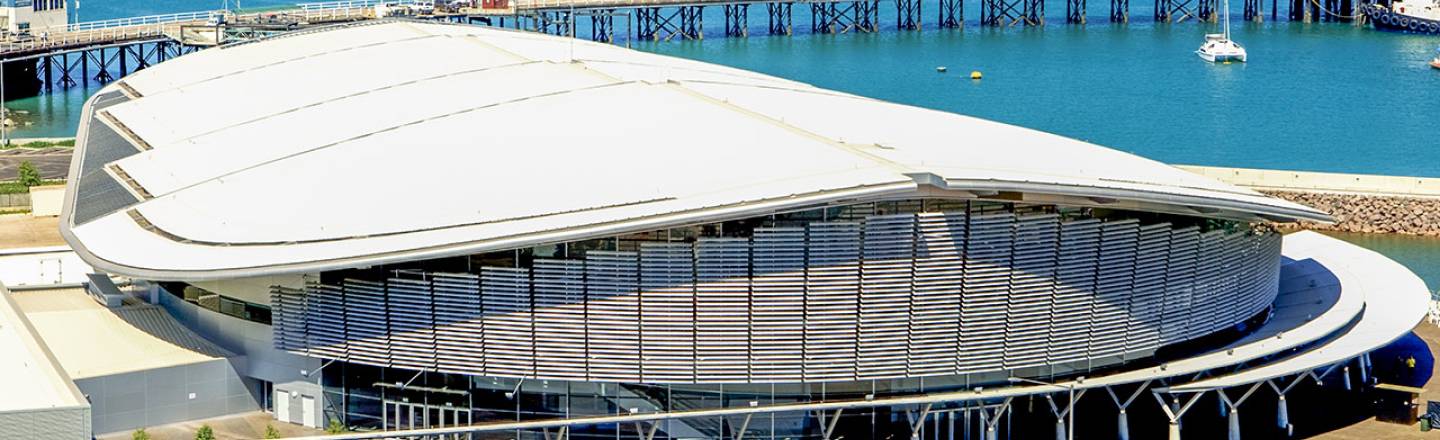

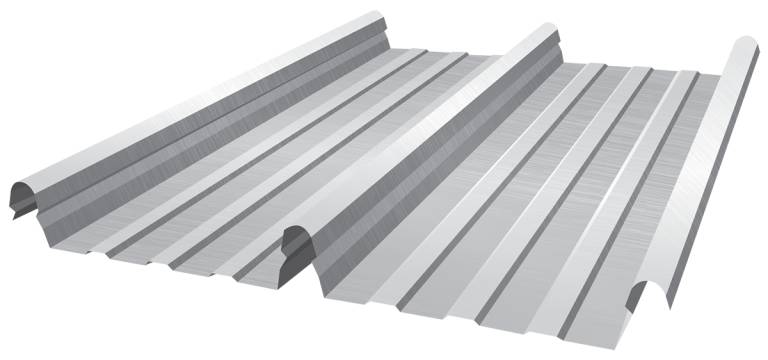

HiKlip® 630 Non-Cyclonic is a high rainwater-carrying roofing with concealed-fixed installation. It is the largest of such profile in Australia and is purposely built for stormy weathers. Some of its features include:

  • Combination of durability and aesthetics.
  • Large spanning capabilities for lower costs.
  • Ability to rollform on-site.
  • Available in a range of colours and finishes.

General information

Material

Steel.

Shape

Rectangle

Warranty description

20 years.

Manufacturer guidance

Covered by BlueScope material warranties.


Warranty of up to 20 years, subject to project assessment and terms and conditions.

Uniclass

Pr_25_71_51_89 Steel profiled sheetPrimary

SpeedSpec

07610 Roofing and Roof Plumbing

07462 Cladding External Walls

NATSPEC National Classification System

0436 Cladding – Profiled and Seamed Sheet Metal

0423 Roofing – Profiled Sheet Metal

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

Specification data - Steel profiled sheet

Standards

To AS 1397 and AS/NZS 2728.

Guidance for specification option:

Installation of the cladding should be in accordance with AS 1562.1 and HB 39.

Grade

G550.

Coating class

AM100.

Base Metal thickness (BMT)

0.42 mm.

Guidance for specification option:

Total Coated Thickness of 0.47 mm.

0.48 mm.

Guidance for specification option:

Total Coated Thickness of 0.53 mm.

Manufacturer guidance

Indicated Total Coated Thickness (TCT) is based on standard COLORBOND®, single-sided material.

Profile

-

Form

Trapezoidal.

Height

66 mm.

Manufacturer guidance

Refers to rib height.

Cover width

630 mm.

Manufacturer guidance

Provide manufacturing tolerance of ±4 mm.

Colour

Basalt.

Classic Cream.

Cottage Green.

Cove.

Deep Ocean.

Dune.

Evening Haze.

Gully.

Ironstone.

Jasper.

Mangrove.

Manor Red.

Monument.

Night Sky.

Pale Eucalypt.

Paperbark.

Shale Grey.

Surfmist.

Terrain.

Wallaby.

Windspray.

Woodland Grey.

Finish

Painted.

Solar absorptance value (maximum)

0.32–0.96.

Manufacturer guidance

Value is dependant on colour. Contact manufacturer for further assistance.

Material

COLORBOND® steel.

Length

-

Manufacturer guidance

Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply.


To address thermal expansion and contraction, the recommended maximum sheet length is 24 m. Where lengths exceed 24 m, step joints or concealed decks are recommended.


Provide manufacturing tolerance of ±7 mm in length.

Span

1200 mm.

1500 mm.

1800 mm.

2100 mm.

2400 mm.

Show more

Manufacturer guidance

Refers to maximum allowable spans. These vary depending on profile thickness and span type. Maximum spans are as follows:

  • 0.42 mm BMT roofing: 2000 – 2600 mm.
  • 0.42 mm BMT walling: 2150 – 3000 mm.
  • 0.48 mm BMT roofing: 2400 – 3000 mm.
  • 0.48 mm BMT walling: 2450 – 3000 mm.


Spans in excess of 3000 mm are available subject to enquiry. Contact manufacturer for further details.

Thermal expansion

2.9 mm average per 5.0 m.

Manufacturer guidance

Computed at 50° C change.

Frame or support

Steel (1.5 mm).

Guidance for specification option:

Affix clips to the steel support with no. 10 x 25 mm Hexagon head self-drilling screws for metal. Use three fasteners per clip.

Timber Hardwood.

Guidance for specification option:

Affix clips to the timber support with no. 12 x 25 mm Hexagon head Type 17 self-drilling screws. Use three fasteners per clip.

Timber Softwood.

Guidance for specification option:

Affix clips to the timber support with no. 12 x 45 mm Hexagon head Type 17 self-drilling screws. Use three fasteners per clip.

Manufacturer guidance

Refers to recommended supports and fasteners if product is to be installed without insulation. Use three fasteners per clip.

Mass

5.17 – 5.49 kg/m² (0.42 mm BMT).

5.87 – 6.23 kg/m² (0.48 mm BMT).

Insulation

-

Manufacturer guidance

When insulation thickness up to 50 mm are installed, screws may need to be increased in number depending on insulation thickness and density.


For insulation thicknesses greater than 50 mm, Fielders® recommends the use of a thermal spacer.

Installation

Concealed clip fixed.

Manufacturer guidance

To be installed with HiKlip® 630 Concealed Fix Clipping System.

Manufacturing location

Manufactured on-site with Fielders Mobile Mill.

Manufactured at a Fielders facility and transported to project site.

Ancillary components

Masonry Parapet Side Wall (Low or High).

Apron Flashings.

Overflashing.

Headwall Apron Flashing.

Soaker Gutter.

Show more

Manufacturer guidance

Optionally available. Contact manufacturer for further details.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% Recyclable.
