Industrial SV Ventilator

Verified by manufacturer over a year ago

Ampelite Australia

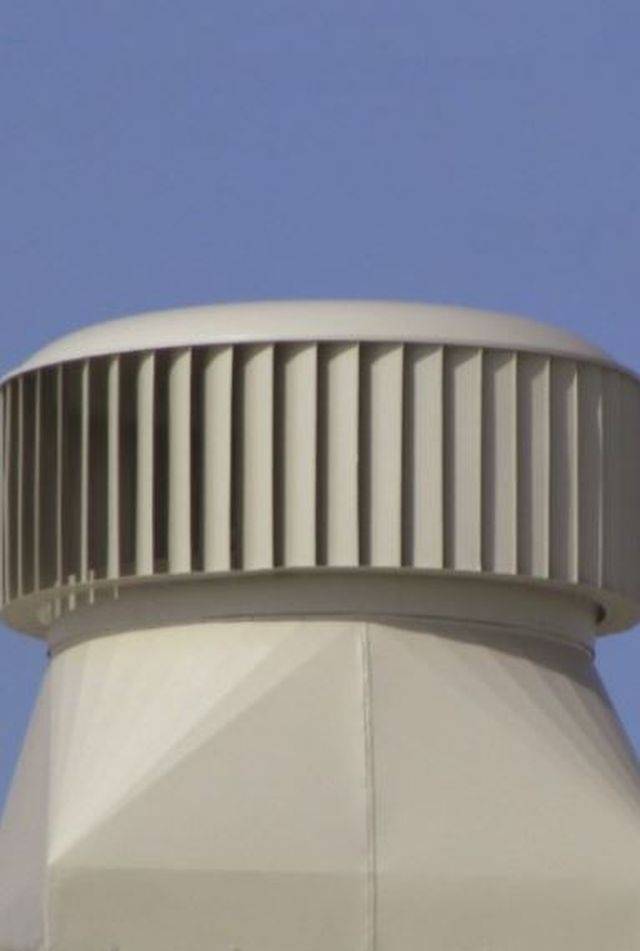

Wind driven turbo industrial roof ventilator.

Jump to:
+ 61 3 8710 9110 Website

Application

Large and small industrial buildings, either as a new installation or a replacement. Designed to withstand extreme environments. Can be used for:

  • Exhausting pit gases, including methane and sulphur dioxide.
  • Minimizing condensation under metal roofs.
  • Removing chlorine fumes from above enclosed swimming pools.
  • Industrial ventilation.

Description

Wind driven turbo industrial roof ventilator, operated by exhausting stale inside air through the vanes via wind rotation, boosting the natural inward flow of air during this process. Some of its features include:

  • Available in a range of sizes to suit multiple applications.
  • Reliable, strong aluminium construction.
  • Low installation and running costs.
  • High capacity output per vent due to the angle of the vanes.
  • Provides both air circulation and the ability to keep temperatures at a comfortable level.
  • Maintenance free.
  • The stainless steel bearings are fully enclosed and self-lubricating in a stainless steel, double row casing.
  • Two-part shaft system comprises an anti-corrosive steel axle, fully sealed in a fire resistant nylon casing. This casing ensures the original alignment of head and axle is always maintained, even after receiving wind pressure stress.
  • Bearing assembly provides low friction with minimal drag, resulting in a longer lifespan.
  • Low profile design and straight vanes provide an aesthetically pleasing roof space.

Installation should follow SAA HB39 guidelines where applicable.

General information

Color

Other

Manufacturer guidance

Colours are available in a range of powdercoat colours. Can be colour matched to roofing.

Finish

Powder-coated

Material

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Uniclass

Pr_30_59_29_77 Rotary roof ventilatorsPrimary

NATSPEC National Classification System

0423 Roofing – Profiled Sheet Metal

0421 Roofing - Combined

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

SpeedSpec

07610 Roofing and Roof Plumbing

Specification data - Rotary roof ventilators

Ventilation opening

150 mm (SV150).

Guidance for specification option:

Ventilator head (w x h): 320 x 260 mm.

300 mm (SV300).

Guidance for specification option:

Ventilator head (w x h): 480 x 380 mm.

450 mm (SV450).

Guidance for specification option:

Ventilator head (w x h): 625 x 405 mm.

600 mm (SV600).

Guidance for specification option:

Ventilator head (w x h): 770 x 450 mm.

800 mm (SV800).

Guidance for specification option:

Ventilator head (w x h): 985 x 535 mm.

950 mm (SV950).

Guidance for specification option:

Ventilator head (w x h): 1130 x 575 mm.

Material

Zincalume.

Guidance for specification option:

Heavy duty bases.

Aluminium.

Finish

Powdercoated.

Natural.

Manufacturer guidance

Heavy duty bases are natural or powdercoated.

Accessories

Base (Square to Round).

Guidance for specification option:

Manufactured from Zincalume®. See manufacturer's literature for sizes for your chosen type.

Base (Variable pitch).

Guidance for specification option:

Available for roof pitches of 1–45°. Manufactured from aluminium. See manufacturer's literature for sizes for your chosen type.

Dampers.

Guidance for specification option:

Available for 300 mm, 450 mm, and 600 mm variants.

Product Reference

Industrial SV Ventilator

Height

3 m.

6 m.

9 m.

Manufacturer guidance

This is a measurement taken from the intake area (generally floor level) to the base of the ventilator.

Ventilator type

Wind driven.

Wind speed/ temperature changes

6 km/h.

8 km/h.

12 km/h.

16 km/h.

Sustainability data

Country of product manufacture

Australia

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
