Intumastic

Verified by manufacturer over a year ago

TBA Firefly

Water-based acrylic sealant fire protection.

Jump to:
+61754114209 Website

Application

Used for sealing around services and for gluing the TBA Firefly™ Penowrap® to substrates and to TBA Firefly™ Intubatt. TBA Firefly™ Intumastic Brush Grade is used to butter up the cut edges of our TBA Firefly™ Intubatt® prior to rejoining them around service penetrations. Once the Intubatt® is installed the cartridges or sausages are used to fill any small gaps and holes between the Intubatt® and the services to create a neat and tidy seal. For specific applications and FRLs achieved please refer to the referenced Compliance Reports. Must be installed in strict accordance with the construction details contained within the Compliance Reports.

Description

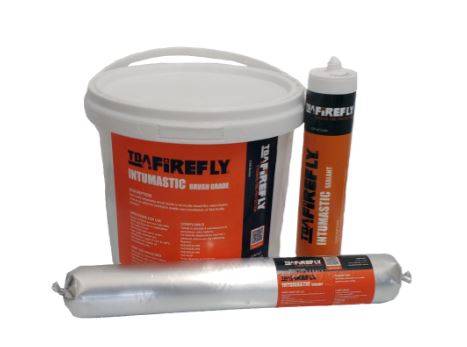

Available in cartridges and sausages which are used for sealing around services and for gluing the TBA Firefly™ Penowrap® to substrates & to TBA Firefly™ Intubatt®.


TBA Firefly™ Intumastic Brush Grade available in 5 kg tubs which is used to butter up the cut edges of our TBA Firefly™ Intubatt® prior to rejoining them around service penetrations. Once the TBA Firefly™ Intubatt® is installed, the cartridges or sausages are used to fill any small gaps and holes between the TBA Firefly™ Intubatt® and the services to create a neat and tidy seal.



General information

Warranty description

25 year

Uniclass

Pr_30_31_68_42 Intumescent puttiesPrimary

NATSPEC National Classification System

0182 Fire-Stopping

SpeedSpec

07810 Fireproofing

SpecPack

07810 Fireproofing

Specification data - Intumescent putties

Material

Acrylic sealant.

Form

Water based in glue form.

Execution

-

Manufacturer guidance

Must be installed in strict accordance with the construction details contained within the Compliance Reports.

Sizes

310 mL.

Guidance for specification option:

Cartridge (25 in a box).

600 mL.

Guidance for specification option:

Sausage foil pack (12 in a box).


5 kg.

Guidance for specification option:

Tub brush grade.

Fire resistance

-/240/240.

Certification

Tested in both vertical and horizontal applications.

Tested in accordance with AS1530.4-2014.

Assessed in accordance with AS4072.1-2005.

FAS190234 RIR.

Guidance for specification option:

Warringtonfire report.

FAS190235 RIR.

Guidance for specification option:

Warringtonfire report.
