J Series Stair Nosing
Verified by manufacturer over a year ago

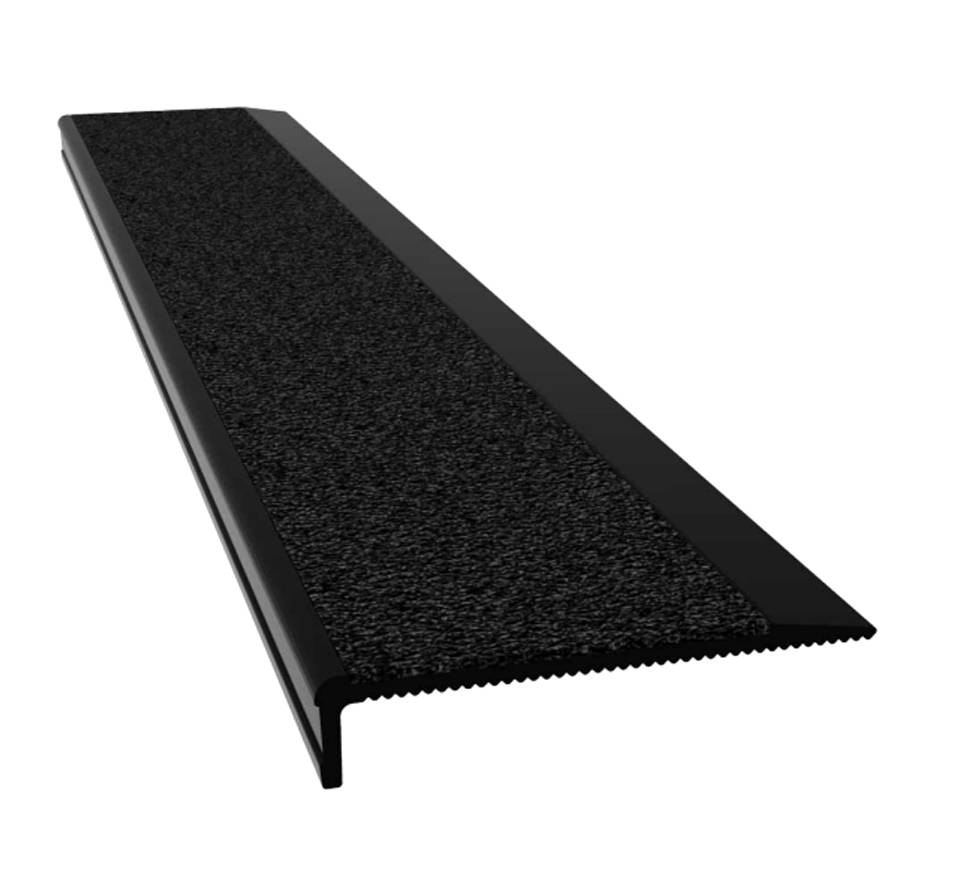

J Series Black Anodised with Crystalline™ Black External Rated Insert
Surface mount, AS 1428.1:2021 compliant stair nosing of minimal design, available in black only.
Application
- Retro-fit/surface mount design for existing stairs.
- Heavy-duty profile design suitable for high traffic areas.
- P5 rated abrasive insert suitable for external/wet stairs (commercial buildings, apartment complexes, schools and universities).
- Can be installed over concrete, tile, timber and vinyl.
- Suitable fixings provided on each project to match the intended substrate.
- Not intended for extremely high traffic environments such as stadiums.
- Not permissible for use in submerged marine environments.
Description
J Series is the most minimal stair nosing in the range. The heavy gauge aluminium profile is acceptable for use in high traffic stairs (both new and existing) and is the minimum permissible 50 x 10 mm allowed under AS 1428.1:2021. The all black colour combination (black anodised / black abrasive insert) is standard.
Significant features include:
- AS 1428.1:2021 compliant design.
- Intended for retro-fit / surface mount installations.
- Black anodised with black abrasive insert as standard.
- Concealed fixings across the entire range offering improved aesthetics and tamper resistance.
- Available cut to size and with pre-drilled countersunk holes at 300mm centres.
- Australian manufactured anodised aluminium extrusion.
- Widely installed across Australia for more than a decade.
General information
Color | Black Manufacturer guidanceCompliant to AS 1428.1:2009 so long as an insert colour offering a minimum of 30% luminance contrast to the surrounding colour is specified. |
Finish | Anodized |
Material | Aluminium |
Width | 50 mm |
Height | 10 mm |
Uniclass | |
NATSPEC National Classification System | 0195 Tactile Indicators and Stair Edgings 0552 Metalwork - Fabricated 0191 Sundry Items |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
SpecPack | 05500 Metalwork |
Specification data - Rigid stair nosings
Profile | Square nosing.Diminishing / Tapered back edge. |
Base section | |
Material | Aluminium. |
Finish | Black anodised. |
Size | |
Rise x going | 10 x 50 mm. |
Inserts | |
Material | Abrasive Insert, Black, P5 ratedTextured Vinyl Insert, Black, P3 rated |
Colour | Black.Guidance for specification option: Insert width at 60 mm. |
Fixing requirement | Concealed fixing. |
Standard | To AS 1428.1:2009 and AS 4568:2013. |
Slip resistance class | P5. Guidance for specification option: Abrasive Insert P3. Guidance for specification option: Textured vinyl Insert |
UV Resistance – Stable | Yes. |
Fixing method | Glue. Screw. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | Yes. |
