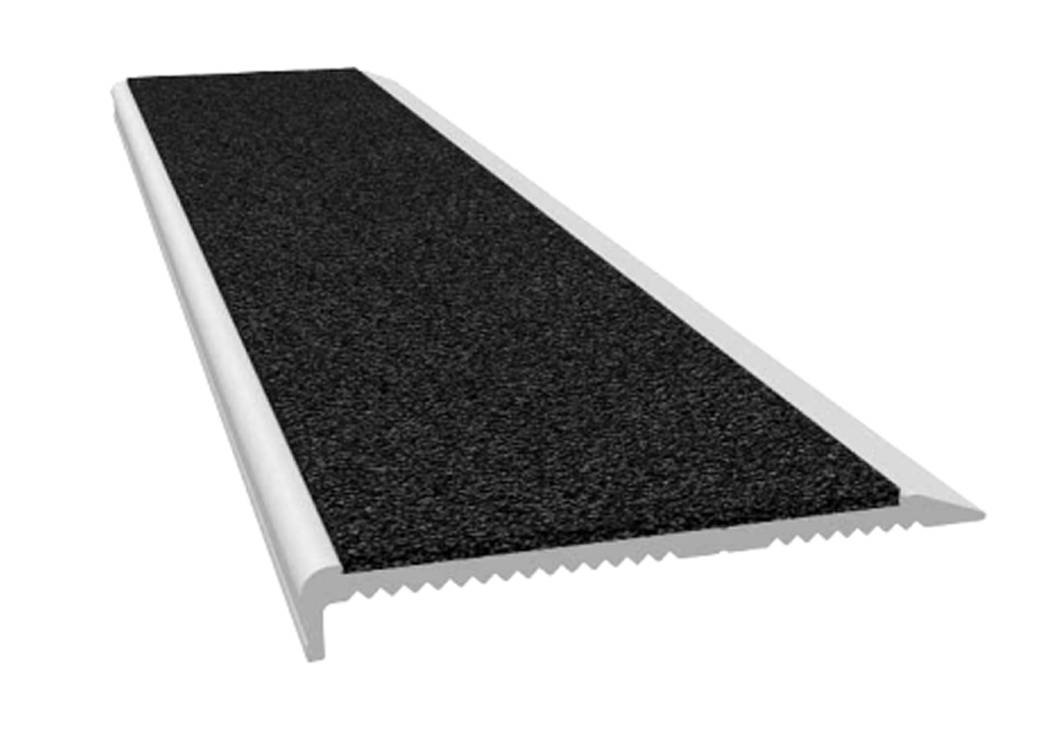

M Series Stair Nosing
Verified by manufacturer over a year ago
M Series Clear Anodised
M Series Clear Anodised
Surface mount, AS 1428.1:2009 compliant stair nosing with a range of insert options suitable for internal and external applications.
Application
- Retro-fit/surface mount design for existing stairs.
- Heavy-duty profile design suitable for high traffic areas.
- A range of insert options:
- P5 rated abrasive insert suitable for external/wet stairs (commercial buildings, apartment complexes, schools and universities). Available in black, light grey and yellow.
- P4 rated premium vinyl insert suitable for high traffic internal stairs (commercial buildings, apartment complexes, schools and universities). Available in black, dark grey and light grey.
- P3 rated textured vinyl insert suitable for internal dry stairs (low rise apartment blocks and residential houses). Available in black only.
- Can be installed over concrete, tile, timber, vinyl, luxury vinyl tile, carpet, metal checker-plate and virtually any other substrate or floor covering.
- Suitable fixings provided on each project to match the intended substrate.
- Not intended for extremely high traffic environments such as railway stations and stadiums.
- Not permissible for use in submerged marine environments.
Description
M Series is an extremely robust and versatile stair nosing. The heavy gauge aluminium profile is acceptable for use in high traffic stairs (both new and existing) and is with a maximum permissible 75 x 10 mm allowed under AS 1428.1:2009. Available with 3 standard external rated insert colours and 3 internal rated insert colours.
Significant features include:
- AS 1428.1:2009 compliant design.
- A range of insert options for internal and external applications in residential and commercial environments.
- Concealed fixings across the entire range offering improved aesthetics and tamper resistance.
- Available cut to size and with pre-drilled countersunk holes at 300mm centres.
- Australian manufactured anodised aluminium extrusion.
- Widely installed across Australia for more than a decade.
General information
Color | Black Grey Yellow Manufacturer guidanceCompliant to AS 1428.1:2009 so long as an insert colour offering a minimum of 30% luminance contrast to the surrounding colour is specified. |
Finish | Anodized |
Material | Aluminium |
Width | 75 mm |
Height | 10 mm |
Uniclass | |
NATSPEC National Classification System | 0195 Tactile Indicators and Stair Edgings 0552 Metalwork - Fabricated 0191 Sundry Items |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
SpecPack | 05500 Metalwork |
Specification data - Rigid stair nosings

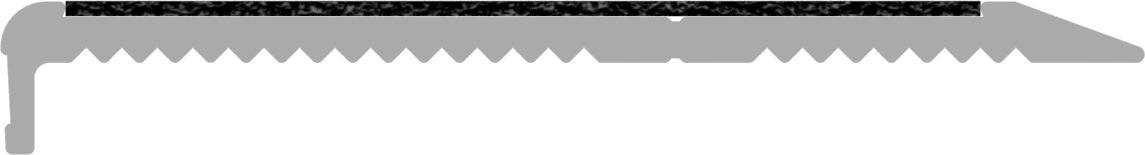

Profile | Square. |
Base section | |
Material | Aluminium. |
Finish | Clear anodised. |
Size | |
Rise x going | 10 x 75 mm. |
Gauge | 4 mm. |
Inserts | |
Material | Abrasive Insert, Black, P5 rated, internal/external.Abrasive Insert, Light Grey, P5 rated, internal/external.Abrasive Insert, Yellow, P5 rated, internal/external.Textured Vinyl Insert, Black, P3 rated, internal use only.Premium Vinyl Insert, Black, P4 rated, internal use only.Premium Vinyl Insert, Dark Grey, P4 rated, internal use only.Premium Vinyl Insert, Light Grey, P4 rated, internal use only. |
Fixing requirement | Glue and screw.Screw only.Guidance for specification option: Screw only when used over carpeted stairs. Manufacturer guidanceAll fixings are concealed. |
Standard | To AS 1428.1:2009 and AS 4568:2013. |
Slip resistance class | P5. Guidance for specification option: Abrasive insert. P4. Guidance for specification option: Premium vinyl insert. P3. Guidance for specification option: Textured vinyl insert. |
UV Resistance – Stable | Yes. |
Sustainability data
Country of product manufacture | Australia |
Recyclability | Yes. |
