Magnetic Automation FlowMotion mWing (Speedgate)

Verified by manufacturer over a year ago

FAAC Group

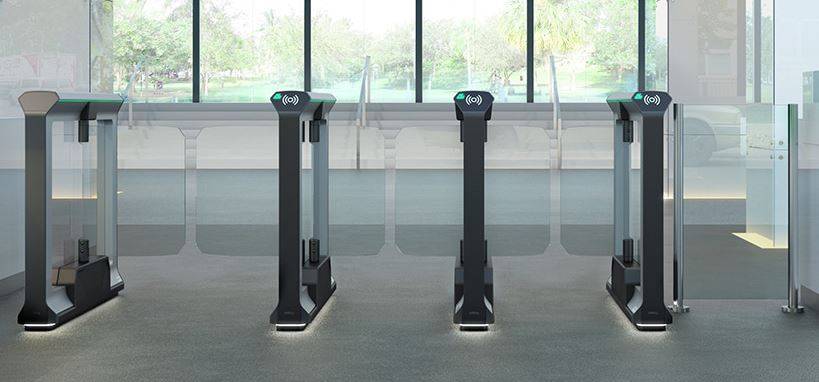

Pedestrian passageway with wing gates.

Jump to:
1300364864 Website

Application

  • Cultural institutions and public facilities.
  • Easily set up to cope with high visitor numbers.
  • A wide-lane variant is available for groups of visitors, the transport of material, and wheelchair users.
  • Suitable for monitored and non-monitored zones.
  • For access control in office.
  • Industry and administration buildings.

Description

  • High visitor throughput thanks to rapid opening times and preset travel function.
  • Open-gate mode for extra throughput acceleration.
  •  For maximum security requirements in monitored and unmonitored areas.
  •  Low impact forces for maximum personal safety.
  •  Freely turning on power outages.
  • Designed for 10 million opening and closing cycles.

General information

Material

2 component-polyurethane mDure.

Guidance for specification option:

Housing material.

Length

1300 mm

Manufacturer guidance

Housing dimensions.

Width

180 mm

Manufacturer guidance

Housing dimensions.

Height

1050 mm

Manufacturer guidance

Housing dimensions.

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0552 Metalwork - Fabricated

0191 Sundry Items

SpecPack

08200 Doors, Door Frames and Hatches

05500 Metalwork

Specification data - Glazed half-height turnstiles

Rotation

2-way operation in entry and exit direction.

Operation

Electric motor.

Dimensions

-

Overall width

960 mm.

Guidance for specification option:

With 600 mm passage width.

1260 mm.

Guidance for specification option:

With 900 mm passage width.

Manufacturer guidance

Total width for 1 line.

Overall depth

1300 mm.

Overall height

Housing height: 1050 mm.

Passage width

Narrow lane: 520 mm.

Standard: 600 mm.

Wide lane: 900 mm.

Extra wide lane: 960 mm.

Manufacturer guidance

More on request to manufacturer.

Control units

-

Device acceptance

Integrated MGC control system.

Operational voltage

100–240 VAC, 50/60 Hz.

Finish

-

Colour

Basalt.

Guidance for specification option:

  • Similar to RAL 9006.
  • Sides.

Anthracite.

Guidance for specification option:

  • Similar to RAL 9005.
  • Frame.

Options

Special colours.

Guidance for specification option:

More than 20 special colour tones available according

to pricelist.

Barrier elements.

Guidance for specification option:

Glass wing made of single-layer safety glass (ESG) or acrylic glass, customer barrier elements.

Wide passageway.

Guidance for specification option:

Wide-lane configuration, 900 mm width.

Passage direction indicator.

Floor illumination.

Show more

Barrier elements

Glass wing made of single-layer safety glass (ESG) or acrylic glass.

Customer-specific barrier elements.

Enclosure material

Housing: 2 component-polyurethane mDure.

Barrier Height

Standard: 888 mm.

High doors.

Guidance for specification option:

  • H1: 1200 mm.
  • H2: 1500 mm.
  • H3: 1800 mm.

Power consumption

Maximum 45 W.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany
