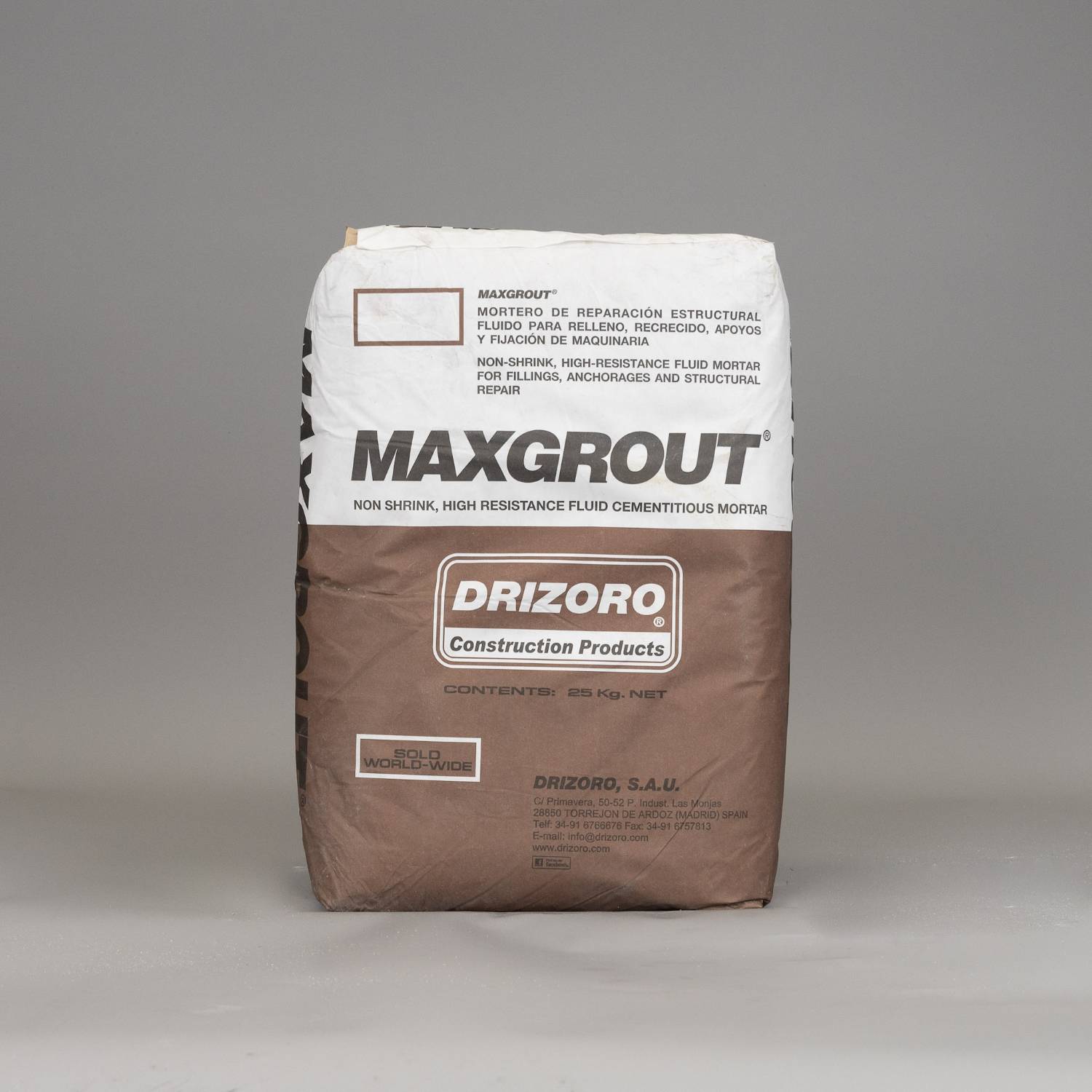

Maxgrout® - Waterproof mortar.
Verified by manufacturer over a year ago
Non-shrink, high resistance fluid mortar.
Application
Suitable for fillings, anchorages, and structural repairs, such as:
- Anchoring of pillars in concrete prefabricated structures.
- Filling of steel column bases.
- Beam support in bridges.
- Anchoring of bolts, cables, etc.
- Filling of machinery foundation between concrete and steel plates.
- Structural repair and strengthening of damaged or weak concrete structures such as foundations, beams, pillars, etc.
- Repairing joints in pavements.
- Void-filling corrective process and consolidation under concrete slabs.
Description
MAXGROUT® is a one-component, non-shrink, waterproof mortar formulated from special cement and well-graded mineral products that provide high mechanical properties and fluidity. It comes in powder form, and contains no chlorides nor metal particles. Features and advantages include:
- High early and ultimate strength.
- Waterproof, fireproof, non-corrosive and non-toxic.
- Non-shrink and slightly expansive (does not lose contact with the substrate where is placed).
- Resistant to water, oil, and grease.
- Unaffected by extreme temperatures once set.
- Very good adhesion on surfaces – becomes a structural part of the substrate and withstands repeated loads.
General information
Color | Grey |
Material | Cement |
Warranty description | Ten year |
Uniclass | |
NATSPEC National Classification System | 0341 Structural Steelwork 0310 Concrete - Combined |
SpecPack | 03310 Concrete 05100 Structural Steel |
SpeedSpec | 03310 Concrete 05100 Structural Steel |
SKU Code | GROUT25 |
Specification data - Cementitious grouts
Classification data | |
Sand or filler | Fine aggregates, 0–3 mm. |
Water | Clean potable water. |
Performance requirements | |
Compressive strength (minimum) | 78.5 N/mm² at 28 days. Manufacturer guidanceRefers to value when mixed with 14% of water. When mixed with 12% of water, value is at 89.2 N/mm² (28 days). |
Bleeding (maximum) | None. |
Cone fluidity (maximum) | >300 mm. Manufacturer guidanceRefers to slump value when mixed with 14% of water. When mixed with 12% of water, value is at 209 mm. |
Volume changes | 12–14%. |
Colour | Grey. |
Form | One-component powder. |
Setting time | 5–6 hours. Manufacturer guidanceAt 20°C. |
Sustainability data
Country of product manufacture | Spain |
Literature
Maxgrout®
