Procore A1®

Verified by manufacturer over a year ago

Procore A1® Solid Colours

PROBOND Architectural Variant:

A DtS non-combustible, superior construction grade aluminium cladding panel.

Jump to:
+61 1300 72 73 74 Website

Application

This product is ideal for the following applications:

  • Exterior cladding.
  • High-rise buildings.
  • Airport cladding.
  • Fascia.
  • Formwork.
  • Schools.
  • Hospitals.

Description

Procore A1® is a superior Deemed-to-Satisfy (DtS) non-combustible, construction grade aluminium cladding panel, with a unique profiled aluminium core and durable coating. It comes with significant features such as:

  • BCA approved Non-combustible.
  • Tested to AS1530.1 & AS1530.3
  • Non-Combustible aluminium core technology.
  • Zero Polyethylene.
  • Visually the same as traditional composite panels.
  • Cost-effective, large stock holdings and short lead times
  • CSIRO Certified.
  • Superior CNC, V-groove & fold performance.
  • Light-weight, only weighs 4.5kg/m2.
  • Enhance with high-quality PVDF coating system for long-term durability and optimum resistance to weather.
  • Requires minimal maintenance.
  • Delivers superior performance when fabricated, folded and formed.

General information

Color

-

Manufacturer guidance

Wide range of colours options are available. Check with the manufacturer.

Material

Aluminium.

Size

3200 x 1500 mm.

4000 x 1500 mm.

Manufacturer guidance

Custom sizes are available. Check with the manufacturer.

Uniclass

Pr_25_71_14_10 Aluminium-faced aluminium core panelsPrimary

NATSPEC National Classification System

0434 Cladding - Flat Sheets and Panels

0431 Cladding - Combined

SpeedSpec

07462 Cladding External Walls

SpecPack

07430 Sandwich Panels

Specification data - Aluminium-faced aluminium core panels

Classification data

Fire performance

-

Combustibility

Non-combustible.

Guidance for specification option:

Test method as per  AS 1530.1.

Fire hazard properties

-

Standard

To AS 1530.1 & AS 1530.3.

Group number

Group 1.

Flammability index

0.

Guidance for specification option:

Ignatability and heat index rating as per AS 1530.3.

Spread of flame index

0.

Guidance for specification option:

Test method for spread of flame as per AS 1530.3.

Smoke developed index

2.

Guidance for specification option:

Test method for smoke developed as per AS 1530.3.

Panel dimensions

-

Length

3200 mm.
4000 mm.

Width

1500 mm.

Overall thickness

4 mm.

Finish as delivered

-

Coating

PPG Kynar 500 PVDF-coating.

Dry film thickness

27 - 28 μm.

Guidance for specification option:

Overall paint thickness in microns.

0.20 - 0.30 mil (Primer).
0.70 - 0.80 mil (Topcoat).

Colour

Anthracite Grey PC6210.
Atomic Orange PC6135.
Bee Sting PC6244.
Brown Earth PC6272.
Bushland Green PC6227.
Candy Red PC6500.
Cherry Red PC6263.
Cool Grey PC6216.
Dandelion Yellow PC6239.
Denim Blue PC6208.
Dusky Beige PC6270.
Electric Lime PC6410.
Frisky Green PC6222.
Gloss Onyx Black PC6297.
Gloss Vivid White PC6011.
Golden Yellow PC6026.
Grey Blue PC6230.
Hot Flamingo PC6268.
Jet Black PC6299.
Lime Sherbert PC6221.
Monument PC6994.
Natural White PC6201.
Navigator Blue PC6231.
Navy Intenso PC6237.
Pale Sunset PC6245.
Red Terra PC6266.
Scarlet Pink PC6269.
Slate Grey PC6217.
Snorkel Sea PC6232.
Ultramarine Blue PC6478.

Manufacturer guidance

Colours may vary from the actual product due to print variations. Confirm colour against a panel sample. Check with the manufacturer.

Finish:

Satin or Gloss finish.

Guidance for specification option:

Finish for Gloss Onyx Black PC6297 and Gloss Vivid White PC6011.

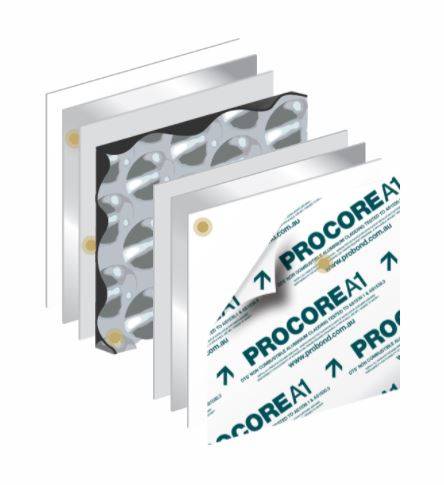

Core facing material

5005 Series marine grade aluminium.

Thickness

0.70 mm (Face).
0.50 mm (Back).

Adhesive

Henkel™ hot melt adhesive.

Core

Unique technology aluminium profiled sheet.

Sustainability data

Contains Red List materials

No

Recyclability

100% Recyclable.

Literature

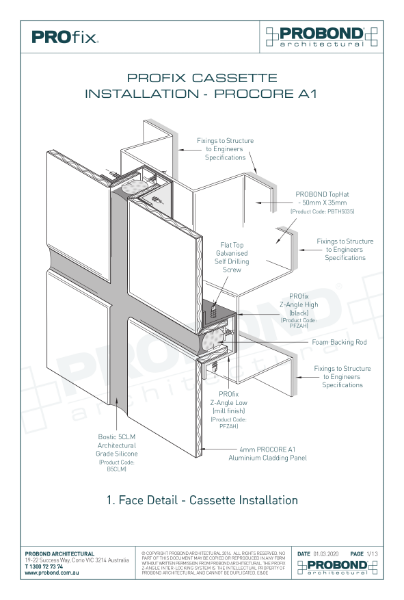

PROCORE A1 - Installation

PROCORE A1 - Installation

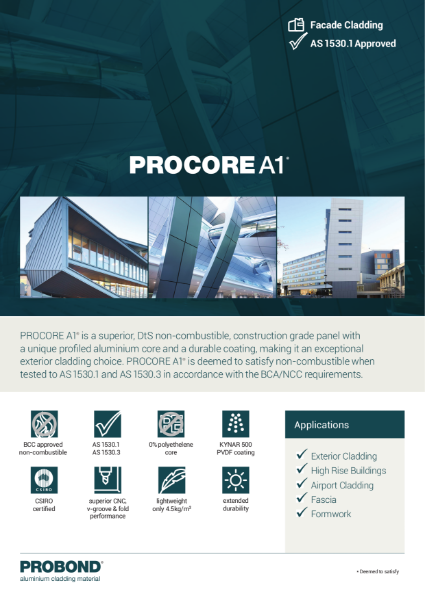

PROCORE A1 Overview

PROCORE A1 Overview

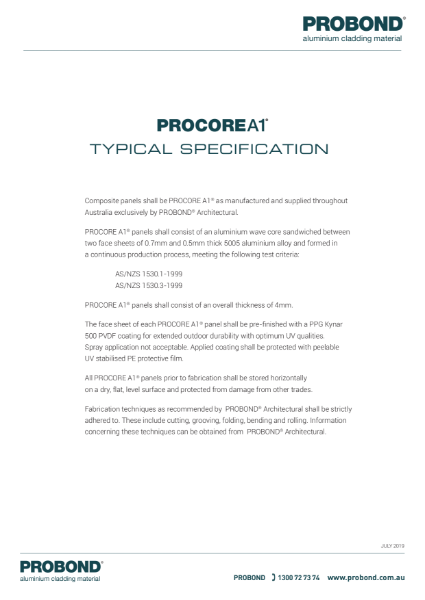

PROCORE A1 Typical Specification

PROCORE A1 Typical Specification

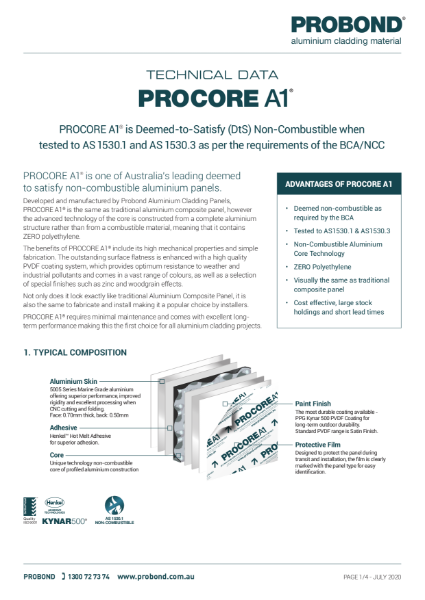

Procore A1 TDS

Procore A1 TDS

Non-Combustible Colour Range

Non-Combustible Colour Range

Case studies

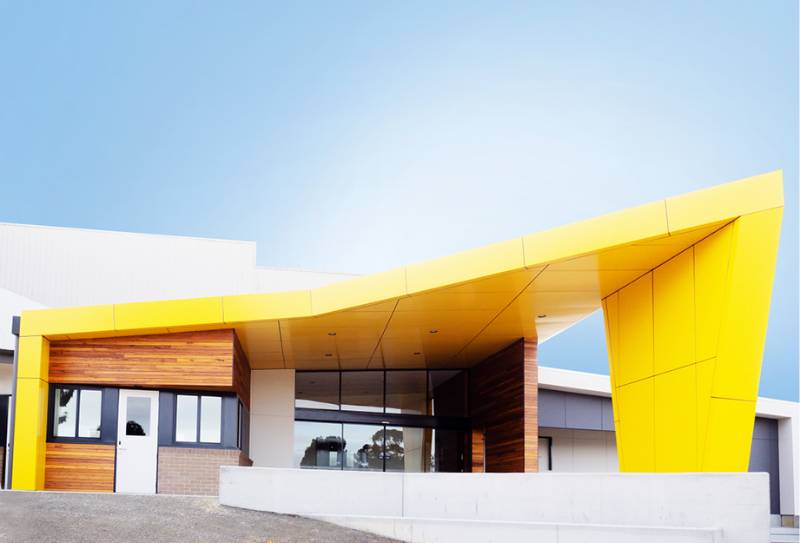

National Headquarters & Distribution Complex

National Headquarters & Distribution Complex

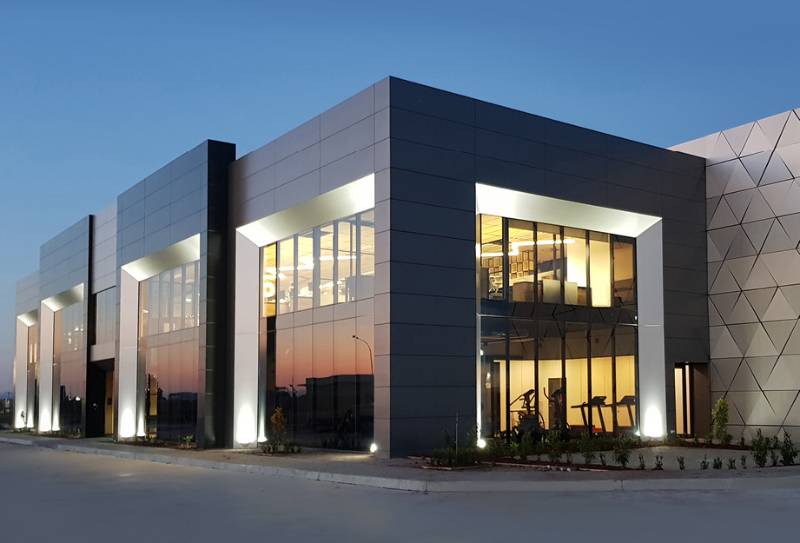

Technology Rooms
