Application

Joinery doors.

Description

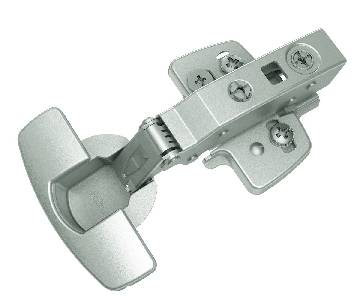

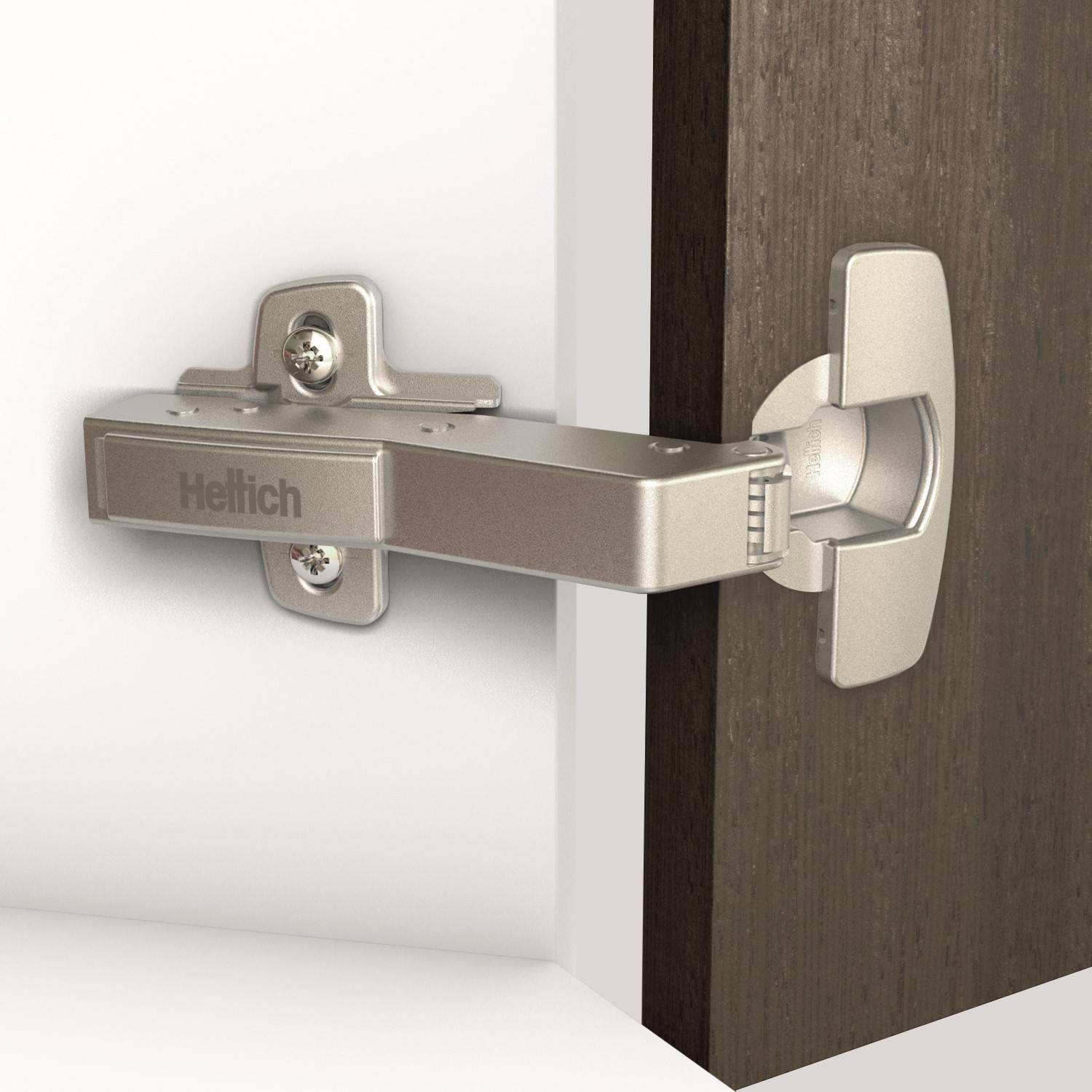

Fast assembly concealed hinges for all applications.

General information

Finish

Nickel Plated Steel.

Uniclass

Pr_30_36_36_11 Cabinet and countertop hingesPrimary

NATSPEC National Classification System

0551a Joinery – Manufactured Casework

0571 Workstations

0551 Joinery

0572 Miscellaneous Furniture

SpeedSpec

06400 Joinery

12720 Workstations

12300 Manufactured Casework

SpecPack

06400 Joinery

11460 Unit Kitchens

12300 Manufactured Casework

12720 Workstations

Specification data - Cabinet and countertop hinges

Classification data

Form

Concealed.

Size

Multiple sizes.

Material

Satin stainless steel, grade 316.

Finish

Powder coated.
Nickel Plated

Colour

Silver
Obsidian black

Execution

Fasteners for hardware

Model/ Size

Sensys 110° standard hinge 8645i / 8645 / 8675
Sensys 95° thick door hinge 8631i / 8631 / 8661

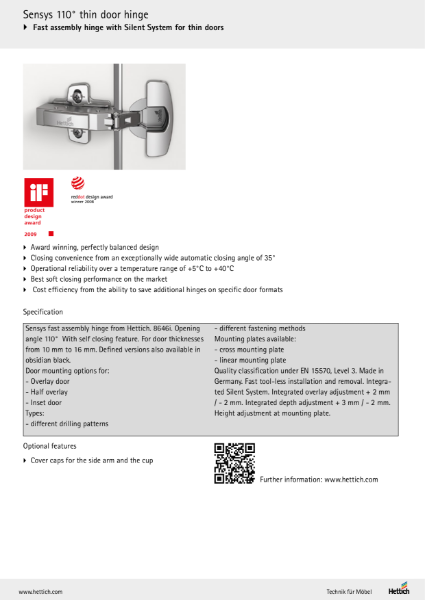

Sensys 110° thin door hinge 8646i / 8646
Sensys 165° zero protrusion hinge 8657i / 8657 / 8687
Sensys W30 angle hinge 8639i W30 / 8639 W30
Sensys W45 angle hinge 8639i W45 / 8639 W45 / 8669 W45
Sensys W90 angle hinge 8639i W90 / 8639 W90 / 8669 W90
Sensys aluminium framed hinge Sensys 8638i Intermat folding door hinge Intermat 9930 with cup in Sensys design

Sustainability data

Country of product manufacture

Germany

Literature

Product Range - Sensys Door Hinge System

Product Range - Sensys Door Hinge System

Intermat and Sensys Technical Manual

Intermat and Sensys Technical Manual

Product Catalogue - Intermat and Sensys Hinges System

Product Catalogue - Intermat and Sensys Hinges System
