Smokehalt V
Verified by manufacturer over a year ago
Large size smoke curtain with single overhead coiling.
Application

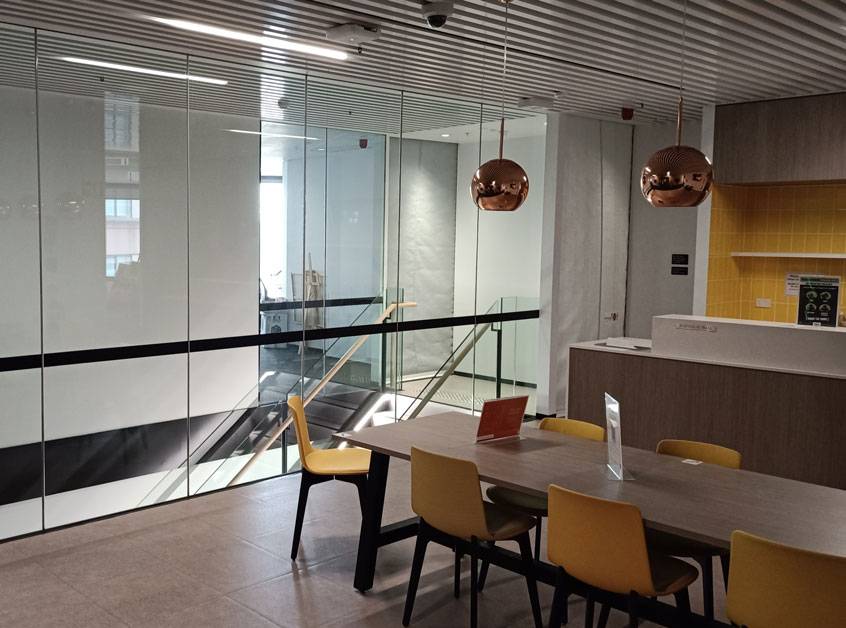

Suitable for small to medium size openings in both new and existing buildings, such as:
- Offices and shopping centres.
- Multi-storey apartments and hospitals.
- Atriums, lift shaft openings and smoke lobbies.
- Servery openings.
- Warehouses.
- Several types of commercial and industrial buildings.
Description
Smokehalt V is a smoke curtain considered as the largest single overhead coiling (no overlap) smoke curtain. Some of its features include:
- Complies with EN 12101.1 rated D30 through DH120.
- Tested in accordance with AS 1530.7.
- Compact head box.
- Automatic rewind.
- Lightweight.
- Gravity fail safe.
General information
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: Standard warranty. Manufacturer guidanceExtended warranty available in conjunction with back to back maintenance agreement. |
Uniclass | |
SpecPack | 08330 Roller Shutter Doors 10240 Grilles and Screens |
NATSPEC National Classification System | 0454 Overhead Doors 1002 Fire Services Design and Install |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - Vertical smoke curtains
Performance | |
Smoke performance level | |
Standard | To EN 12101-1. |
Value | ≤ 25 m³/h.Manufacturer guidanceRefers to fabric permeability only. Available in ratings of D30, D60 and D120. |
Smoke leakage | |
Standard | To AS 1530.7. |
Value | ≤ 75 m³/h.Manufacturer guidanceTested system is 3.3 x 3 m. |
Fire hazard properties | |
Standard | To AS/NZS 1530.3 and AS 3837. |
Group number | 1.Manufacturer guidanceTested in accordance with AS 3837. |
Spread of flame index | Manufacturer guidanceTested in accordance with AS 1530.3. |
Durability | 30 000 open-close cycles. |
Closing time | 150 mm/s (nominal). |
Time delay for deployment | Manufacturer guidanceUpon receipt of alarm or power outage. |
Time delay for rewind | Manufacturer guidanceUpon reset of the Fire Indicator Panel. |
Fail safe close | Manufacturer guidanceGravity fail safe. |
Battery back-up | Manufacturer guidanceCan be provided as an optional extra. |
Curtain | |
Size and shape (maximum) | Manufacturer guidanceAvailable in sizes up to 8 m W x 3 m H and 6 m W x 4 m H. Contact local manufacturer for specific dimension needs. |
Head box | |
Size | 165 mm H x 165 mm D.Manufacturer guidanceWidth varies depending on specified curtain size. Contact local manufacturer for specific dimension needs. |
Side guides | |
Material | Galvanised steel.Stainless steel. |
Size | 100 mm W x 50 mm D.Manufacturer guidanceProduct can be installed with or without side guides. |
Controls | Control box (250 x 200 x 75 mm).Guidance for specification option: Requires a 240 V, 10 A power supply and an alarm signal through a normally closed dry contact. |
Integral accessories | Alarm signal.Guidance for specification option: Should be in the form of a normally closed dry contact. A localised smoke or heat detector may also be used. |
Box weight | 20 kg/m of system width (for curtain heights up to 3 m). 25 kg/m of system width (for curtain heights up to 4 m). Manufacturer guidanceRefers to system weight. |
MaximumWorkingPressure | 20 Pa (fully closed curtain). Manufacturer guidanceRefers to maximum pressure resistance. |
Optional features | Battery back-up. Rewind switches. Curtain applied signage. Bottom bar cover. |
Installation | To be installed by Smoke Control approved installer network. |
Sustainability data
Country of product manufacture | Australia |
