Sorbertextile™ P44FR

Verified by manufacturer over a year ago

Pyrotek

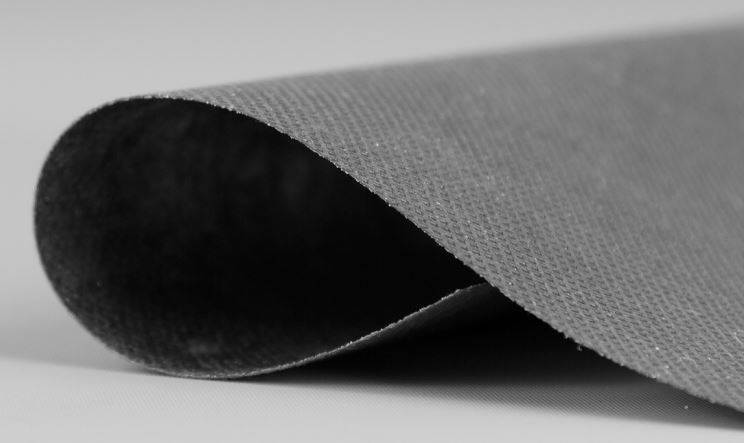

Engineered acoustic fabric with heat reactive adhesive.

Jump to:
+61 2 8868 2000 Website

Application

Suitable application behind perforated panels for use in:

  • Suspended ceilings.
  • Acoustic panel linings.


Description

Sorbertextile™ P44FR are non-woven acoustic textiles available with a coated heat reactive adhesive, providing excellent mechanical strength, opacity and permeability. Some of its significant features includes:

  • Excellent sound absorption properties and elegant appearance.
  • Prevents fibre release from materials such as polyester blankets, mineral wool or fibreglass.
  • NRC ≥0.70 for most commonly used perforated patterns.
  • Easy installation with heat reactive adhesive requires only 80°C.
  • Provide excellent mechanical strength, opacity and permeability.
  • Maximum recommended service temperature 80°C.
  • Unique & adequate solution for most acoustic installations.
  • Clean, light and safe to handle.
  • Fixed in place (not floating).
  • Can be supplied laminated to perforated panels with a pattern of choice.
  • Non-toxic and is safe to handle.
  •  Can be supplied and laminated to perforated panels with a pattern of choice (depending on MOQ).
  • Custom options are available depending on MOQ.


General information

Color

Black

White

Material

Non-woven acoustic textiles.

Size

1.2 x 50 m (roll).

1.2 x 200 m (roll).

Uniclass

Pr_25_57_90_85 Suspended fabric panelsPrimary

NATSPEC National Classification System

0511 Lining

SpecPack

09500 Suspended Ceilings

09260 Dry Wall Partitions and Linings

SpeedSpec

09500 Suspended Ceilings

09260 Dry Wall Partitions and Linings

Specification data - Suspended fabric panels

Fabric

Non-woven acoustic textiles with coated heat reactive adhesive.

Size

1.2 x 50 m (roll).

1.2 x 200 m (roll).

Coating

-

Colour

Black.

White

Fire performance

-

Standard

To AS 5637.1 and AS 1530.3.

Group number

Group 1.

Smoke growth rate index

0.

Guidance for specification option:

Flame propagation (Spread of flame index) result.

4.

Guidance for specification option:

Smoke development index result.

Manufacturer guidance

In accordance with AS 1530.3 Flame propagation (spread of flame index), smoke development index.

Average extinction area

With an average specific extinction area of less than 250 m2/kg.

Colour

Black (Standard).

White.

Guidance for specification option:

 Available depending on MOQ. Check with the manufacturer.

Material:

Non-woven acoustic textiles.

NominalThickness

0.37 mm.

Adhesive

Pre-applied fire resistant adhesive.

Fire performance

To AS 5637.1,AS 1530.2 and AS 1530.3.

Guidance for specification option:

Group 1 Classification as per AS 5637.1.


Test method as per AS 1530.2 and AS 1530.3.

Spread of flame - 0.

Flamibility index rating - 1.

Smoke development rating - 4.

Noise reduction coefficient

≥ 0.70.

Guidance for specification option:

Noise reduction coefficient varies depending on substrate condition. Check with the manufacturer for details.

Sustainability data

Contains Red List materials

No

Literature

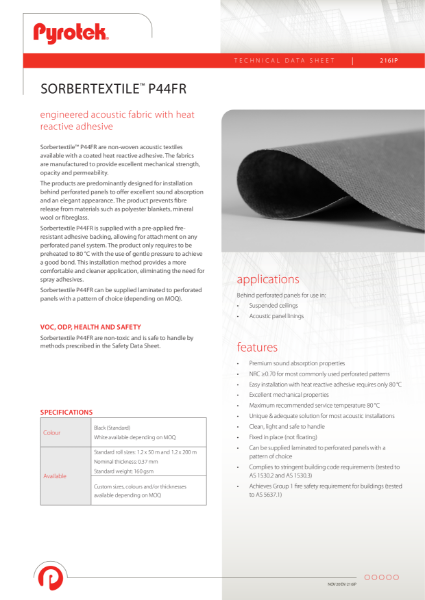

Sorbertextile™ P44FR
