Split Door Frames
Verified by manufacturer over a year ago
Door frames made of two halves that fit from each side. Only available in WA.
Application
Suitable for stud work applications or retrofitting into brick work or concrete work.
Description

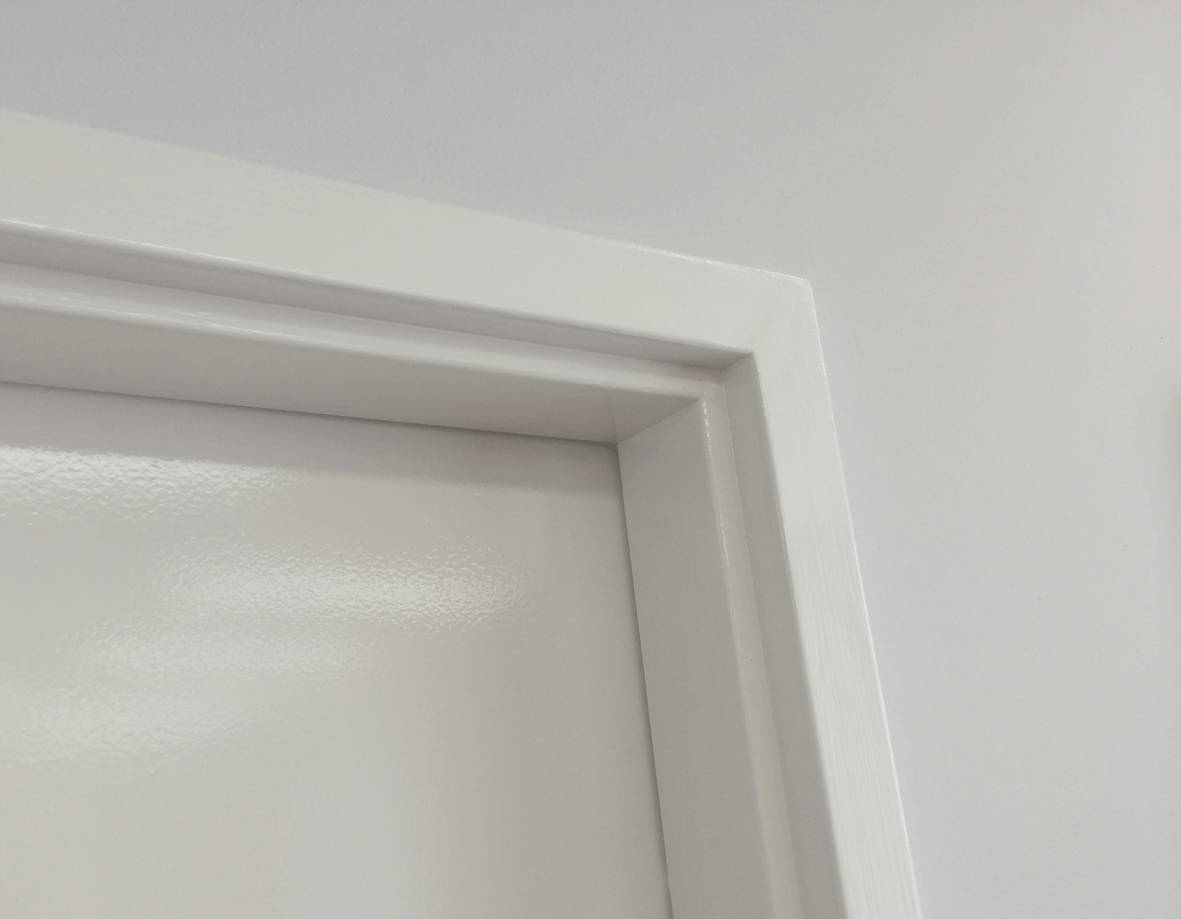

Split Door Frames are door frames made of two halves that are made to fit from each side. It has counter-sunk holes for fixing and removable spreader bars to each half of the frame. Some features of these frames include:
- Precision mitres.
- Unobtrusive hinges.
- Built-in architraves.
- Shock absorbing rubber buffers.
- Stainless steel striker plate.
- All dimensions can be altered to suit applications.
- Custom sizes available with additional lead time.
General information

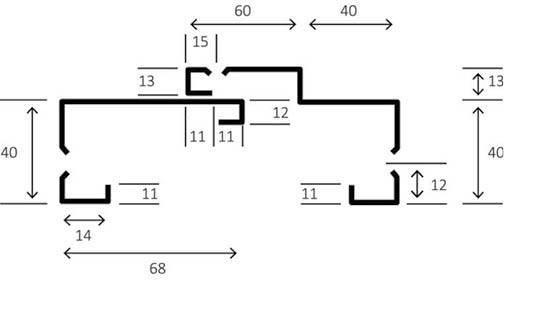

Shape | Standard profile. |
Material | Steel. |
Size | Manufacturer guidanceDimensions are altered to suit applications. To compute for needed stud opening size, add 40 mm to door height and 35 mm to door width. |
Uniclass | |
SpecPack | 08200 Doors, Door Frames and Hatches |
NATSPEC National Classification System | 0453 Doors and Access Panels |
SpeedSpec | 08200 Doors and Door Frames |
Specification data - Carbon steel door frames
Sustainability data
Country of product manufacture | Australia |
Literature
Metroll Metal Door Frames Design Guide
