Steel Framing
Verified by manufacturer over a year ago
Range of steel framing sections to suit any application.
Application

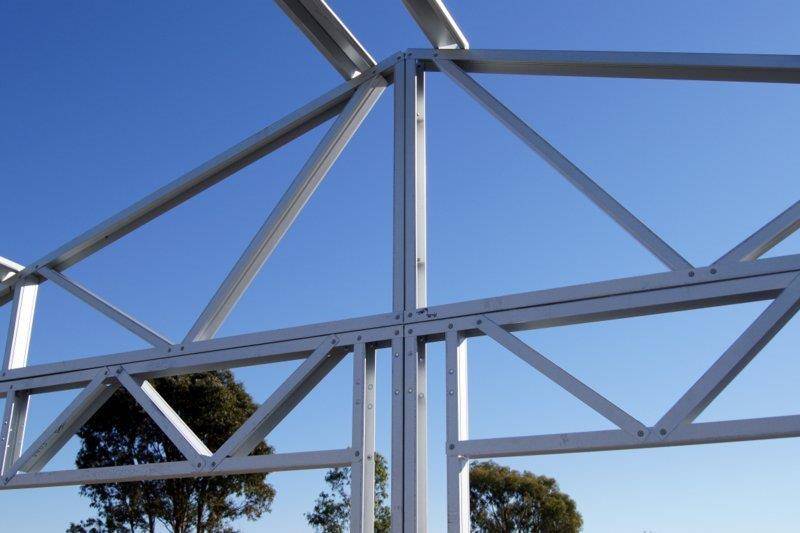

Suitable for framing in a variety of buildings, such as houses, small commercial buildings as well as partitions and facades. May be used alone or in combination with other building materials.
Description
Steel Framing is a range of steel framing sections manufactured from Truecore® and Zincalume® steel. Some features of these sections include:
- Design freedom.
- Compatibility with other building materials.
- Long life and high strength material.
- Fire resistant and rot-free.
- Standard or crimped ends for easy assembly.
- Straight and true; will not twist nor warp.
General information
Material | Steel. |
Uniclass | |
SpecPack | 05400 Cold-Formed Metal Framing |
NATSPEC National Classification System | 0342 Light Steel Framing |
SpeedSpec | 05400 Cold Formed Metal Framing |
Specification data - Cold-formed galvanized steel sections

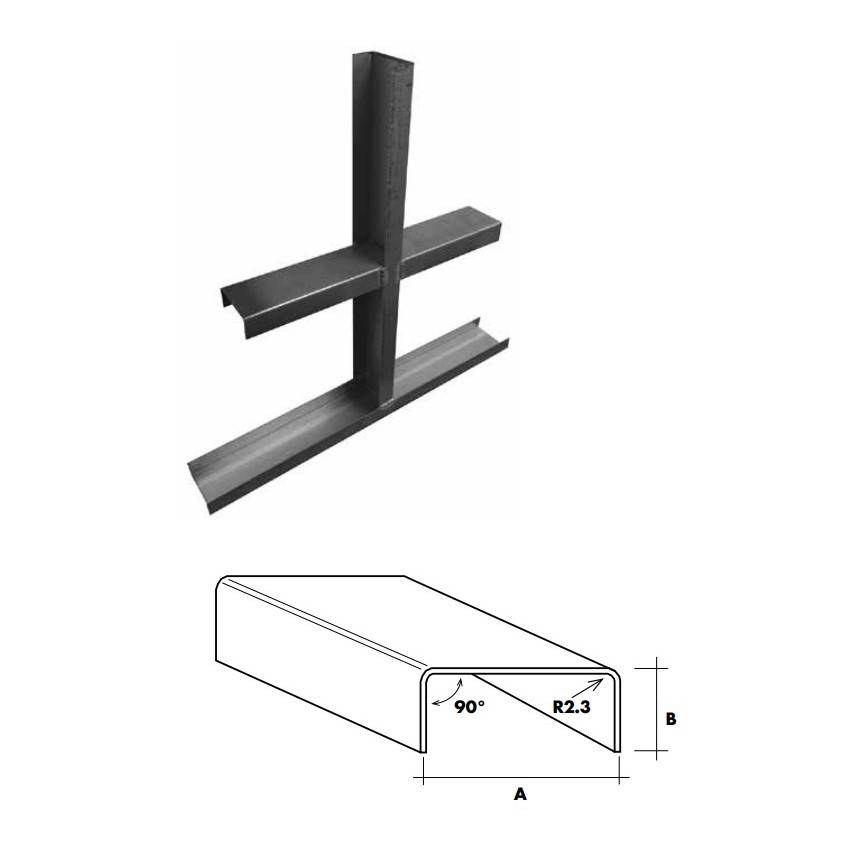

Primary components | C-Section. |
Material | |
Standard | To AS/NZS 4600. |
Thickness | 1.15 mm. |
Corrosion protection | |
Standard | To AS 1397. |
Class | AM150 (Truecore® steel).Z275 (Zincalume® steel). |
Steel grade | G500. |
Material | Truecore® steel. Zincalume® steel. |
Stud configuration | Standard plate (77 mm depth x 34 mm flange). Standard stud (75 mm depth x 35 mm flange). Standard noggin (72 mm depth x 36 mm flange). Manufacturer guidanceTolerance of ±1 mm. |
Stud height | 2450 mm. 2750 mm. 3000 mm. 3300 mm. 3600 mm. Manufacturer guidanceTolerance of ±1 mm. |
Sustainability data
Country of product manufacture | Australia |
Literature
Steel Wall Framing Design Guide
