Supatile 3D

Verified by manufacturer over a year ago

Supafinish (Veneer and Coloured Laminates)

Supawood Variant:

Custom 3D ceiling effects.

Jump to:
+61 1800 002 123 Website

Application

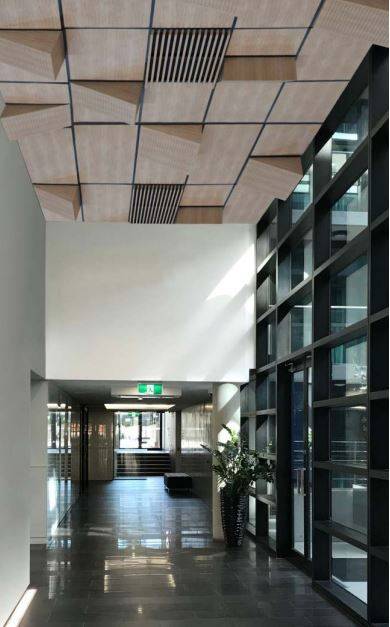

Suitable for halls and auditoriums, boardrooms, meeting spaces, foyers and lobbies.

Description

Supatile 3D is a range of fully customisable ceiling tiling that vastly expands tile design options while simplifying installation and eliminating the potential for cost over-runs.

General information

Warranty description

Ten years.

Uniclass

Pr_35_93_13_94 Veneered wood composite infill unitsPrimary

NATSPEC National Classification System

0533 Suspended Ceilings - Ceiling Units

0531 Suspended Ceilings - Combined

SpecPack

09500 Suspended Ceilings

SpeedSpec

09500 Suspended Ceilings

Specification data - Veneered wood composite infill units

Unit size

-

Face dimensions

600 x 600 mm.

Thickness

-

Manufacturer guidance

Customisable depths up to 180 mm. Contact manufacturer for details.

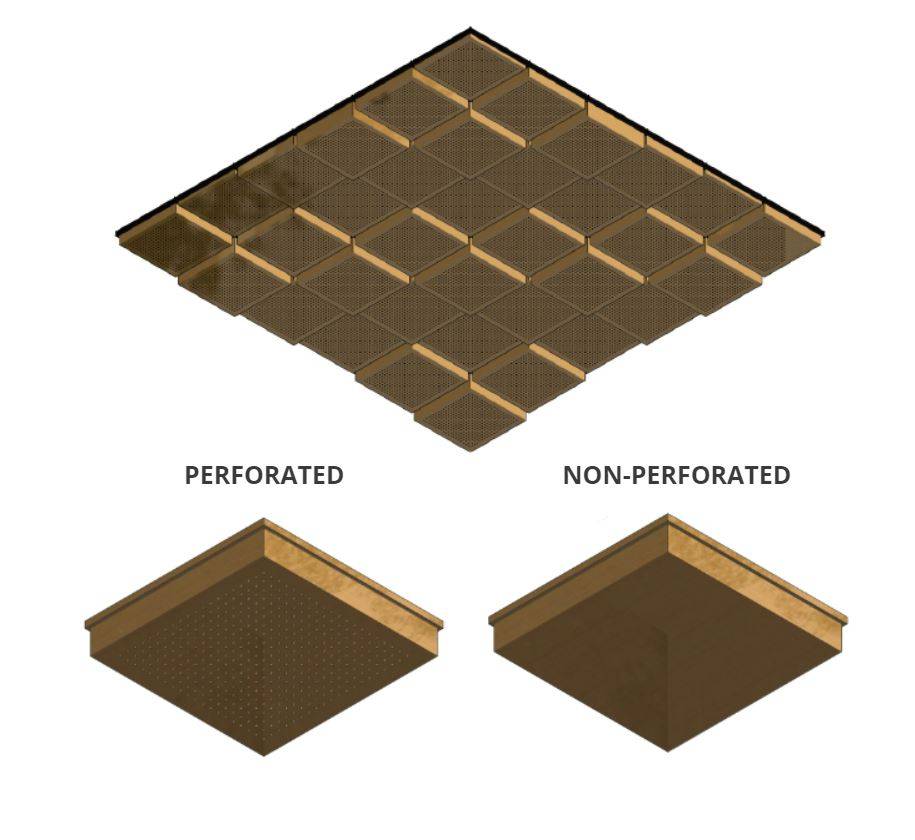

Surface pattern

Perforated.

Solid.

Edge profile

-

Manufacturer guidance

Can be custom-made according to specifications.

Fire performance

-

Standard

To BCA C1.10.

Group number

1.

2.

3.

Acoustic performance

-

Standard

To AS 1045:1988.

Minimum noise reduction coefficient (NRC)

0.70–0.90.

Execution

Panel installation to be as per manufacturer's instructions and AS/NZS 2785.

Grid system

Supatile 2-way grid system.

Grid colour

White.

Anodised.

Black.

Panel configuration

Type A3.

Type A8.

Type A13.

Type B16.

Type C11.

Applied finish

Supafinish.

Colour and finish

Black SF.

Blackbutt SF.

Fusion Maple SF.

Hoop Pine Classic SF.

Hoop Pine Limed SF.

Show more

Backing

Black acoustic textile (IAT).

HP50 bulk insulation blanket.

Joints

25 mm black express joints.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia
