Supatile Drop-In Tiles

Verified by manufacturer over a year ago

Supafinish (Veneer and Concept Laminates)

Supawood Variant:

Feature drop-in tiles.

Jump to:
+61 1800 002 123 Website

Application

Suitable for halls and auditoriums, boardrooms, libraries and classrooms, offices, meeting spaces, foyers and lobbies.

Description

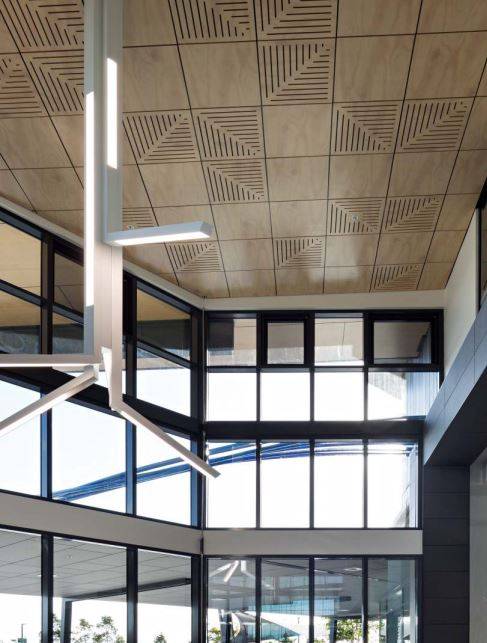

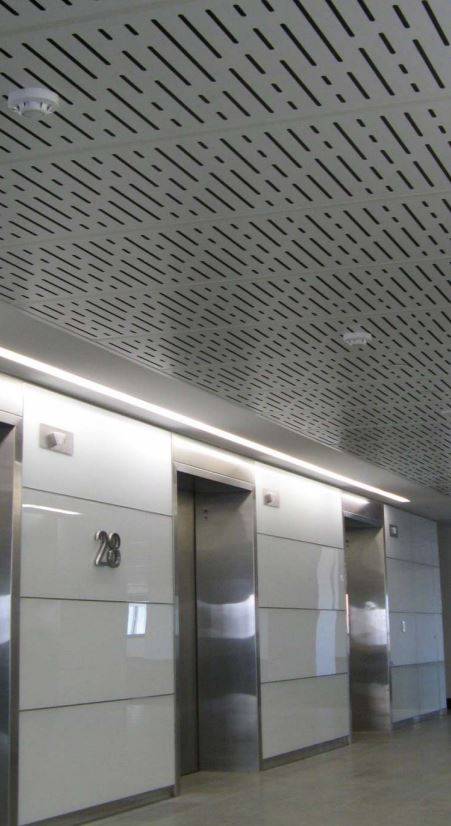

Supatile Drop-In Tiles (Supatile DIT) are feature drop-in tiles with visual appeal and design flexibility. These tiles fit into regular ceiling grid systems including existing grid systems and are available in a range of configurations and finishes.

General information

Warranty description

Ten years.

Manufacturer guidance

System as a whole is to have a minimum of ten-year warranty by the manufacturer.


Proof of validity of manufacturer’s warranty is to be provided to the superintendent before practical completion.

Uniclass

Pr_35_93_13_94 Veneered wood composite infill unitsPrimary

NATSPEC National Classification System

0533 Suspended Ceilings - Ceiling Units

0531 Suspended Ceilings - Combined

SpecPack

09500 Suspended Ceilings

SpeedSpec

09500 Suspended Ceilings

Specification data - Veneered wood composite infill units

Unit size

-

Face dimensions

1200 x 600 mm.

600 x 600 mm.

1200 x 300 mm.

Manufacturer guidance

Can be custom-made according to specifications. Contact manufacturer for details.

Thickness

-

Manufacturer guidance

Can be custom-made according to specifications. Contact manufacturer for details.

Surface pattern

Solid or smooth.

Perforated Dots SP1/60 (4.5% open area).

Perforated Dots SP1/70 (6.2% open area).

Perforated Dots SP1/100 (12.6% open area).

Perforated Dots SP2/60 (9.1% open area).

Perforated Dots SP2/70 (12.3% open area).

Perforated Dots SP2/100 (25.1% open area).

Perforated Dots SP2/120 (35.1% open area).

Angle (14% open area).

Breeze (28% open area).

Bubbles (15% open area).

Curve (15% open area).

Cyberspace (13% open area).

Stripe (16% open area).

Two Stripe (15% open area).

Zebra (24% open area).

Manufacturer guidance

Perforation diameter is indicated at the end of each product type, e.g. Perforated Dots SP1/60 is Supawood type SP1 with 6.0 mm perforations.

Edge profile

DIT Flush.

DIT Rebate.

Fire performance

-

Standard

To BCA C1.10.

Group number

1.

2.

3.

Acoustic performance

-

Standard

To AS 1045:1988.

Minimum noise reduction coefficient (NRC)

0.70–0.90.

Manufacturer guidance

Acoustic textile should have a minimum thickness of 0.3 mm.

Grid system

Supatile 2-way grid system.

Grid colour

White.

Anodised.

Black.

Applied finish

Supafinish.

Colour and finish

Black SF.

Blackbutt SF.

Fusion Maple SF.

Hoop Pine Classic SF.

Hoop Pine Limed SF.

Show more

Backing

Black acoustic textile (IAT).

Joints

25 mm black express joints.

Execution

Installation to be done by a Supawood-certified ceiling and partition contractor.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia
