Sylomer®

Verified by manufacturer over a year ago

Pyrotek

Special Polyurethane (PUR) elastomer develope by Getzber.

Jump to:
+61 2 8868 2000 Website

Application

Sylomer is used in its cellular or compact form for many applications such as:

  • Application in civil engineering and machinery.
  • Can be used as an elastic interlayer, like a spring.
  • Use for transport application.
  • Prevents vibration transfer in floating interiors including floors, bulkheads and ceilings.
  • Isolation of machinery.
  • Isolation of impact generated noise.

Description

A special PUR elastomer manufactured by Getzner, which features a cellular, compact form and is used as a compression-loaded elastic support element.

  • High elasticity, elastic polyurethane material deforms under tension and compression loads, but always returns to its original form.
  • Isolate and reduce vibrations which can have negative effects on materials, human and the environment.
  • Very low amplitude dependence.
  • High fatigue strength.
  • Used as an elastic interlayer like a spring.
  • Cellular structure provides deformation volume under static and dynamic loads resulting for elastic bearings with full-surface load transmission.
  • Resistant to substances such as water, concrete, oils and fats, diluted acids and bases.


Product Series:

  • SR 11.
  • SR 18.
  • SR 28.
  • SR 42.
  • SR 55.
  • SR 110.
  • SR 220.
  • SR 450.
  • SR 850.
  • SR 1200.

General information

Material

Elastic polyurethane.

Uniclass

Pr_25_71_63_67 Polyurethane (PUR) foam boardsPrimary

SpeedSpec

07200 Thermal and Acoustic Insulation

SpecPack

07200 Thermal and Acoustic Insulation

NATSPEC National Classification System

0472 Acoustic Insulation

Specification data - Polyurethane (PUR) foam boards

Standard

To AS/NZS 4859.1.

Fire hazard properties

-

Standard

To DIN 4102.

Flammability index

Combustible.

Guidance for specification option:

Class B2 - flammability class as per DIN 4102.

Compressive strength (minimum) at 10% compression

Less than 5%.

Guidance for specification option:

Compression set as per EN ISO 1856.

Form

Compression-loaded and flat elastic layers.

Material:

Elastic polyurethane.

Sustainability data

Country of product manufacture

Australia

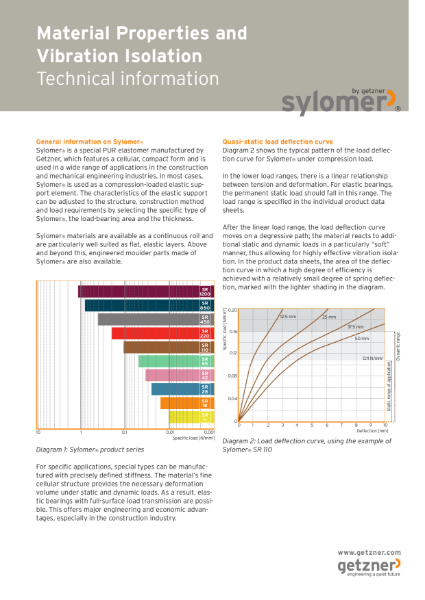

Literature
