Timber Click-on Screens

Verified by manufacturer over a year ago

Sculptform

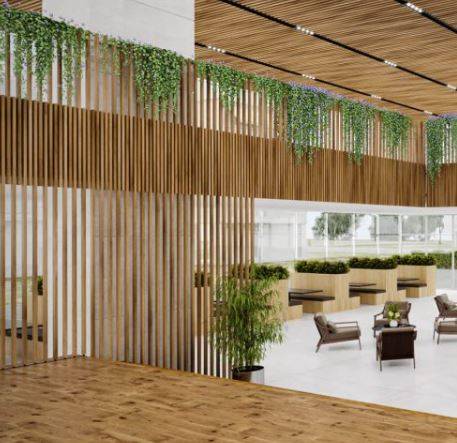

Proprietary Timber screen system, with customisable batten size, length and spacing options, pre-indexed with minimal fixings to create feature free-standing screens and barrier infills.

Jump to:
+61 3 5446 0100 Website

Application

Internal and external applications.


They can be used for a range of applications such as:

  • Free standing screens.
  • Office dividers.
  • Balustrade infills.
  • Staircase barriers.
  • Facade screens.

Description

Click-on Screens are excellent as balustrade infills, fulfilling the need to make barrier systems beautiful.

The detailed design and strong engineering allows for large batten spans between fixings which can also be invisible for a 360-degree clean, unhindered design.

They’ve been engineered to meet high load requirements and comply with C3 and C5 balustrade infill ratings according to AS1170.1.

General information

Color

Clear

Manufacturer guidance

Default is clear, matt finish. Also available in a range of stains and tints.


Various colours available. Colours are reproduced as accurately as possible, recommended to request product samples before final selection. Whilst products are produced as consistently as possible, each species has their own natural variations of colour, features and characteristics.


See manufacturer's website for more details.

Finish

Water-based Lacquer.

Stabilizing penetrative oil.

Material

Timber.

Shape

Rectangle

Size

-

Manufacturer guidance

Various sizes available.

Length

3000 mm

Manufacturer guidance

Maximum length (timber species dependant).

Large volumes not available. For confirmation, manufacturer with project requirements.

If longer than 3 m is required, finger joined battens up to 4.2 m are an option for Australian Ash and American Oak only.

Uniclass

Ss_25_12_65_75 Relocatable partition systemsPrimary
Ss_25_60_05_05 Balustrade and guarding systems
Pr_40_30_20_65 Privacy screens

NATSPEC National Classification System

0520 Partitions - Combined

0521 Partitions - Demountable

Specification data - Relocatable partition systems

System performance

Material and product performance

Panel partitioning

Partition panels.

Applied finishes

Water-based Lacquer.

Stabilizing penetrative oil.

Colours

Raw.

Clear oil.

Clear poly.

Ultraclear enviropro.

Light oak enviropro.

Batten size

30 x 60 mm.

Guidance for specification option:

30 mm, 50 mm and 80 mm spacing options.

30 x 80 mm.

Guidance for specification option:

50 mm, 80 mm and 100 mm spacing options.

30 x 130 mm.

Guidance for specification option:

80 mm, 100 mm and 130 mm spacing options.

Batten centres (maximum)

1.5 m - Spotted gum.

Guidance for specification option:

Interior and Exterior.

For exteriors, site specific engineering loads have not been considered such as wind or barrier loads. Recommended to consult structural engineer for confirmation.

3 m - Australian ash.

Guidance for specification option:

Interior only.

1.5 m - American oak.

Guidance for specification option:

Interior only.

Gap

25 mm minimum space.

Manufacturer guidance

If screen is forming a barrier, the maximum gap is 120 mm according to the 1170 Australian Standard.

MountingType

Back mounted configuration.

End mounted configuration.

Combination back/ end.

Fixing clips

Back mount fixed.

Guidance for specification option:

Back when using the Back Mount Method a 20 mm clear gap is required above or below the batten to enable installation and removal of the battens.

Back mount float.

Guidance for specification option:

Back Mount Floating clip is only designed to take up to ± 5 mm for installation and thermal movement. Not suitable for building movement. All mounting tracks to be fixed to a continuous frame that eliminates building movement. If screen is a slab to slab application, or building movement is expected, refer to the End Mount floating clip.

End mount fixed.

End mount float.

Guidance for specification option:

The End Mount floating clip can take up to ± 25 mm of Building movement if installed with a 25 mm gap under the batten.

Track

Split track - 45 w x 25 d (mm).

Guidance for specification option:

Used in straight applications for both back mount and end mount. Designed to span up to 1200 mm between balustrade posts. Track has pull out adjustment from 25-35 mm, to allow onsite packing.

Slim Track - 45 w x 5 d (mm).

Guidance for specification option:

Default end mount track, designed to be slim to the floor and ceiling. Used for back mount curves down to a 600 mm Radius. Fixing of this track must be through the centre of the clip casting.

Direct fix.

Guidance for specification option:

Where no track is desired for both back mount and end mount. Complex site specific spacing. Sculptform does not take responsibility for the clip to substrate connection. Screw not supplied by Sculptform. Suitable fixing needs to be considered by the installer. M5 or 10 g countersunk screw is most suitable.

Manufacturer guidance

Mounting track type.

Sustainability data

Country of material origin

Australia

Recyclability

-

Manufacturer guidance

Aluminium mounting tracks are infinitely recyclable.
