Compact Laminate Colour Palettes - ComLam colours

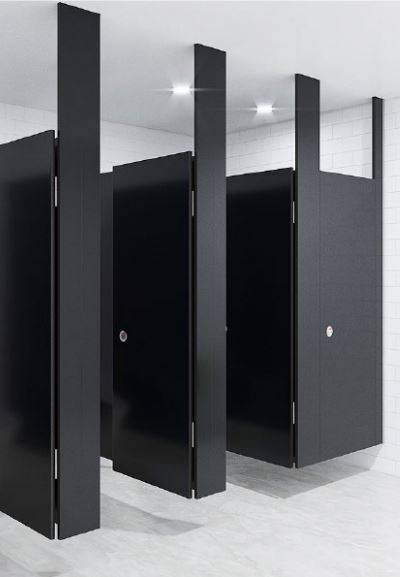

Ceiling Suspended Floating Base Toilet Cubicle System.
Designed particularly for interior wet and high traffic environments such as:
CS cubicles are an enduring classic in TPI’s range, design with floating base. TPI’s superior engineering means CS cubicles remain solid, rigid and sturdy, while avoiding floor connections the CS cubicle eliminates dirt traps and mop detritus ensuring a pleasant and airy environment. Easy to clean also means lower maintenance costs.
Material Benefits:
13mm Compact Laminate
32mm Decorated HMR P/Board with 18mm divisions.
Highly moisture resistant board, factory laminated on both sides with a hard-wearing decorative melamine surface.
12 mm Acrylic – Zenlolite (Doors only)
Made from two layers of acrylic, co-extruded into a single sheet. A vibrant colour layer is fused with a stunningly clear top layer to create a panel of incredible depth, gloss and clarity. It is easy to clean and repairable making it perfect for graffiti prone areas that need a sophisticated Glass-like Toilet Partition.
Available in 32mm Timber Veneer with 18mm divisions.
Color | Manufacturer guidanceCompact laminates colour options are available in:
Also available in other board suppliers colour range. To check with the manufacturer. |
Material | Compact laminate. Decorated HMR P/Board with 18mm divisions. Timber Veneer with 18mm divisions. Laminated acrylic (Door panels only). |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Seven year |
Uniclass | |
SpecPack | 10150 Toilet Compartments |
SpeedSpec | 10150 Toilet and Similar Compartments |
NATSPEC National Classification System | 0525 Cubicle Systems |
Enclosures | |
Panels | Compact laminate.Decorated HMR P/Board with 18mm divisions.Timber Veneer with 18mm divisions. |
Panel supports | Ceiling fixed. |
Access | |
Doors | Compact laminate.Decorated HMR P/Board with 18mm divisions.Timber Veneer with 18mm divisions.Laminated acrylic. |
Hardware | Metlam® Xcel series (Standard).Manufacturer guidanceAvailable in wide range of door furniture options: Metlam® Xcel Designer Black Series. Novas Pinnacle. Novas Ulitma. Metlam® 300. Allgood Modric (optional for 32mm Decorated HMR P/Board only). |
System accessories | TPI’s patented Modulux® Total Privacy Solution.Guidance for specification option: For ultimate cubicle privacy solutions. Only available in 13 mm Compact Laminate and 12 mm Laminated Acrylic doors. |
Standard | To AS 1428.1 - 2009. |
Overall height | 3000 mm. |
Cubicle depth | 1600 mm. |
Width | 900 - 920 mm. Guidance for specification option: With frontal width at 260 mm minimum for structural integrity. |
Door width | 595 – 600 mm. Guidance for specification option: Standard door width. 720 - 750 mm. Guidance for specification option: Ambulant door width. |
Height | 1700 mm. |
Floor Clearance | 200 mm. |
Thickness | 12 mm. Guidance for specification option:
13 mm. Guidance for specification option:
32 mm. Guidance for specification option:
33 mm. Guidance for specification option:
|
Fixing | Screw fixing. |
Aluminium profile finish | Square clear anodised. Square powdercoated. |
Colour | Black. Charcoal. White. |
Country of product manufacture | Australia |
