Urinal screen - Blade Mounted

Verified by manufacturer over a year ago

Compact Laminate Colour Palettes - ComLam colours

Toilet Partition Industries Variant:

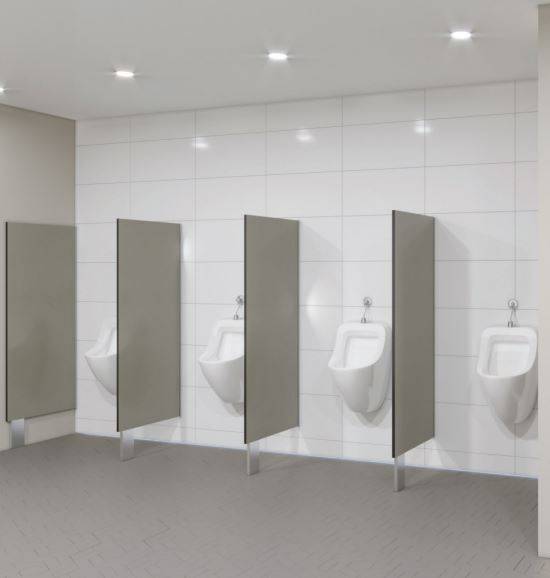

Blade mounted Urinal screen.

Jump to:
+61 1 300 400 711 Website

Application

Recommended urinal / privacy screen for offices and restaurants.

Description

Stainless steel blade mounts urinal partition with no panel touching the floor, allowing construction from classic structural board. Available in wide range of colours and textures and allows matching with other joinery finishes.


Material Benefits:


13 mm Compact Laminate

Available in a variety of design alternatives due to the range of colours and surface finish options.

  • Impact, fire and scratch-resistant.
  • Waterproof.
  • Easy to clean.
  • Bacteria resistant.

General information

Color

-

Manufacturer guidance

Available in wide range of colour options. To check with the manufacturer.

Material

Compact laminate (HPL) boards.

Decorated HMR / P Board.

Timber veneer.

Shape

Rectangle

Width

600 mm

Height

1800 mm

Warranty description

Seven year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

NATSPEC National Classification System

0525 Cubicle Systems

SpecPack

10150 Toilet Compartments

SpeedSpec

10150 Toilet and Similar Compartments

Specification data - Panel cubicle systems

Enclosures

-

Panels

Compact laminate (HPL) boards.

Decorated HMR / P Board.

Timber veneer.

Panel supports

Blade legs.

Colour

Black.

Charcoal.

White.

Overall height

1800 mm.

Cubicle depth

600 mm.

Thickness

13 mm.

Guidance for specification option:

Compact laminate thickness.

18 mm.

Guidance for specification option:

  • Laminated board thickness.
  • Timber veneer thickness.

32 mm.

Guidance for specification option:

  • Laminated board thickness.
  • Timber veneer thickness.

Floor Clearance

200 mm.

Aluminium profile finish

Square clear anodised.

Square powder coated.

Fixing

Screw fixed.
