Verified by manufacturer over a year ago
ZINCALUME® Steel
Contemporary gutter profile. Available in WA only.
Suitable for new buildings or as update to existing dwellings. Available in Western Australia only.
AUSTRALIAN STANDARDS
Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.
Fielders steel products comply with:

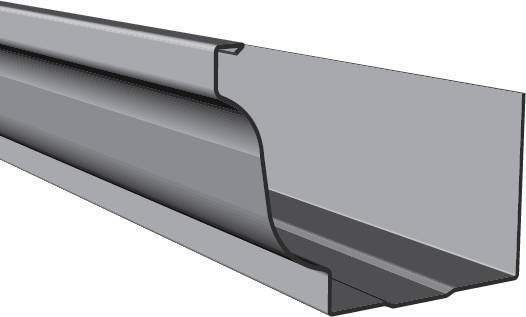

Wide Based Ovolo Gutter is contemporary guttering profile. Some of its features include:
Material | Steel. |
Shape | Other Manufacturer guidanceProfile has a convex frontage, i.e. an ovolo. |
Width | 129.40 mm |
Height | 94.30 mm |
Warranty description | 20 years. Manufacturer guidanceCovered by BlueScope material warranties. All COLORBOND® steel gutters have a warranty of up to 20 years, subject to project assessment and terms and conditions. |
Uniclass | |
SpecPack | 07310 Slate Roofing 07320 Tile Roofing 07410 Insulated Roof and Wall Panels 07600 Metal Roofing, Siding and Roof Plumbing |
SpeedSpec | 07610 Roofing and Roof Plumbing |
NATSPEC National Classification System | 0428 Roofing – Insulated Panel Systems 0427 Roofing - Tiles 0426 Roofing - Slate 0423 Roofing – Profiled Sheet Metal 0421 Roofing - Combined |
Standard | To AS 1397 and AS/NZS 2179.1. |
Size (nominal width) | 129.40 mm curved towards 85 mm base.Manufacturer guidanceRefers to effective gutter width. |
Thickness or gauge | |
Cross sectional area of gutter ≤ 10 000 mm² | 0.50 mm.Manufacturer guidanceRefers to metal gauge of gutter profiles less than 10 000 mm². |
Corrosion protection | |
Class | AM125. |
Finish | Natural. |
Colour | Standard ZINCALUME steel colour. |

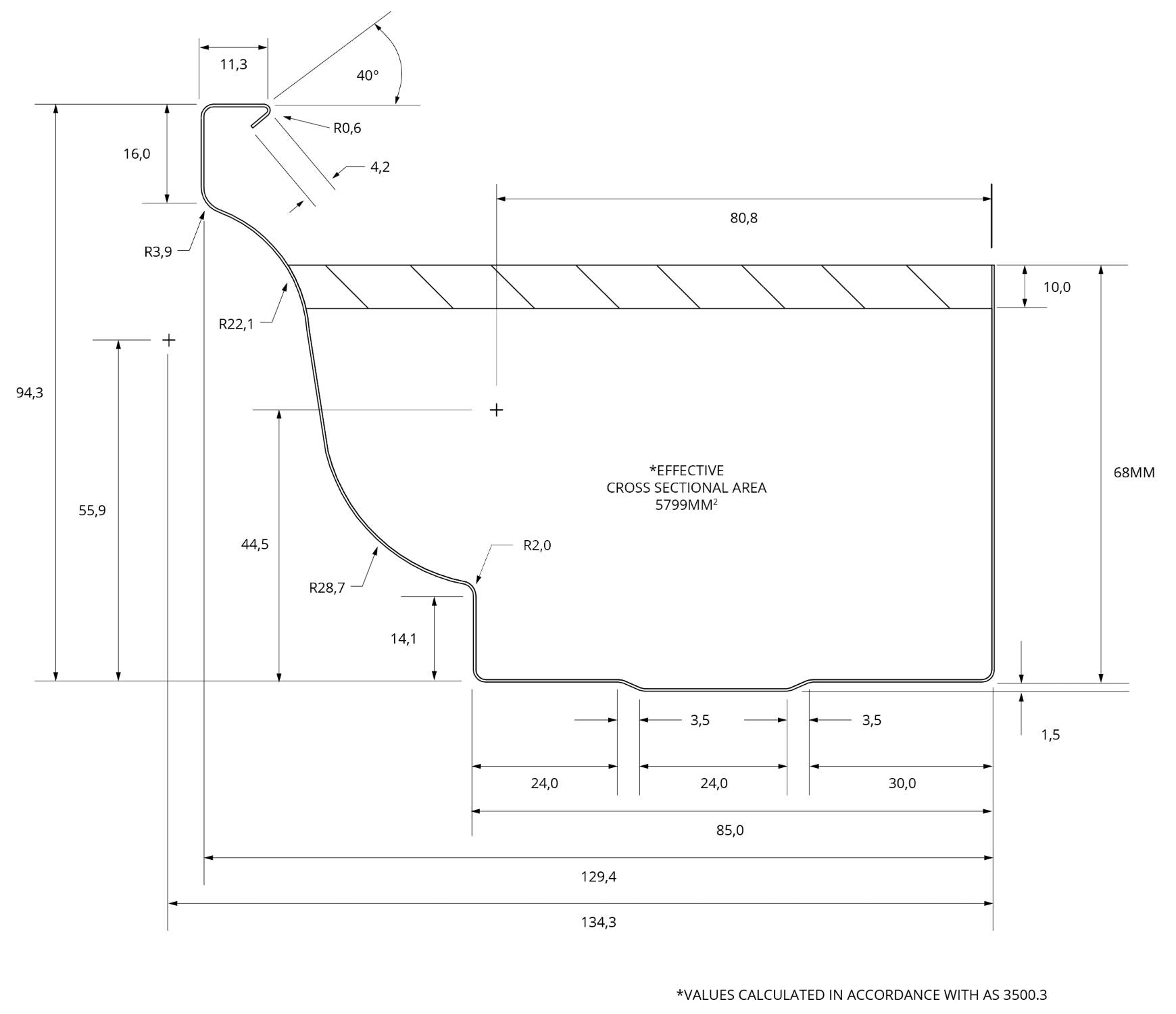

CrossSectionArea | 5799 mm². Manufacturer guidanceRefers to Effective Cross Sectional Area (ECA). ECA is 10 mm below the overflow level. |
Height | 94.30 mm with overflow level at 68 mm. |
Length | Manufacturer guidanceSheets are supplied custom cut to length to suit project requirements. Transportation limits apply. |
Material | ZINCALUME® steel. |
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% Recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % Manufacturer guidanceMaximum value only. Product is made with 15–20% recycled content. |
