Winglock Swing - Swing access gate.

Verified by manufacturer over a year ago

Boon Edam Australia Pty Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Single wing access gate.

Jump to:
BOS
+61426703326 Website

Application

Suitable application to areas for foot traffic only such as:

  • Corporate offices
  • Multi-storey tenant buildings
  • Medical and pharmaceutical facilities
  • Transportation Hubs
  • Banks
  • Public spaces (museums, cinemas, swimming pools)
  • Schools, universities and colleges
  • Sports facilities
  • Government and embassy buildings

Description

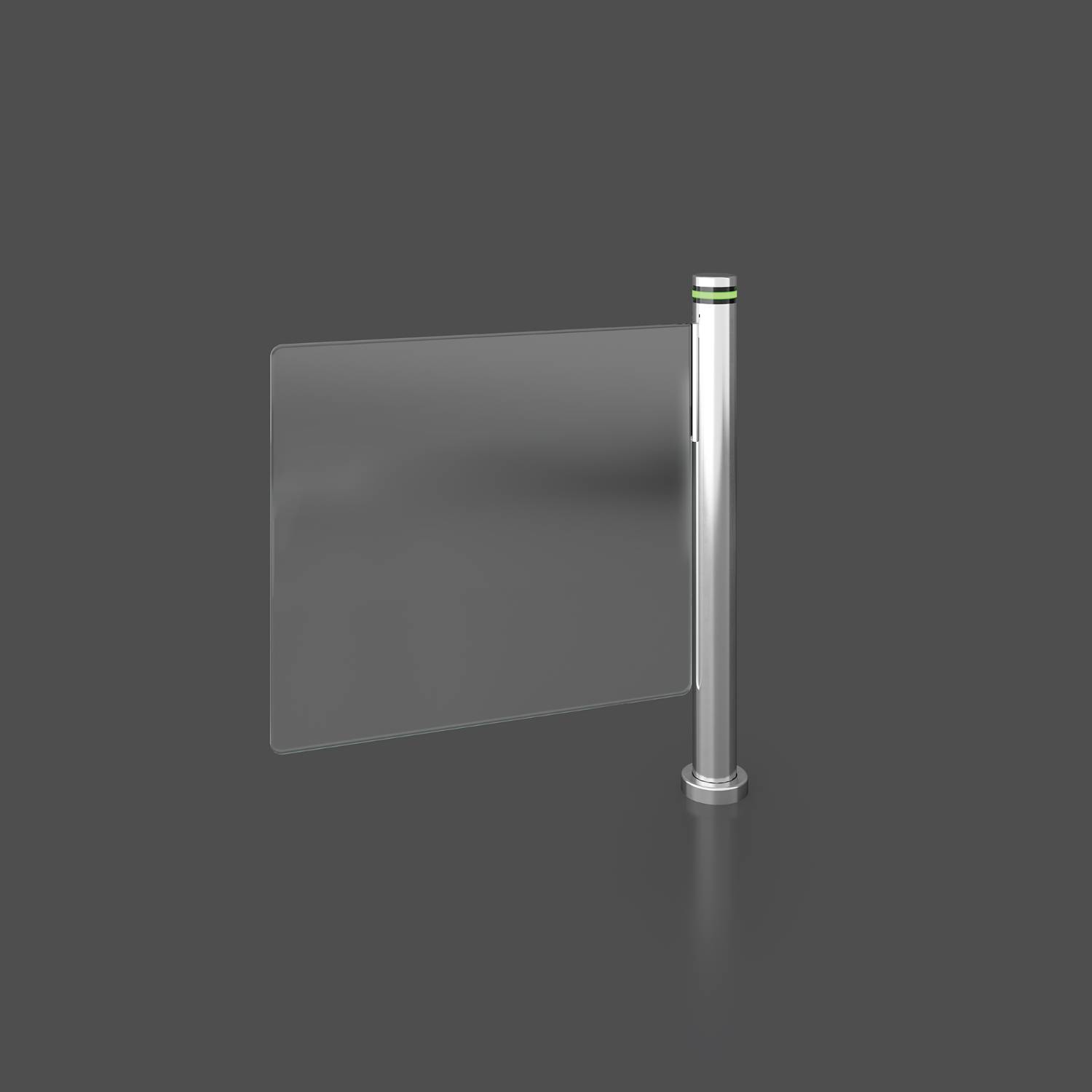

Single wing access gate, constructed from stainless steel and a single glass panel.


Features and benefits:

  • The access gate is designed to manage bi-directional traffic with ease, using smart, intuitive technology to guide each visitor through to their destination without delay or inconvenience.
  • It is easy to use; no training is required, and the intuitive LED lights make the user experience and walk-through simple. The various light signals for functions such as: in use, authorized, standby, including pulsing and quick blinking to further guide visitors through.
  • Transparent, unobtrusive.
  •  Low carbon footprint - Low power usage compared to standard industry usage.
  • Easy installation.
  • Frameless, Modern Design with invisible clamp.
  • Smooth Swinging-motion Glass Wing.
  • Wide passage for disabled access and large goods delivery.
  • Emergency egress (lock and motor disengage allowing free passage).
  • Additional flexible options available to ‘Level Up’.

General information

Color

Silver

Finish

-

Manufacturer guidance

Available in stainless finish.

Custom option also available by request to check with the manufacturer.

Material

Steel

Glass

Length

940 mm

980 mm

Width

958 mm

Guidance for specification option:

Overall width (including mounting flange)

Height

1035 mm

Guidance for specification option:

Overall height | Post height

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Extended warranty available on request.

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary
Pr_30_59_34_80 Stainless steel gates

SpeedSpec

08200 Doors and Door Frames

NATSPEC National Classification System

0451 Windows and Glazed Doors

0451a Windows and Glazed Doors – Metal

Specification data - Glazed half-height turnstiles

Material

Stainless steel post.

Leaves

-

Type

Tempered glass.

Thickness

10 mm.

Finish

-

Colour

Colour options available by special request.

Operation

Electrical.

Mechanical.

Dimensions

-

Overall width

958 mm (including mounting flange)

Overall height

1035 mm

Passage width

915 mm.

Control units

-

Device acceptance

Access control system pedestal.

Card reader.

Operational voltage

100–240 V AC, 50/60 Hz.

Capacity

30 people per minute.

Gate width

845 mm

Guidance for specification option:

Wing width

Door wing height

940 mm

Guidance for specification option:

Standard wing height.

980 mm

Guidance for specification option:

Level up height option.

Post height

1035 mm

Posts

90 mm.

Guidance for specification option:

Post width.

Accessories

Boon touch | External control panel | Remote monitoring | Lifeline Boost

Accessible design

DDA compliant.

Power

100–240 V AC, 50/60 Hz.

Operating temperature range

-20°C to +50°C.

Weight

48 kg

Power consumption

Operating - 20 W | Stationary - 9 W

Safety features

Fail Safe Operation

Fire Alarm Connection

Emergency Opening at 90°

Security level

Level 1.

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

QA Certificate

QA Certificate

Certificate of Approval - ISO 14001:2015

QA Certificate

QA Certificate

Certificate of Approval - ISO 9001:2015

Literature

Winglock Swing - single wing access gate

Winglock Swing - single wing access gate

Touchless solutions - safer, more efficient contactless pathways

Touchless solutions - safer, more efficient contactless pathways

Touchless - automatic security entrances

Touchless - automatic security entrances

Boon Edam Australia - your entry experts

Boon Edam Australia - your entry experts

Boontouch - remote control access for safer entry

Boontouch - remote control access for safer entry

Case studies

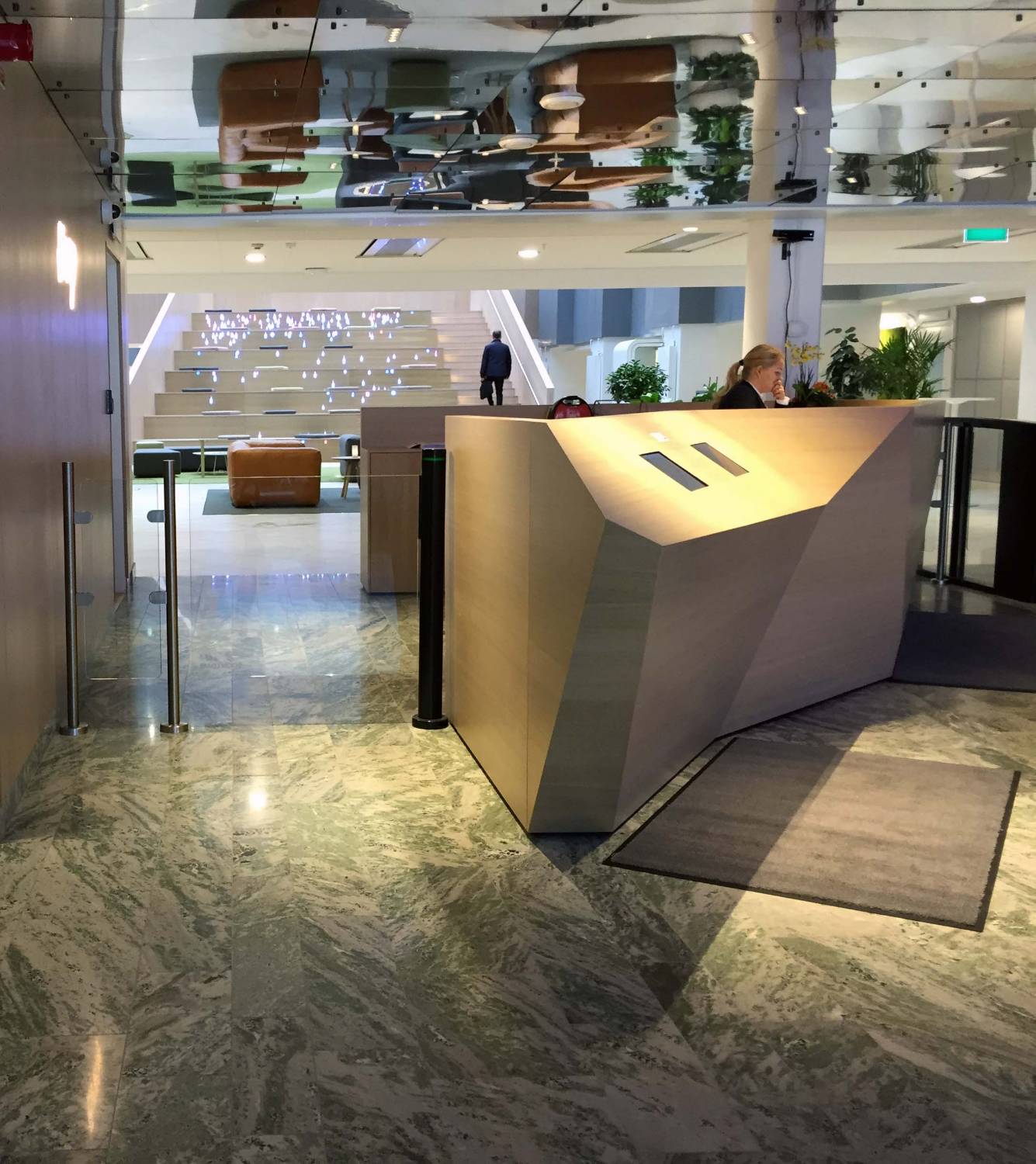

Liberty Global
