ACO Drain KlassikDrain - Trench Drain
Verified by manufacturer 5 months ago
ACO KlassikDrain pre-manufactured trench drains for commercial and industrial applications
Application
Urban street applications, pedestrian or vehicular plazas, stormwater handling around buildings, vehicle service and storage facilities, ports and airports, as threshold between wet and dry areas
Description
ACO KlassikDrain trench drains consist of cast polymer concrete bodies with either galvanized steel or stainless steel wearing edges.
ACO Drain is available in 50mm, 100mm, 200mm and 300mm internal widths, and are available with up to 40m (130ft) of built-in continuous slope. ACO drainage systems offer light to heavy duty solutions for traffic ranging from pedestrians to jumbo jets.
There are a variety of grates manufactured from different materials, hole patterns and load ratings.
General information
Color | Beige Black Grey |
Finish | Other |
Material | Other |
Shape | Other |
Length | 1000 mm |
Warranty description | One year |
CMS | 22 13 19.13 Sanitary Drains Primary22 14 26.19 Facility Trench Drains 22 14 26 Facility Storm Drains 22 14 00 Facility Storm Drainage |
SKU Code | varies |
Specification data - Sanitary Drains
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Other |
Recyclability | Product can be recycled as material backfill |
Literature

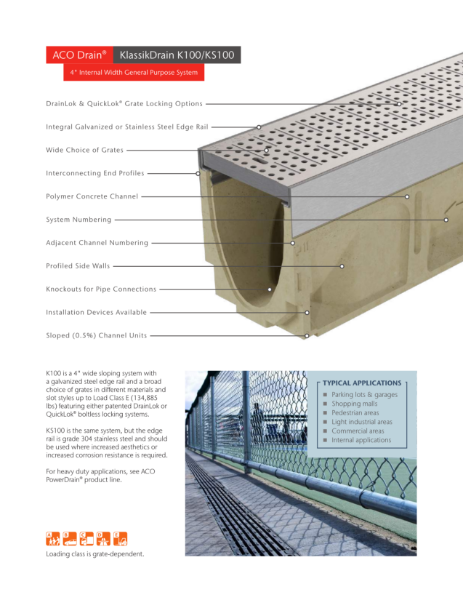

ACO KlasikDrain K100Cutsheet
Case studies
Casa Loma, Toronto
