BioWall - In-duct UVC disinfection unit

Verified by manufacturer over a year ago

Sanuvox

In-duct UVC air disinfection unit for commercial/industrial applications

Jump to:
BOS
1-888-726-8869 Website

Application

Air purification system for commercial or industrial ducted HVAC systems.

Description

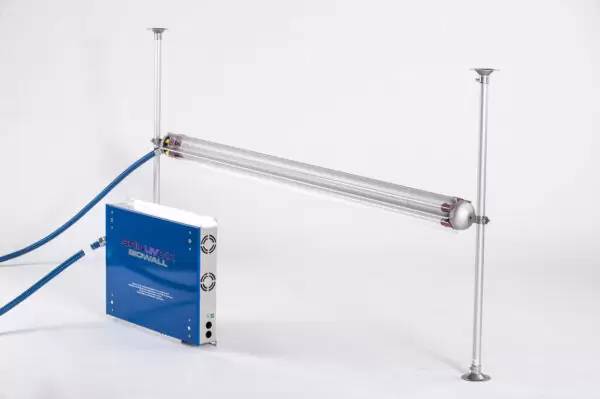

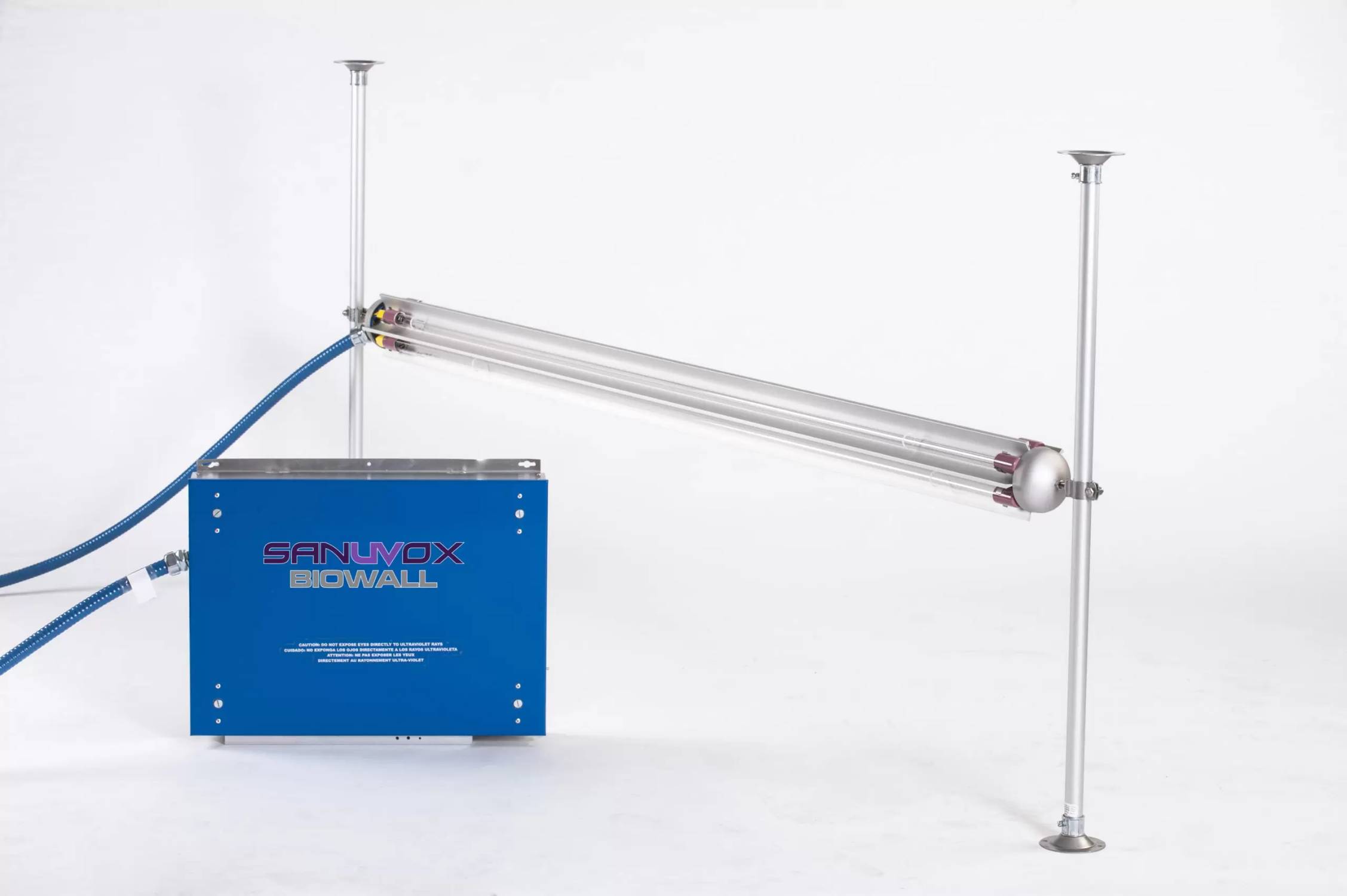

The Bio-Wall™ UV air purification system is installed in the return or supply ducting of an HVAC system to purify airborne mold, virus, bacteria and carbon based odors. The system is comprised of 5 lamps, each secured in their own parabolic aluminum reflector for maximum UV intensity. In addition, the  Bio-Wall™ is installed parallel to airflow to achieve the maximum amount of contact time with the airborne contaminants.


This patented system can be utilized for even the largest air handler units and is sized using Sanuvox proprietary sizing software specific to the facility. It is ideal for any building equipped with a HVAC system.


  • Available in 18”, 24″, 30″, 40″, 50″ and 60″ lengths
  • 5 high-intensity 19mm UV lamps
  • Equipped with BMS dry contacts to work with any building automation system
  • BioSmart Screen: an optional touch screen for unit real time operational status

General information

Color

Silver

Blue

Warranty description

-

Manufacturer guidance

  • Lamps: 2 years
  • Ballast: 15 years

CMS

23 05 66 Anti-Microbial Ultraviolet Emitters for HVAC Ducts and EquipmentPrimary

Product range

In-duct Air Disinfection Systems

Specification data - Anti-Microbial Ultraviolet Emitters for HVAC Ducts and Equipment

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

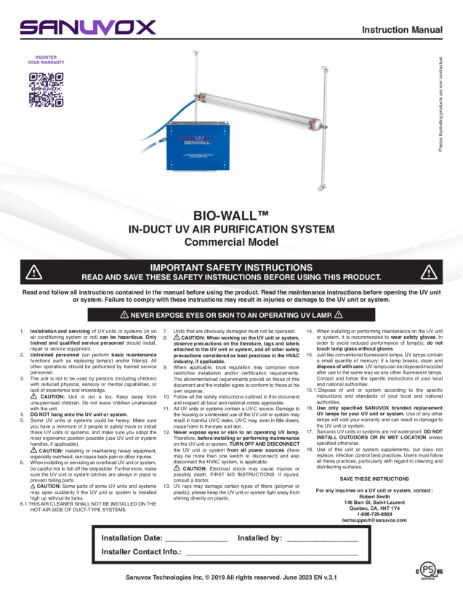

Instruction manual for the BioWall (EN)

Instruction manual for the BioWall (EN)

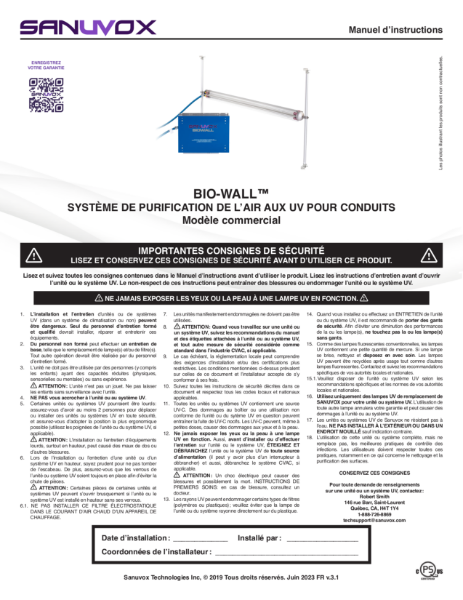

Manuel d'instruction du BioWall (FR)

Manuel d'instruction du BioWall (FR)

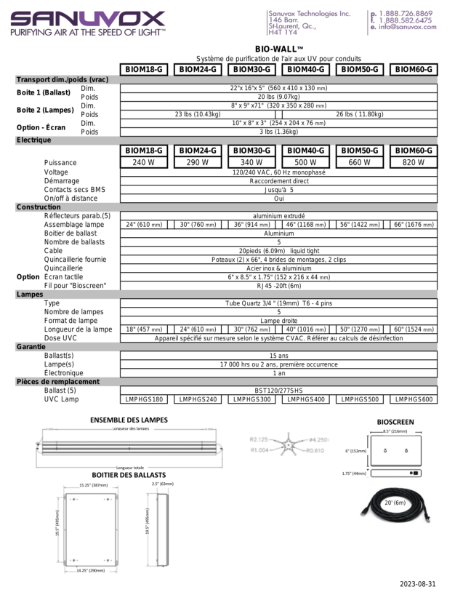

Spécifications techniques du BioWall (FR)

Spécifications techniques du BioWall (FR)

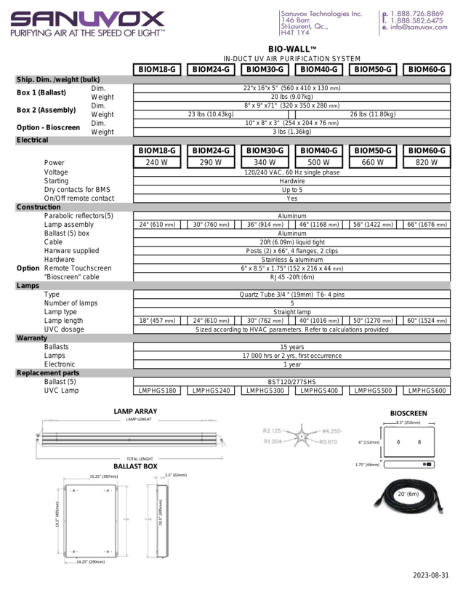

SpecSheet for BioWall (EN)

SpecSheet for BioWall (EN)
