BUILT UP ROOF VENT (BUR) - FLAT TOP - gas vent
Verified by manufacturer 4 months ago
Certificate of Approval
Certificate type

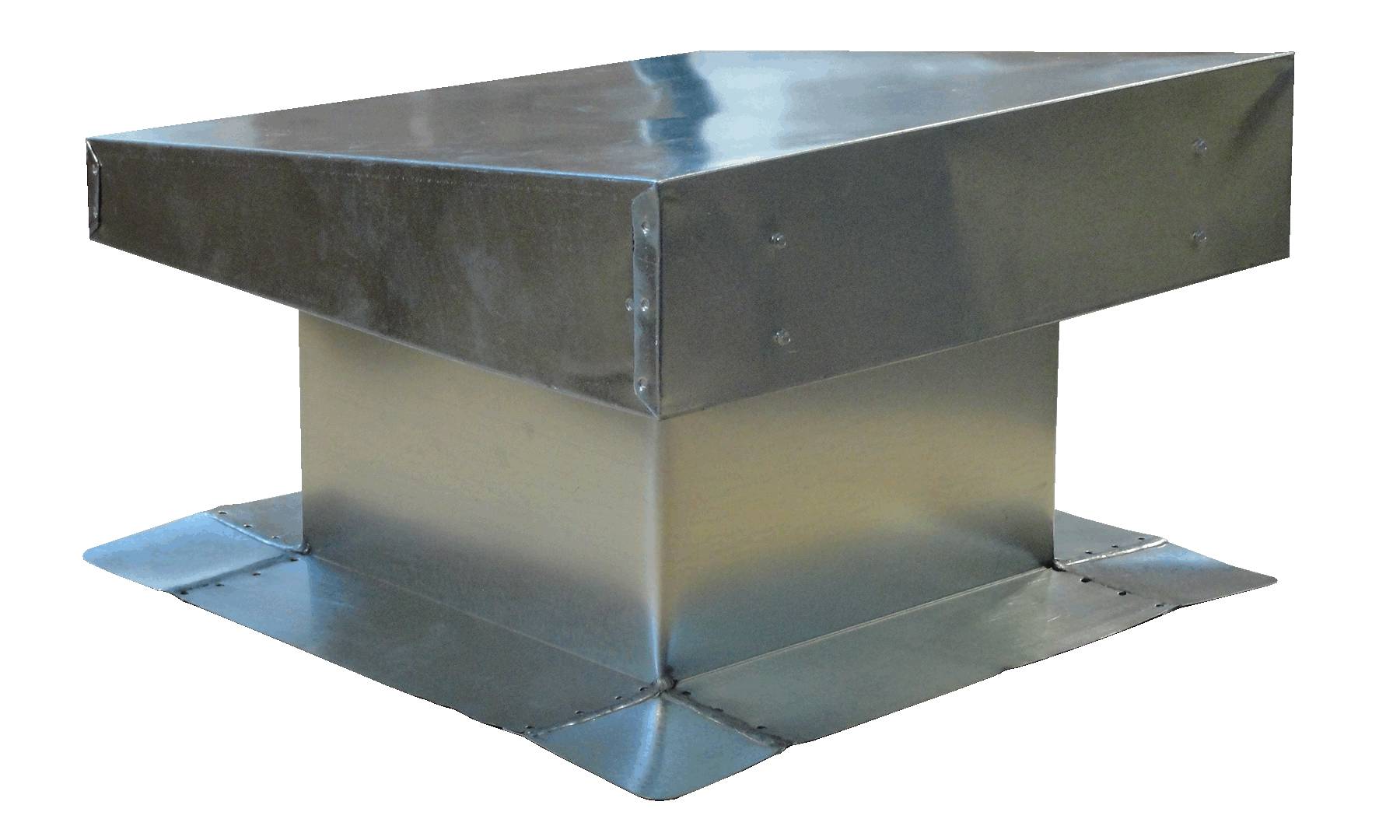

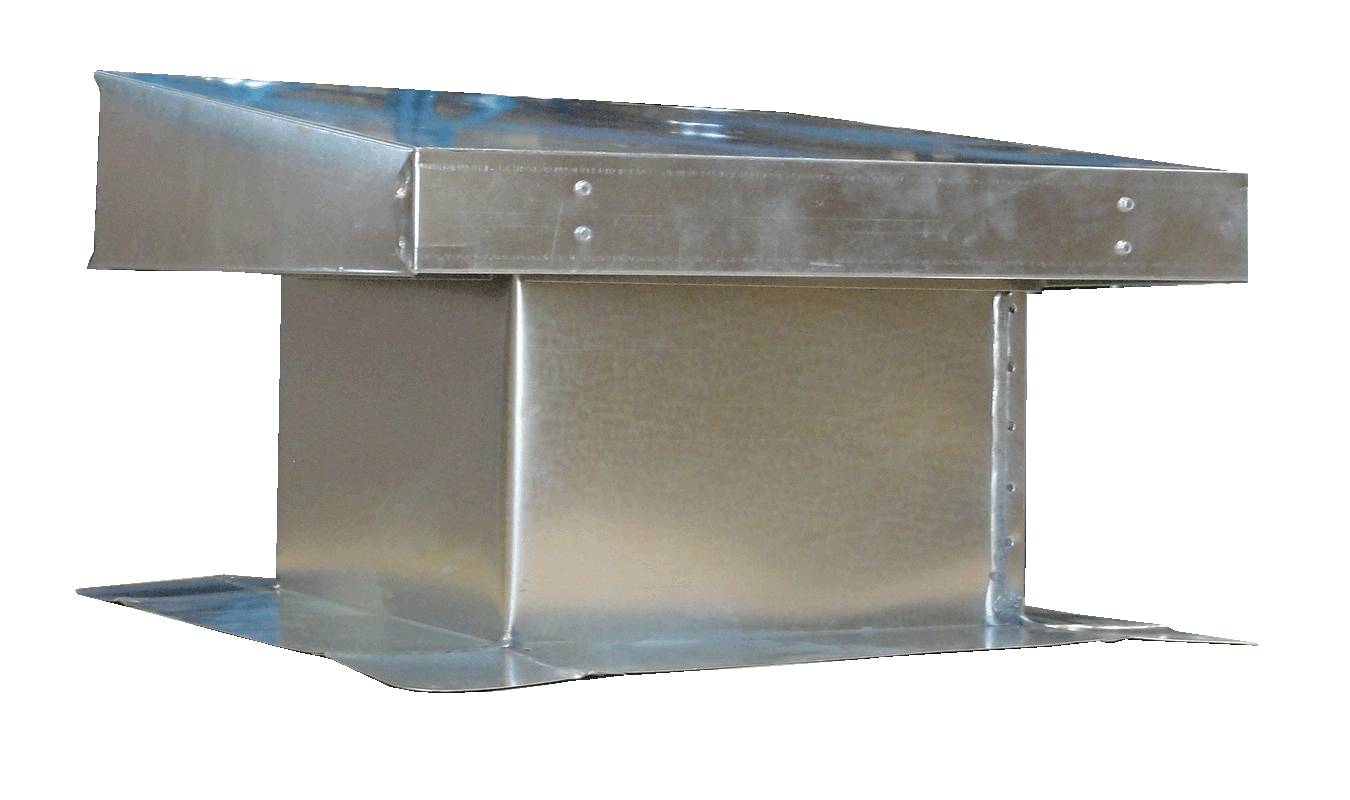

Menzies Square BUR Flat Top Vent for flat roof application. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Application
Roof Vent
Description
This vent has internal reinforcements that are so strong a person can stand on top of them.It’s a lower-profile vent that is excellent for HVAC on industrial projects and roofing ventilation needs. Available in TPO Direct Weld™.
- ONE FULL SQUARE FOOT of air flow.
- Net free area is 144 Sq In (.0929030 Sq. M.).
- Flat top BUR has slight pitch for water runoff.
- Internal reinforcements for great strength (see photo).
- 26 gauge galvanized metal.
- HOTWELDED for high heat application.
- Listed to CSA CAN3-A93.
- Also available in TPO Direct Weld™.
- 10-Year Warranty
General information
Finish | Galvanized |
Material | Steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS |
Sustainability data
Material | Steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
 3Ds Max | - | 1 |
 DWG | - | 1 |
 SketchUp | - | 1 |
Third party certifications
Certificate of Approval
CAN3-A93 Natural Airflow Ventilators for Buildings
Literature
MATERIAL SAFETY DATA SHEET - GALVANIZED

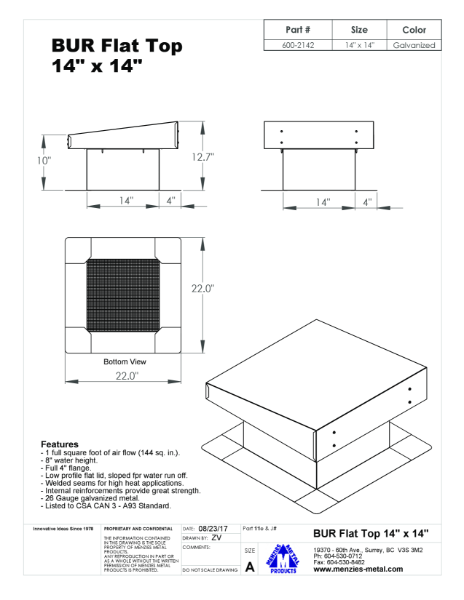

TECHNICAL DRAWING - BUR FLAT TOP
