Fire Alarm - electrical cable
Verified by manufacturer 2 months ago
Northern Cables FIRE ALARM Cable is available in FPLP (Fire Alarm Power Limited Plenum Rated) and FPL (Fire Alarm Power Limited)
Description
The FIRE ALARM Cable is a flexible interlocked aluminum armoured cable approved for use in open and concealed wiring in dry locations at 75 C Please refer to NFPA 75 for acceptable uses.
All FIRE ALARM Cable is UL approved and manufactured, in sizes 18 AWG through 12 AWG, with two insulated copper conductor and a green ground or four insulated copper conductors and a green ground. Size 18 AWG and 16 AWG are insulated with PVC/Nylon (Thermoplastic fixture nylon coated) Type TFN. The 14 AWG trough 12 AWG are insulated with PVC/Nylon (Thermoplastic high heat resistant nylon coated) Type THHN.
- UL 1424
- UL 2256
- UL 66
- UL 83
- RoHS
General information
CMS | 27 15 01.19 Fire Alarm Communications Conductors and Cables Primary28 31 00.01 Multiplex Fire Alarm System |
NMS | 27 10 05 Structured Cabling for Communications Systems 28 31 00.01 Multiplex Fire Alarm System 28 46 00 Fire Detection and Alarm |
NMS | 27 10 05 Câblage structuré pour réseaux de télécommunications 28 31 00.01 Système multiplex d'alarme incendie 28 46 00 Détection et alarme incendie |
Literature

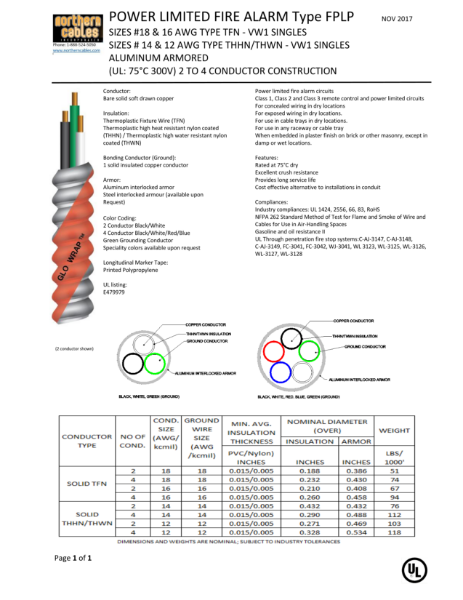

FPLP Solid Copper Circuit Size 300 Volts
Similar products from Northern Cables
Armoured Fire Alarm - electrical cable
