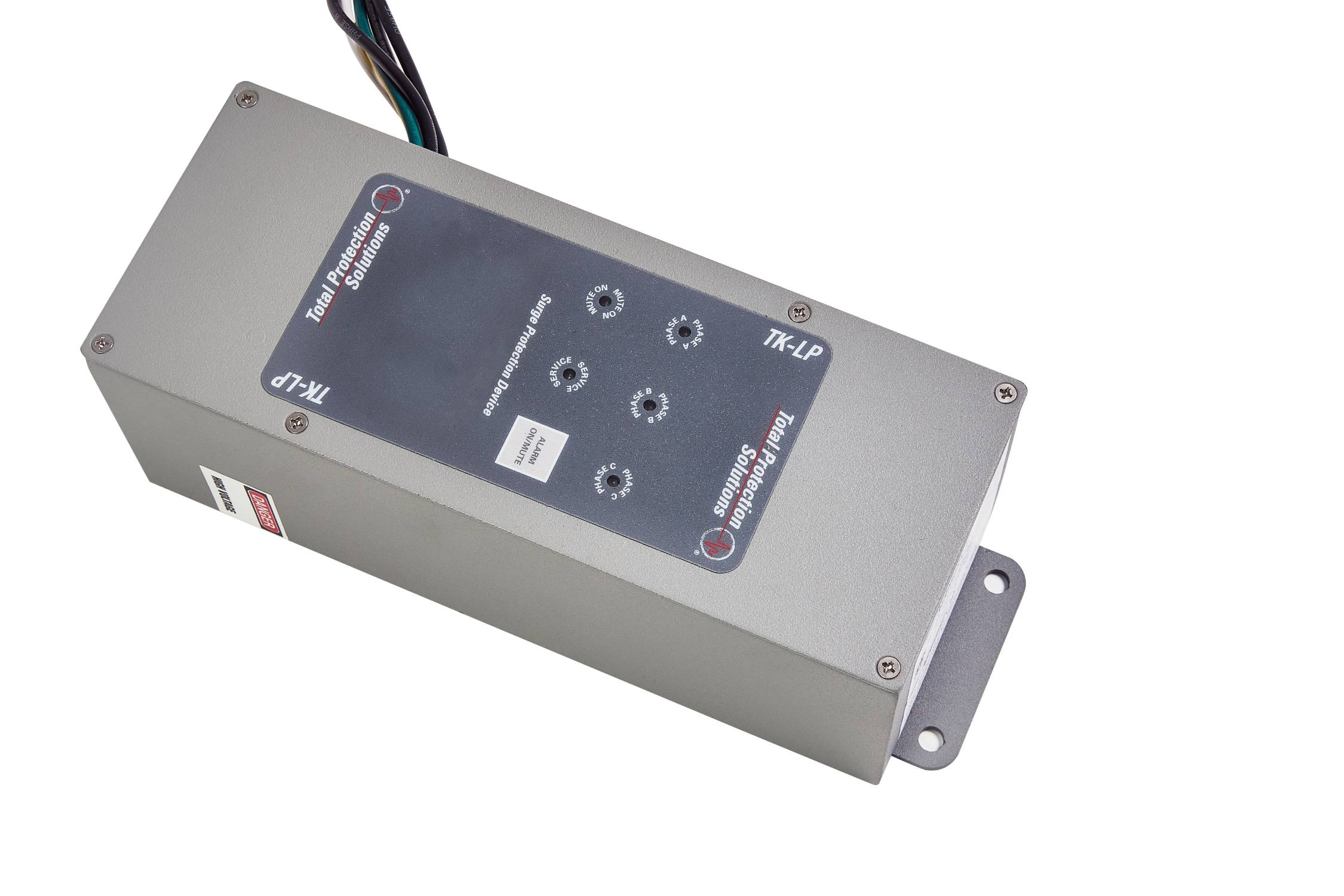

LowProfile™ LP080 - Surge Protection Device
Verified by manufacturer over a year ago
ULC Listed
Certificate type
Product Summary LowProfile™ models protect electrical systems and sensitive electronics from voltage transients.
Application
Product Applications
Industries:
- Commercial
- Institutional
- Engineering
Applications:
- Flush mount panels
- Lighting Panels
- Branch Panels
- Critical Load Centre
Description
Product Description
LowProfile™ models with a 4-inch depth allow for in-wall flush mount applications. This slimline design ensures minimum lead length for maximum performance
LowProfile™ Series has 2 suppression technologies: MOV's and enhanced transient filtering.
All LowProfile™ Series units are UL1449 current edition
certified. Also suitable for Type 1 and Type 2 applications.
Standard Features of this Product:
-30 Year free replacement warranty, including direct lightning strikes and any other electrical anomaly
-Third party performance tested
-Enhanced Transient Filtering
-Form C Dry Contact Relays
-Status indicator LED's
-Audible Alarm and Silence Button
-Component Level Fusing
-EMI/RFI Filter
General information
Color | Grey |
Finish | Painted |
Material | Metal |
Shape | Rectangle |
Length | 260 mm |
Width | 102 mm |
Height | 102 mm |
Warranty description | 30 year |
CMS |
Specification data - Surge Protective Devices for Low-Voltage Electrical Power Circuits
Sustainability data
Country of product manufacture | United States |
Recyclability | RoHS Compliant |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |

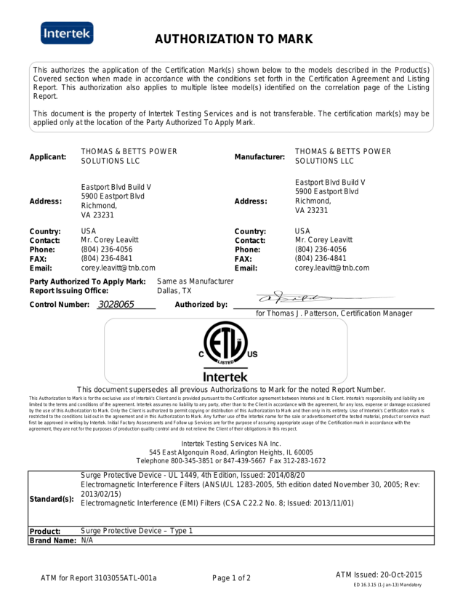

Third party certifications
ULC Listed
LP 080 UL 1449
Literature

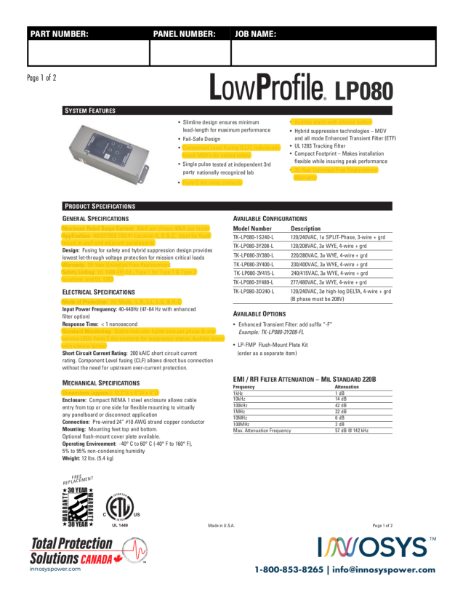

LP080 Datasheet

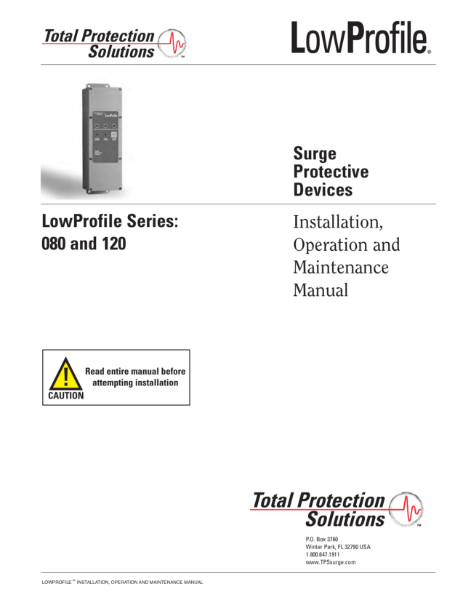

LP080 Installation Manual
