Mapelastic™ AquaDefense - Fluid-Applied Waterproofing Membrane

Verified by manufacturer 9 months ago

Mapei Inc. Third party certifications:
  • SCS Indoor Advantage™ Gold

    SCS Indoor Advantage™ Gold

    Certificate type

Premium Waterproofing and Crack-Isolation Membrane

Jump to:
800 361 9309 Website

Application

• Residential and commercial interior/exterior floors, walls and ceilings

• Industrial interior floors and walls

 • Tub and shower surrounds: Bathrooms; kitchens; food prep, dishwashing, servery and cafeteria areas; countertops; and laundry rooms

 • Residential and commercial submerged applications: Freshwater pools, fountains and water features (completely covered by ceramic tile)

• Cantilevered balconies and decks over unoccupied space (see the “Limitations” section below)

 • Balconies and decks over occupied space when used in conjunction with a primary waterproofing membrane • Steam rooms and steam showers (refer to TCNA handbook’s sections SR613 and SR614, or TTMAC 319SR and 321SR)

• Meets ASTM E96 Procedure E for a low-perm waterproof membrane • In-plane crack isolation up to 1/8" (3 mm) over nonstructural cracks

 • MAPEI's Reinforcing Fabric is available but optional for use on coves, corners and field application

Description

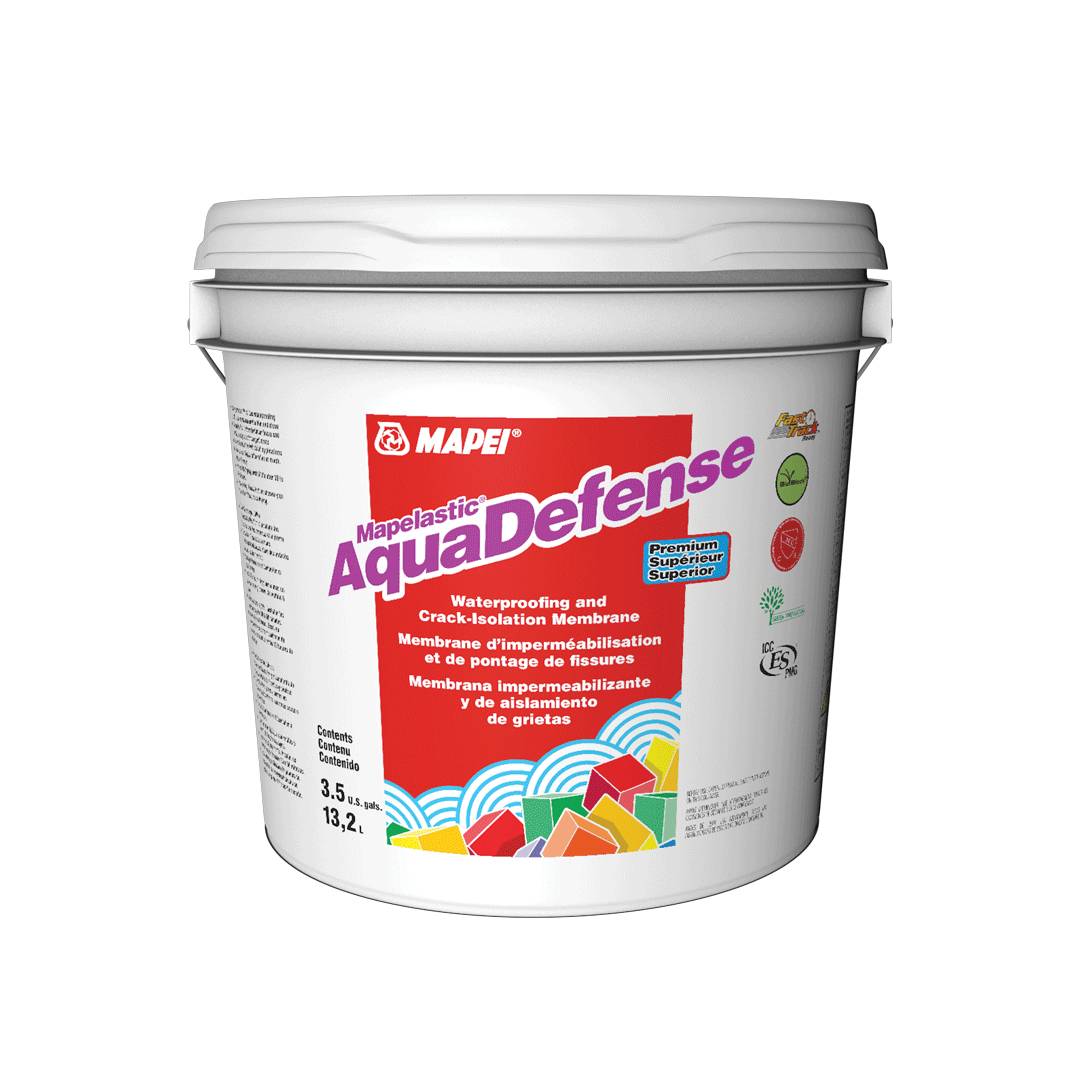

Mapelastic AquaDefense is a premixed, advanced liquid-rubber, extremely quick-drying waterproofing and crack-isolation membrane for installation under ceramic tile or stone in residential, commercial and industrial environments. Mapelastic AquaDefense provides a thin, continuous barrier to protect adjacent rooms and floors below from water damage. For common problem areas like coves, corners, cracks and drains, it can be combined with MAPEI’s optional Reinforcing Fabric or Mapeband™ accessories (cove roll and drain flash) to provide additional protection. Mapelastic AquaDefense dries after about 30 to 50 minutes and is then ready to receive any MAPEI polymer or epoxy mortar. Mapelastic AquaDefense can be flood-tested after 12 hours of drying time, is IAPMO-listed for use as a shower-pan liner, and exceeds ANSI A118.10 and ANSI A118.12 standards.


• ANSI: Exceeds A118.10 standard (Waterproofing Membranes for Thin-Set Ceramic Tile) and A118.12 standard (Crack-Isolation Membranes for ThinSet Ceramic Tile)

• ASTM: C627 (Robinson) service rating of Extra Heavy

• ASTM: E96, Procedure E (Desiccant Method) at 100°F (37.8°C), meeting

requirements of < 0.5 perms

• IAPMO: Listed for use as shower-pan liner

• IAPMO File #3996

• ICC Evaluation Service Report ESR 3474

General information

CMS

09 30 00 TilingPrimary

Product range

Membranes

Specification data - Tiling

Third party certifications

SCS Indoor Advantage™ Gold

SCS Indoor Advantage™ Gold

Indoor Advantage™ Gold SCS-IAQ-06041

Literature

Tile & Stone Installation Systems

Tile & Stone Installation Systems

Watertight Protection

Watertight Protection

Mapelastic™ AquaDefense

Mapelastic™ AquaDefense
