Description

Copper Conductor

Northern Cables Inc. manufactures NMD90 with cross-linked polyethylene insulation and an FT1 PVC jacket. NMD90 can be used in dry locations where it cannot be subject to mechanical damage. This product is available from #8 to #2 in two, three, or four copper conductors.


  • CSA C22.2 No. 48
  • 300 volt
  • 90 C
  • FT1



Aluminum Conductors

Cables are manufactured with three 8000 series aluminum ACM conductors insulated with RW90 cross-linked polyethylene rated at 300 volts from #8 to #2 AWG. The bonding conductor is bare aluminum. These cables are made identically to the copper based ones.


  • CSA C22.2 No. 48
  • 300 volt
  • 90 C
  • -25 C
  • FT1


Literature

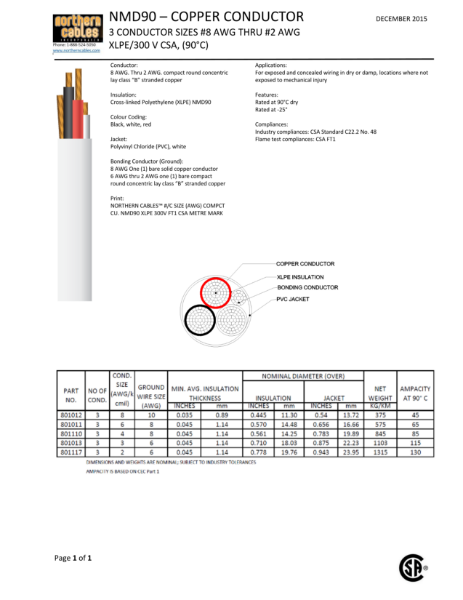

NMD90 Size 8 to 2 Copper 300 Volts

NMD90 Size 8 to 2 Copper 300 Volts

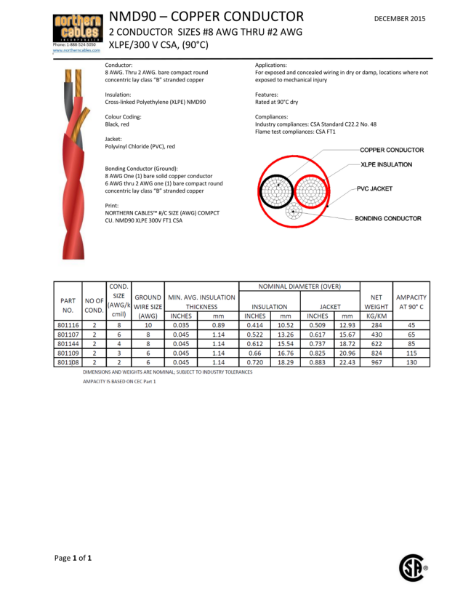

NMD90 Size 8 to 2 Copper (Black & Red) 300 Volts

NMD90 Size 8 to 2 Copper (Black & Red) 300 Volts

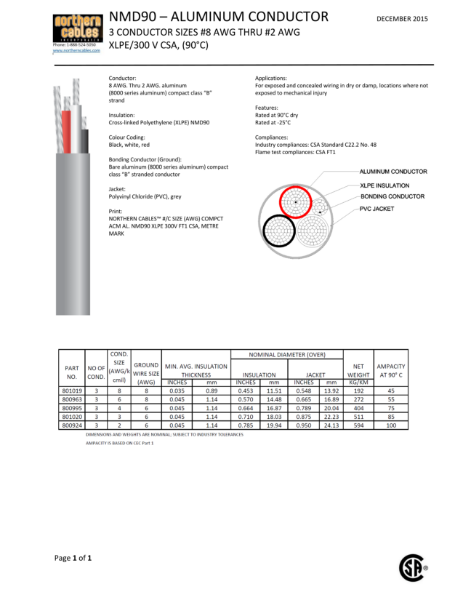

NMD90 Size 8 to 2 Aluminum 300 Volts

NMD90 Size 8 to 2 Aluminum 300 Volts
