ROOF ANCHOR FLASHING

Verified by manufacturer 3 months ago

Menzies Metal

Roof Anchor Flashing for flat roof application. This kit is designed to flash and seal roof anchors.

Jump to:
1-800-665-8840 Website

Application

Roof Anchor Flashing

Description

  • Spun from one piece of heavy gauge aluminum, no seams.
  • Raised center to accommodate anchor plate, stud and bolts (see technical drawing).
  • Rubber top to ensure a water tight seal to the anchor.
  • Fits sizes 1 1/4″ (32mm), 1 1/2″ (38mm), 2″ (51mm), 3″ (76mm) and 4″ (102mm) (see technical drawing).
  • Available in TPO Direct Weld™.
  • Anchor by others.
  • 10-Year Warranty.


General information

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

CMS

07 72 00 Roof AccessoriesPrimary

Sustainability data

Material

Aluminium

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Literature

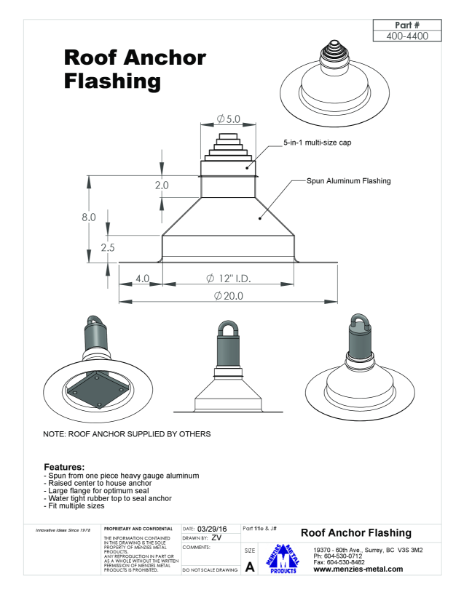

TECHNICAL DRAWING - ROOF ANCHOR FLASHING

TECHNICAL DRAWING - ROOF ANCHOR FLASHING

MATERIALS SAFETY DATA SHEET CU/AL

MATERIALS SAFETY DATA SHEET CU/AL
